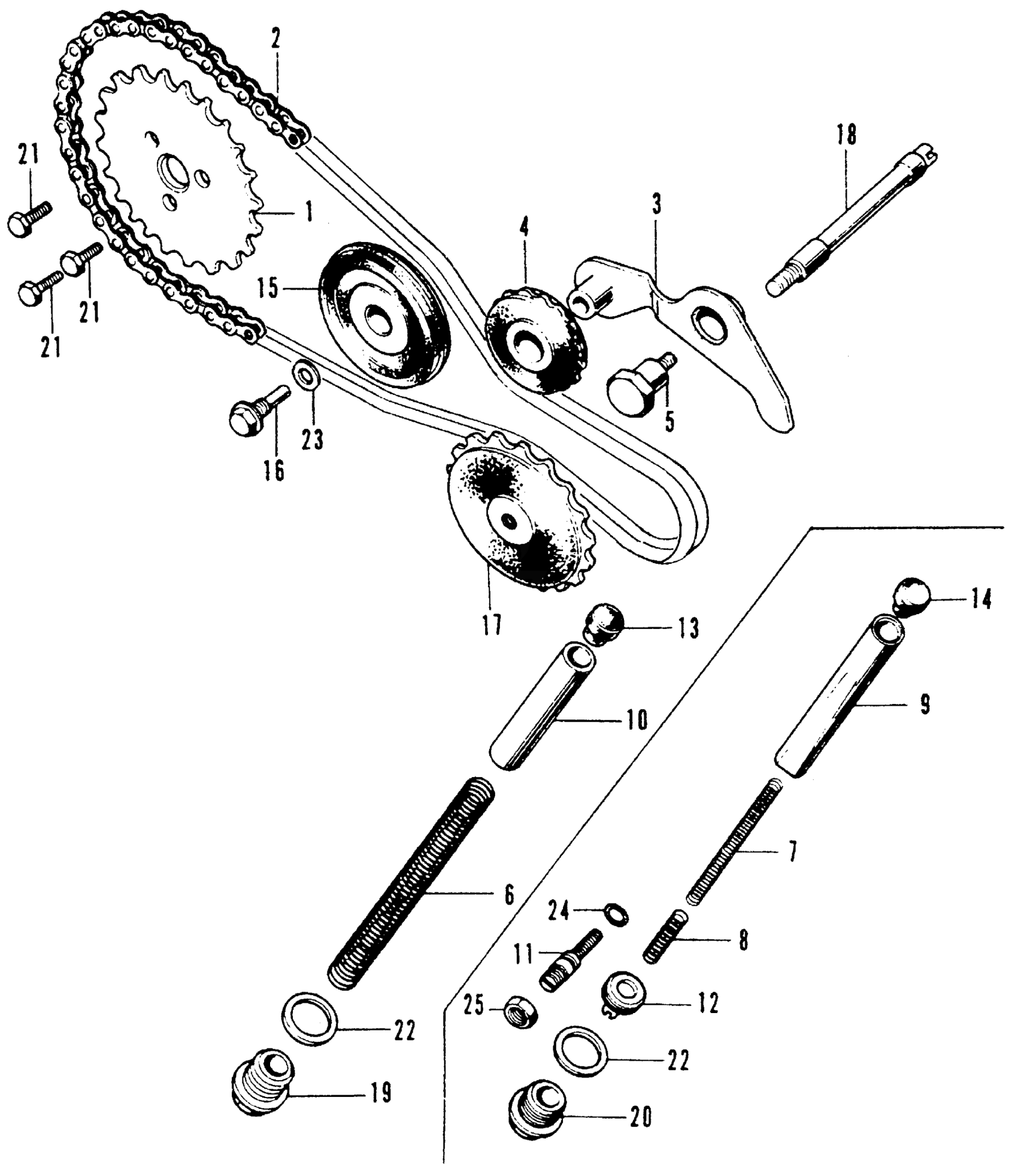

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$17.46

1

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$17.46

1

SPROCKET, CAM (28T)

14321-035-700

$17.46

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-000.

14401-115-010

$29.93

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$29.93

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$29.93

3

ARM, CAM CHAIN TENSIONER This part replaces 14500-035-010.

14500-035-020

$28.03

3

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

4

ROLLER, CAM CHAIN TENSIONER This part replaces 14502-035-010.

14502-086-000

$16.33

4

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33

5

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

6

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-035-010

Unavailable

10

ROD, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14551-035-020

Unavailable

13

RUBBER, CAM CHAIN TENSIONER PUSH ROD HEAD

14566-035-000

Unavailable

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-035-010.

14610-086-010

$20.24

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$20.24

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

16

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

16

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

17

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$23.34

18

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-035-060

Unavailable

19

BOLT, SEALING (14MM)

90081-035-000

$4.24

21

BOLT, KNOCK (5MM)

90083-035-010

$2.07

22

WASHER, SEALING (14MM)

90441-035-000

$2.39

23

WASHER (8MM)

90481-035-000

$1.87
