1972 Yamaha SL433 Track Suspension Wheel Diagram

← All diagrams

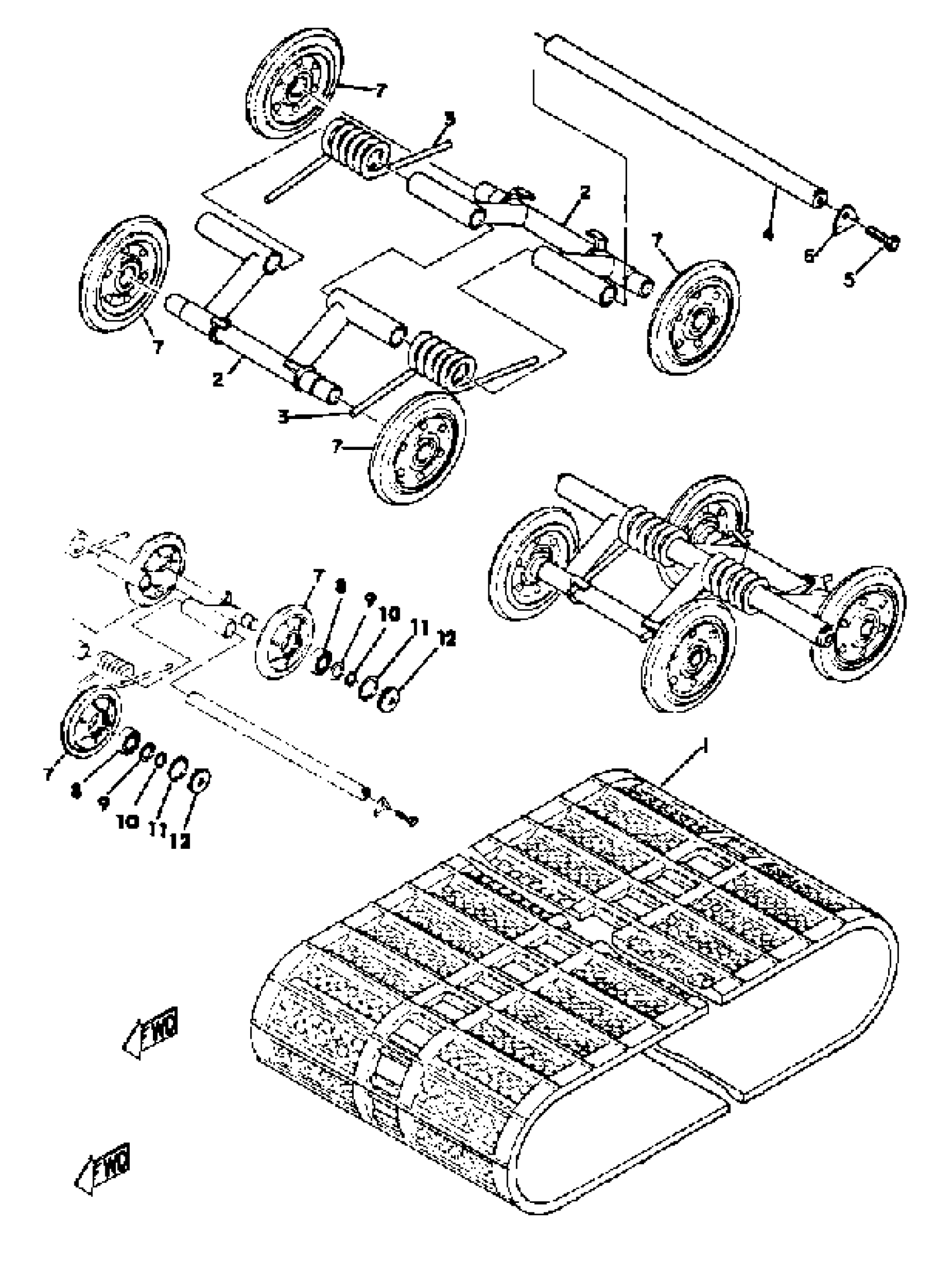

Find the part on the Track Suspension Wheel diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Track Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

(861-47110-00-00)

1
Out of stock

2

ARM, PIVOT 1

(806-47331-01-00)

1
Out of stock

3

SPRING, TORSION

90508-65089-00

1
Out of stock

4

SHAFT, PIVOT

(802-47337-00-00)

1
Out of stock

5

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

6

WASHER, LOCK

(806-47347-00-00)

1
Out of stock

7

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

8

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

9

WASHER PLATE 820473590000

90201-20272-00

1

$5.88

In stock

10

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

11

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

12

CAP, WHEEL

818-47317-01-00

1
Out of stock
