1972 Yamaha SL433 Track Drive Diagram

← All diagrams

Find the part on the Track Drive diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

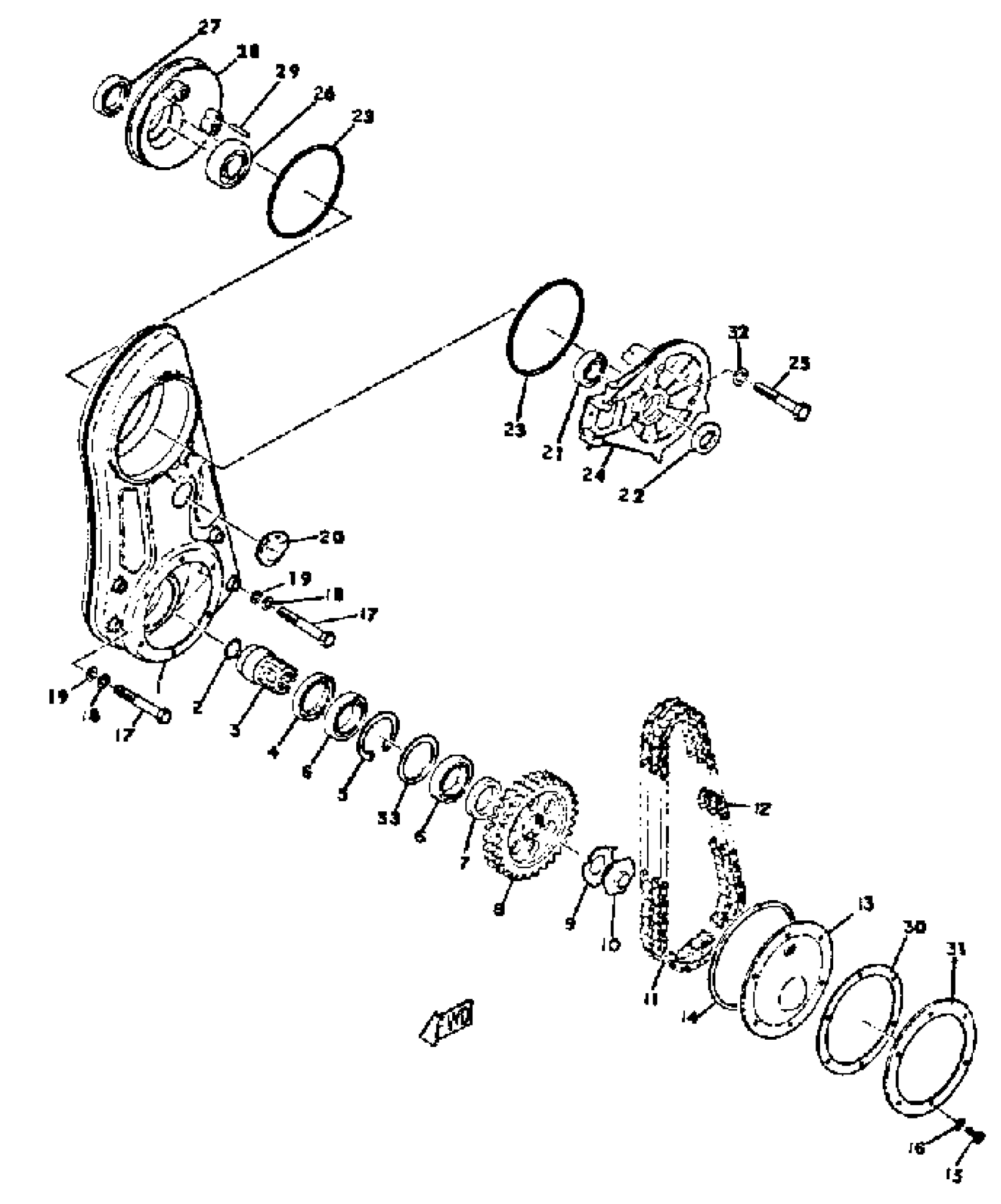

1972 Yamaha SL433 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(820-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(810-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

COLLAR

90387-35205-00

1
Out of stock

8

SPROCKET, CHN DRVN

(802-47548-40-00)

1
Out of stock

8

SPROCKET, CHN DRVN

802-47548-50-00

1
Out of stock

8

SPROCKET, CHN DRVN

(802-47548-60-00)

1
Out of stock

9

SPRING, BELLEVILLE

821-47582-00-00

1
Out of stock

10

BOLT

90109-24203-00

1
Out of stock

11

CHAIN (DK425-2 62L)

94804-25062-00

1
Out of stock

12

. JOINT CHAIN

94904-25001-00

1
Out of stock

13

CAP, HOUSING

(821-47543-00-00)

1
Out of stock

14

RING, HOUSING

(806-47558-00-00)

1
Out of stock

15

SCREW

90143-05004-00

—

$2.20

In stock

16

WASHER, SEAL

90210-05005-00

1
Out of stock

17

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

CAP 2

(810-47559-00-00)

1
Out of stock

21

—

$31.64

In stock

22

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

23

O-RING

93211-13109-00

1
Out of stock

24

HOUSING, SEC SHAFT

(818-47561-00-00)

1
Out of stock

25

BOLT (663)

97013-08060-00

—

$3.25

In stock

26

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

27

OIL SEAL (30X47X7-810)

93102-30083-00

—

$11.08

In stock

28

HOUSING, SEC SHAFT

810-47562-00-00

1
Out of stock

29

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

30

GASKET

821-47544-00-00

1
Out of stock

31

PLATE

(821-47591-00-00)

1
Out of stock

32

WASHER (821)

90210-08002-00

—

$5.68

In stock

33

SPACER

90560-35050-00

1
Out of stock
