1972 Yamaha SL433 Pump Drive - Gear Diagram

← All diagrams

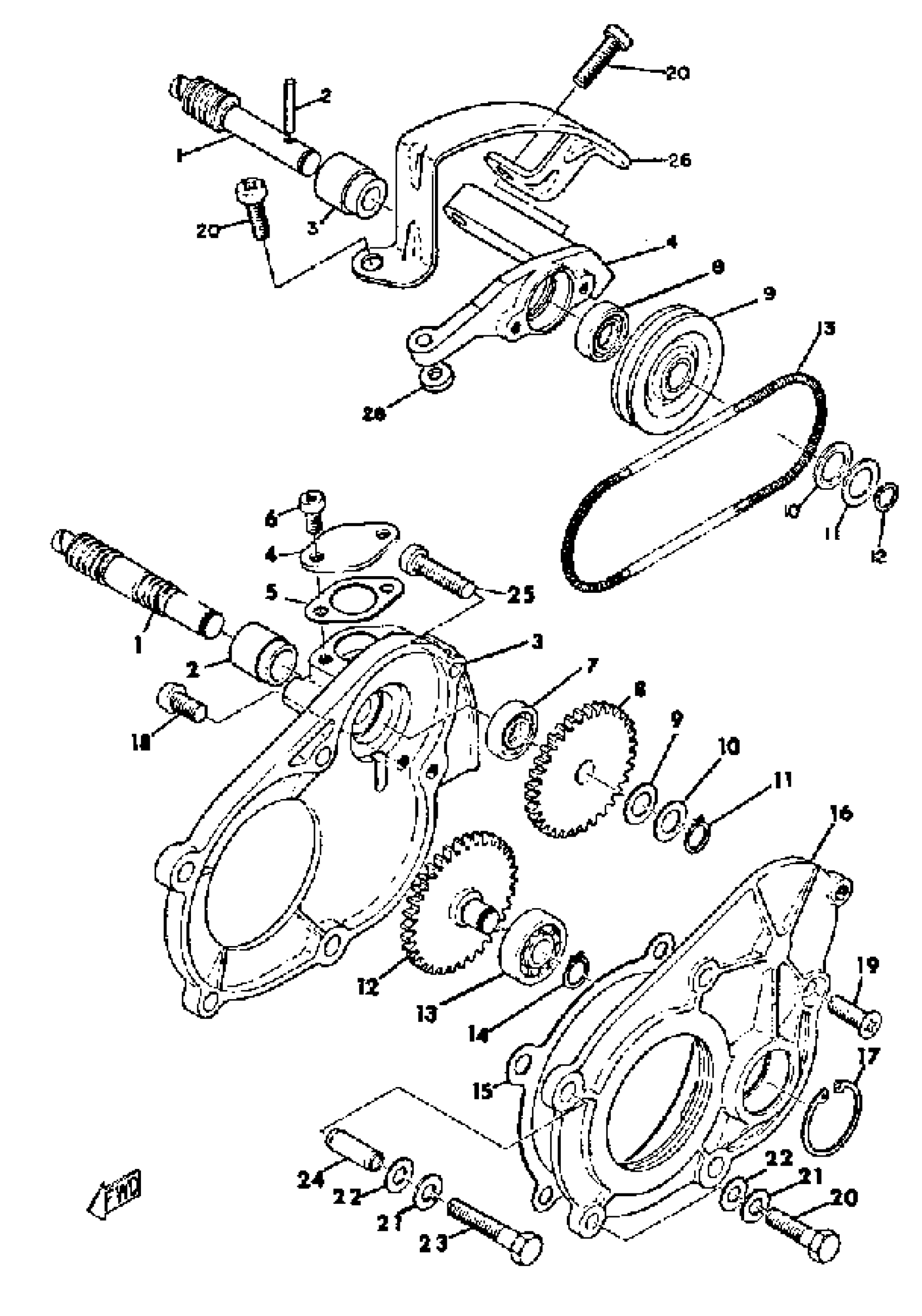

Find the part on the Pump Drive - Gear diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

826-13175-00-00

1
Out of stock

2

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

3

COVER, OIL PUMP

(821-15416-01-00)

1
Out of stock

4

CAP, HOUSING

824-17819-00-00

1
Out of stock

5

GASKET

821-17818-02-00

1

$5.66

In stock

6

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

9

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

10

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

11

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

12

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

13

—

$29.35

In stock

14

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

15

GASKET, O/PMP CVR 1

821-15456-00-00

1
Out of stock

16

COVER, OIL PUMP R

(821-15426-01-00)

1
Out of stock

17

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

18

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

19

SCREW, FLAT

98707-06014-00

—
Out of stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

24

PIN, DOWEL

91810-18022-00

1
Out of stock

25

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock
