1972 Yamaha SL433 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

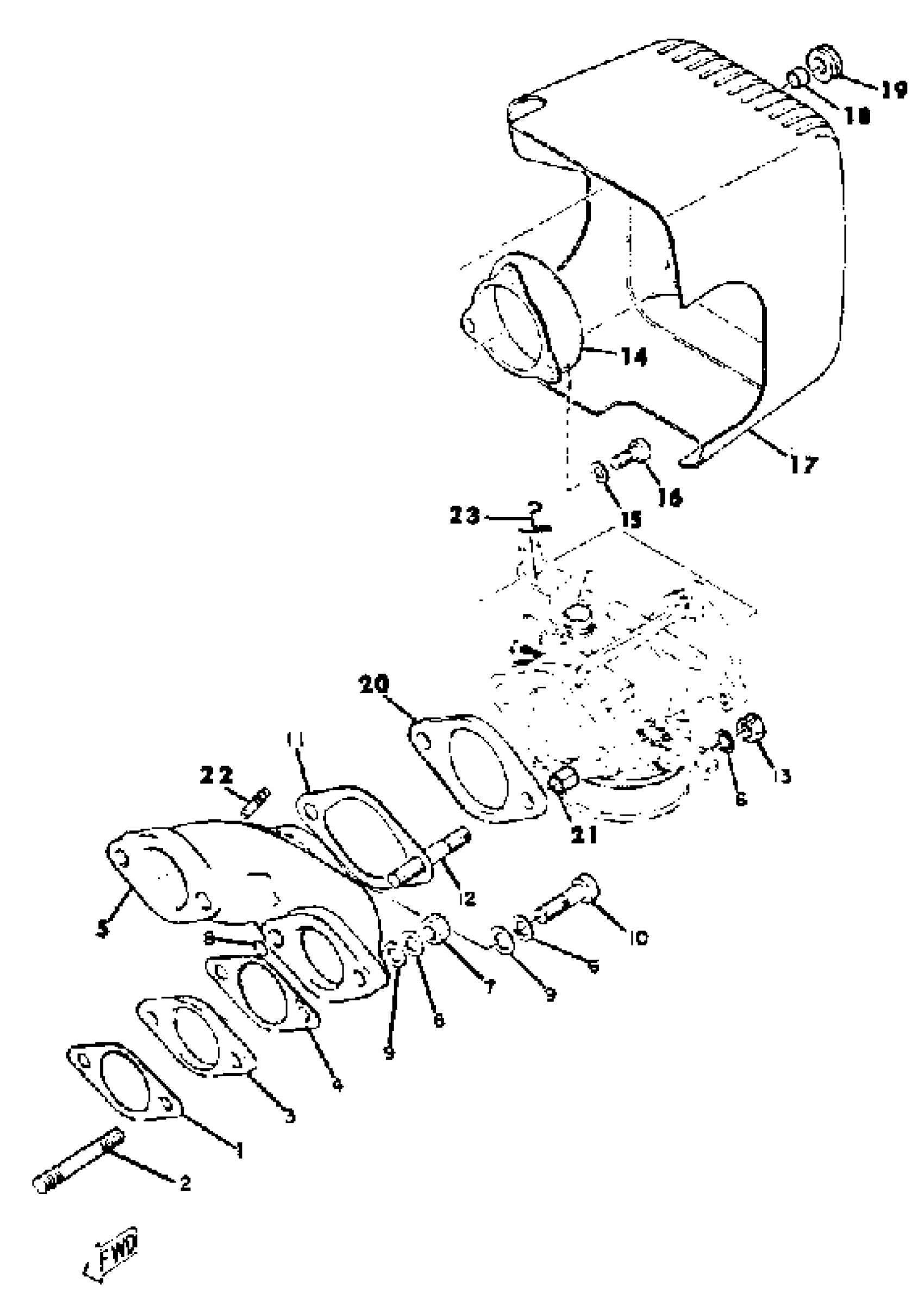

1972 Yamaha SL433 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,MANIFOLD

811-13556-09-00

1
Out of stock

2

BOLT, STUD

90116-08050-00

1
Out of stock

3

MANIFOLD, INTAKE

(8F1-13555-00-00)

1
Out of stock

4

GASKET

811-13563-09-00

1
Out of stock

5

JOINT, CARBURETOR

(826-13565-00-00)

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

O-RING (11M)

93210-07540-00

1

$5.77

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

11

GASKET

810-13566-09-00

1
Out of stock

12

BOLT, STUD

(90116-08045-00)

1
Out of stock

13

. NUT

95380-08700-00

1

$3.07

In stock

14

FUNNEL

(810-14479-00-00)

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

SILENCER, INTAKE 2

(812-14441-00-00)

1
Out of stock

18

COLLAR 8121444900

90387-06023-00

—

$7.66

In stock

19

GROMMET

(90480-13015-00)

1
Out of stock

20

JOINT, CARBURETOR

824-13585-00-00

1
Out of stock

21

SPACER

(810-13576-00-00)

1
Out of stock

22

NOZZLE

824-13552-00-00

1
Out of stock

23

CLAMP, THROTTLE

(833-41222-00-00)

1
Out of stock
