1969 Yamaha SL396 OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

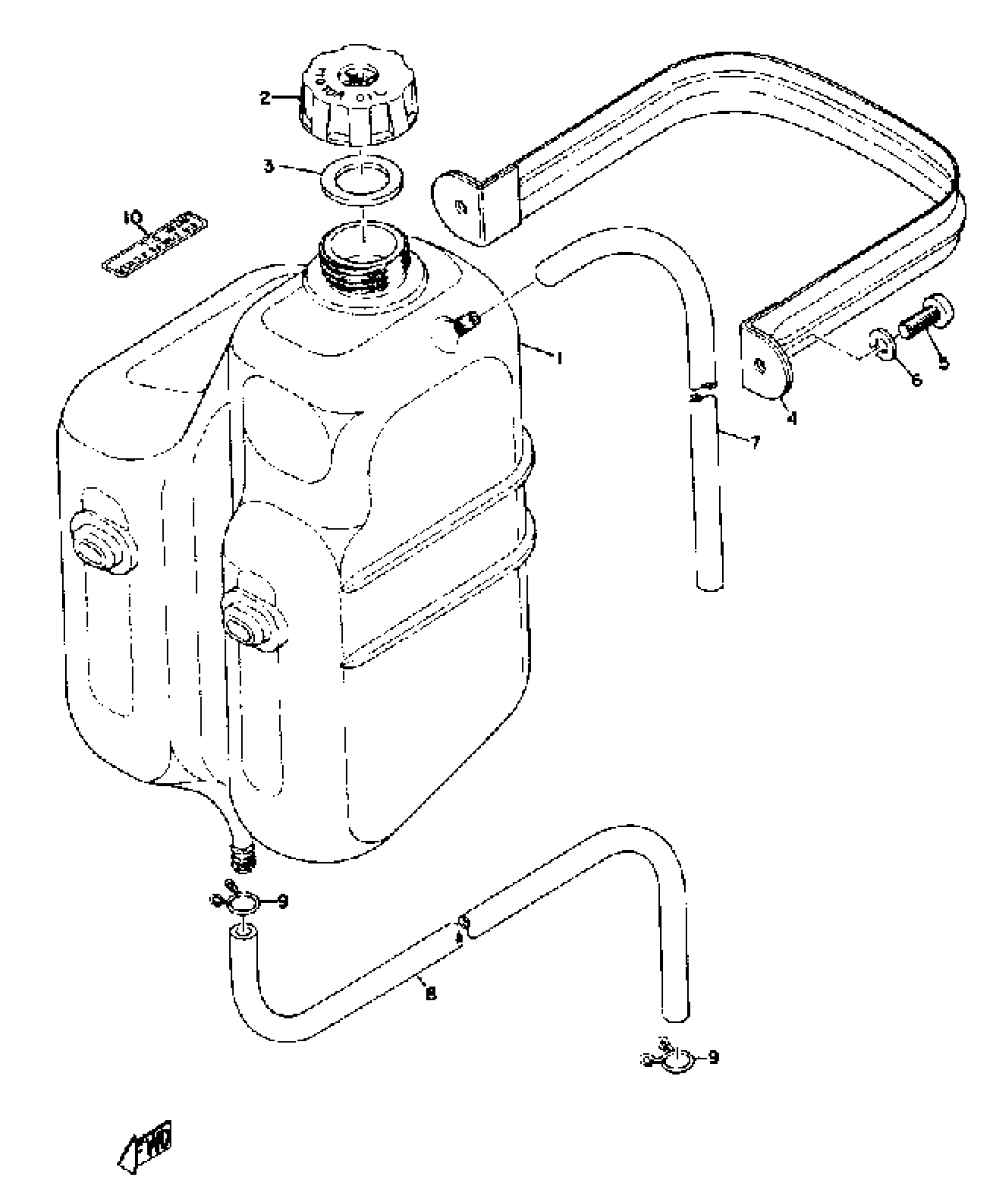

1969 Yamaha SL396 OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

807-21751-00-00

1
Out of stock

2

BODY, CAP

296-21771-62-00

1
Out of stock

3

GASKET, CAP

296-21772-00-00

1
Out of stock

4

BAND, TANK FITTING

(807-21776-00-00)

1
Out of stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PIPE, OIL TNK BRTHR

(807-21745-00-00)

1
Out of stock

8

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

9

CLAMP, HOSE

90460-09001-00

1
Out of stock

10

ORNAMENT

(802-21793-00-00)

1
Out of stock
