1969 Yamaha SL396 Engine Cowl Diagram

← All diagrams

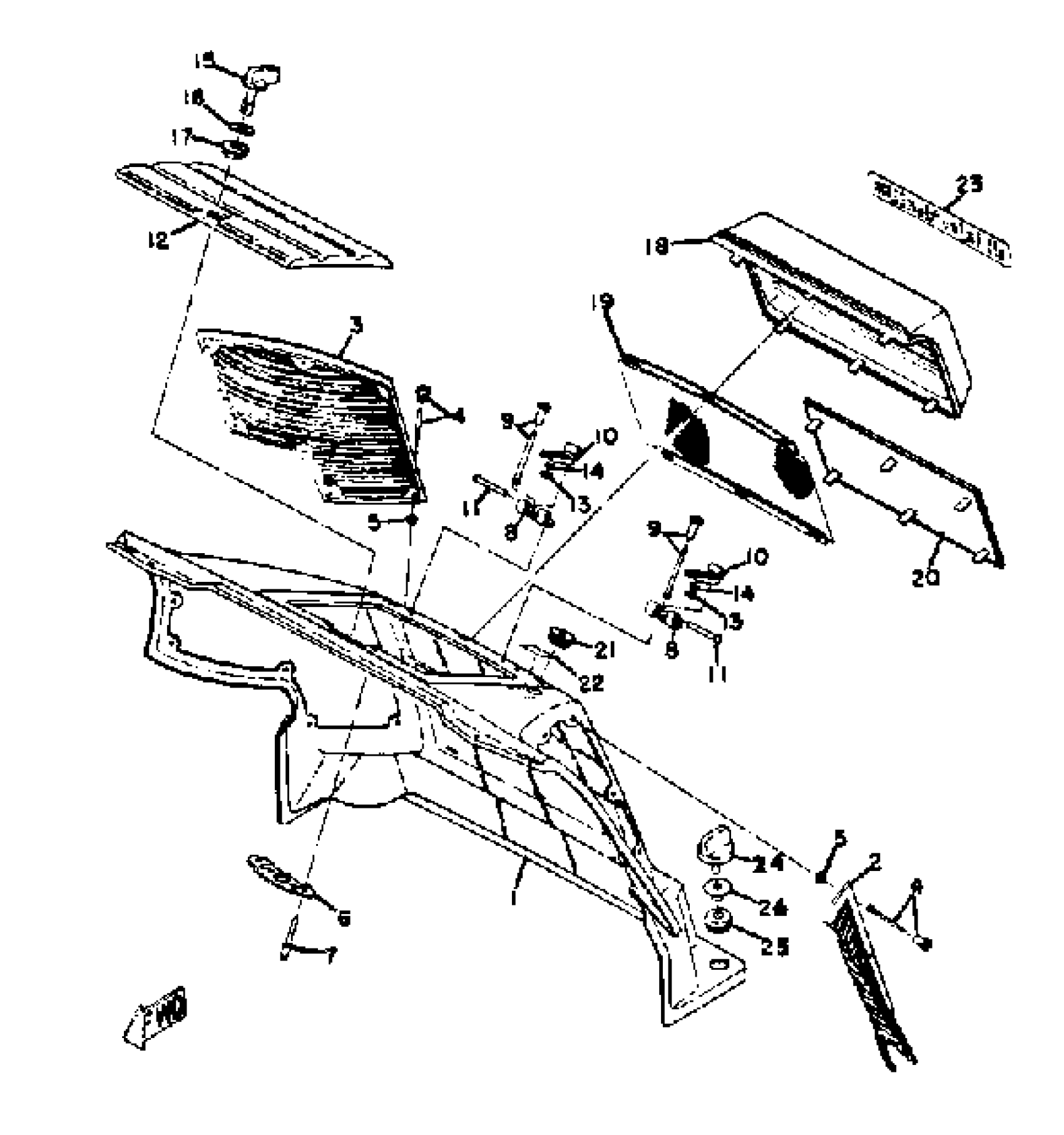

Find the part on the Engine Cowl diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL396 Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE COWL ASSEMBLY

(807-77401-00-00)

1
Out of stock

2

LOUVER 1

(807-77441-00-00)

1
Out of stock

3

LOUVER 2

(807-77442-00-00)

1
Out of stock

4

RIVET 3

(807-77469-00-00)

1
Out of stock

5

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

6

BRACKET 4

(807-77424-00-00)

1
Out of stock

7

RIVET, BLIND

(90267-40028-00)

1
Out of stock

8

HINGE ASSEMBLY

(807-77470-00-00)

1
Out of stock

9

RIVET 1

(807-77449-00-00)

1
Out of stock

12

LID, ENGINE COWL

(807-77425-00-00)

1
Out of stock

13

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

FASTNER

(806-42753-00-00)

1
Out of stock

16

WASHER 6154275100

90201-08103-00

—

$5.51

In stock

17

BUSHING

(615-42746-00-00)

1
Out of stock

18

LOUVER 3

(807-77443-00-00)

1
Out of stock

19

LOUVER 4

(807-77444-00-00)

1
Out of stock

20

PAD, ENGINE COWL

(807-77415-00-00)

1
Out of stock

21

GROMMET 2

(807-77432-00-00)

1
Out of stock

22

INDICATOR, CHOKE

(807-77455-00-00)

1
Out of stock

23

EMBLEM 1

(807-77351-00-00)

1
Out of stock

24

KNOB

(807-77445-00-00)

1
Out of stock

25

GROMMET 1

(807-77431-00-00)

1
Out of stock

26

COLLAR (90387-066J9)

90387-064W1-00

1
Out of stock
