OIL PUMP

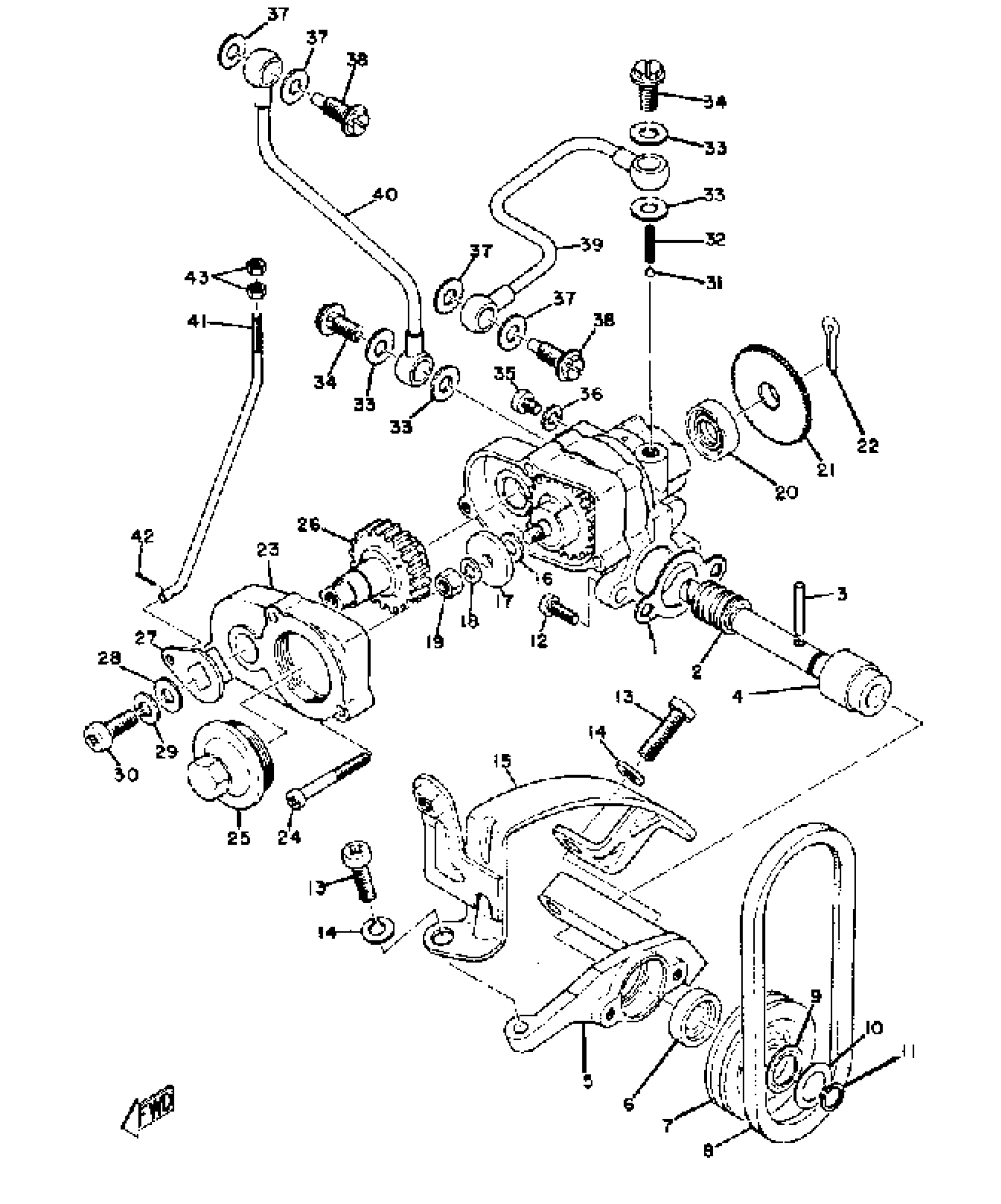

1969 Yamaha SL396 OIL Pump Diagram
Find the part on the OIL Pump diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
GASKET, PUMP CASE
126-13116-01-00
1
OIL PUMP ASSEMBLY
(807-13101-01-00)
2
SHAFT, WORM
(802-13175-00-00)
3
PIN,DOWEL (137)
93603-22028-00
4
METAL, WORM SHAFT OUTER
137-13176-00-00
5
BRACKET, PUMP
(807-13199-00-00)
7
GEAR, PUMP DRIVE
807-13178-00-00
8
BELT (810-13189-00)
808-13189-00-00
15
PROTECTOR, DRIVE
(806-77323-00-00)
18
YBS67-5 WASHER, SPRING
92990-05100-00
21
PLATE, STARTER
(137-13128-00-00)
23
COVER, AJST PULLEY
(807-13146-00-00)
25
CAP, PUMP CASE
(807-13143-00-00)
26
GEAR, PUMP CONTROL
(807-13154-00-00)
27
LEVER, PUMP CONTROL
(807-13156-00-00)
32
SPRING, COMPRESSION
(90501-02017-00)
36
GASKET 137131870000
90430-04004-00
38
BOLT, UNION
90401-06011-00
39
PIPE, DELIVERY 1
(807-13161-00-00)
40
PIPE, DELIVERY 2
(807-13171-00-00)
41
ROD, PUMP CONTROL
(807-13157-00-00)
