1968 Yamaha SL351 Track Drive Diagram

← All diagrams

Find the part on the Track Drive diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

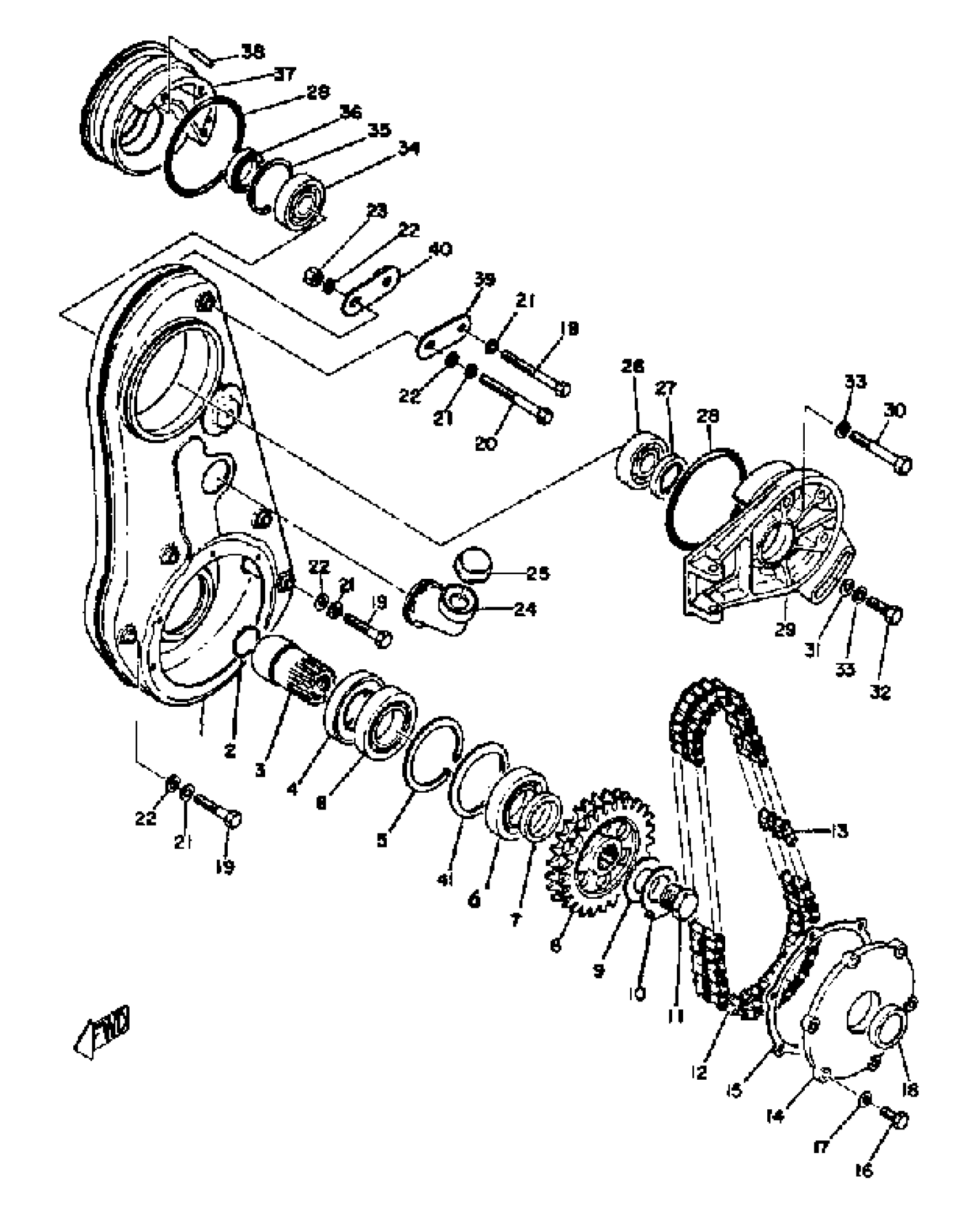

1968 Yamaha SL351 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(802-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

TOOL

UNA-VAILA-BL-EI

1
Out of stock

4

OIL SEAL (40X62X9-447)

93105-40018-00

—

$18.77

In stock

4

OIL SEAL, SWO-TYPE

(93110-40001-00)

1
Out of stock

5

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

6

BEARING (B6007)

93306-00701-00

1
Out of stock

7

COLLAR

90387-35205-00

1
Out of stock

8

SPROCKET, CHN DRVN

(802-47548-00-00)

1
Out of stock

8

SPROCKET, CHN DRVN

(802-47548-40-00)

1
Out of stock

8

SPROCKET, CHN DRVN

802-47548-50-00

1
Out of stock

9

WASHER

(802-47555-00-00)

1
Out of stock

10

WASHER, SEAL

90210-05005-00

1
Out of stock

11

BOLT (802-47553-00)

90109-24202-00

1
Out of stock

12

CHAIN (DK425-2 62L)

94804-25062-00

1
Out of stock

12

CHAIN

(94804-25064-00)

1
Out of stock

13

. JOINT CHAIN

94904-25001-00

1
Out of stock

14

CAP, HOUSING

(802-47543-00-00)

1
Out of stock

15

GASKET

802-47544-00-00

1
Out of stock

16

BOLT HEXAGON

97001-05018-00

1
Out of stock

17

WASHER, SEAL

90210-05005-00

1
Out of stock

18

LEVEL, OIL

(801-47546-00-00)

1
Out of stock

19

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

20

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

FILLER, OIL

(801-47547-00-00)

1
Out of stock

25

BREATHER

(204-15371-00-00)

1
Out of stock

26

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

27

OIL SEAL(7EG)

93102-25360-00

—

$12.20

In stock

28

O-RING (802)

93210-99103-00

—
Out of stock

29

TOOL

UNA-VAILA-BL-EI

1
Out of stock

30

BOLT (663)

97013-08060-00

—

$3.25

In stock

31

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

32

BOLT (682)

97013-08025-00

—

$6.80

In stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

—

$54.91

In stock

35

CIRCLIP(26H)

99009-52500-00

—

$10.74

In stock

36

OIL SEAL, SD-TYPE

93102-32055-00

1
Out of stock

37

TOOL

UNA-VAILA-BL-EI

1
Out of stock

38

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

39

TOOL

UNA-VAILA-BL-EI

1
Out of stock

40

TOOL

UNA-VAILA-BL-EI

1
Out of stock

41

SPACER

90560-35050-00

1
Out of stock
