1968 Yamaha SL351 Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

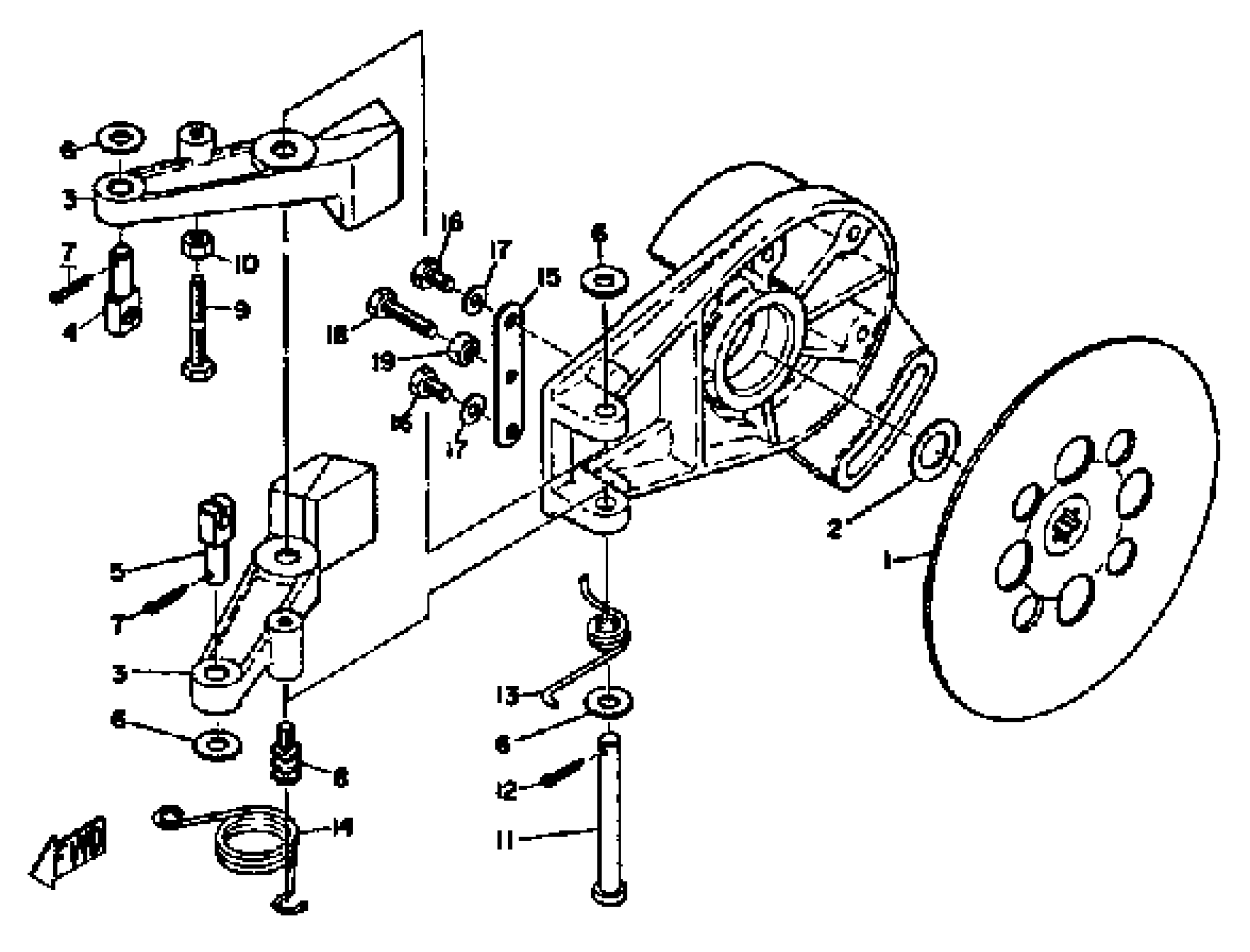

1968 Yamaha SL351 Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

(801-25711-00-00)

1
Out of stock

2

SHIM 1

(156-17427-00-07)

1
Out of stock

3

CALIPER BODY 1

(801-25730-00-00)

1
Out of stock

4

PIN 1

(801-25734-00-00)

1
Out of stock

5

TOOL

UNA-VAILA-BL-EI

1
Out of stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

PIN COTTER

91490-30025-00

1
Out of stock

8

TOOL

UNA-VAILA-BL-EI

1
Out of stock

9

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

10

NUT(650)

95380-06700-00

1

$6.17

In stock

11

PIN, CLEVIS

(91501-08070-00)

1
Out of stock

12

PIN, COTTER

91490-20025-00

1

$1.31

In stock

13

SPRING, TORSION

(90508-23193-00)

1
Out of stock

14

SPRING, TORSION

90508-29049-00

1
Out of stock

15

BRACKET, ADJUSTING

(802-25722-00-00)

1
Out of stock

16

BOLT (661)

97013-06012-00

—

$4.71

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT(7U8)

97080-06020-00

1
Out of stock

19

NUT(650)

95380-06700-00

1

$6.17

In stock
