1968 Yamaha SL351 Track & Suspension Diagram

← All diagrams

Find the part on the Track & Suspension diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

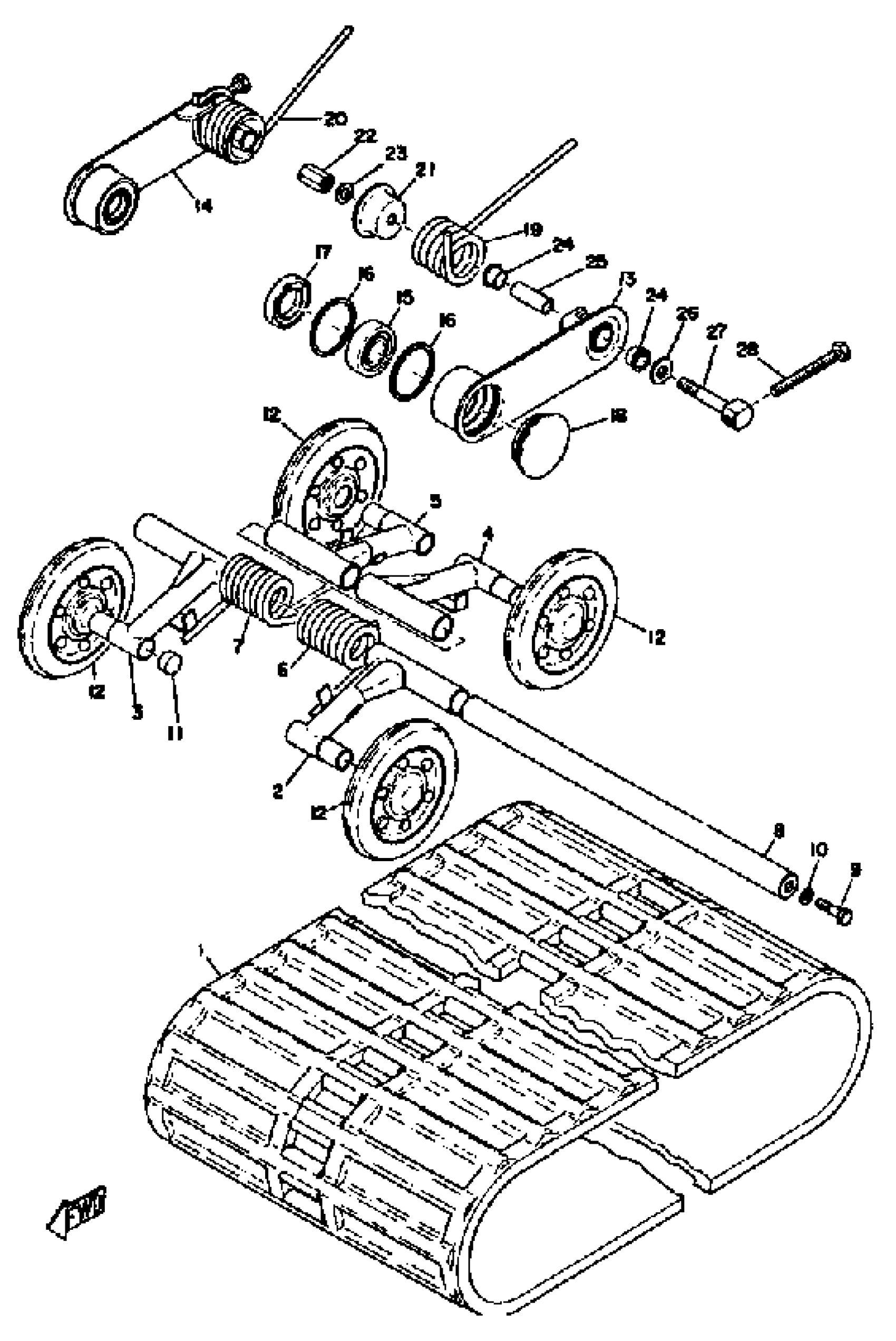

1968 Yamaha SL351 Track & Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE, RNFCMNT

(806-47113-00-00)

1
Out of stock

1

TRACK ASSEMBLY

(861-47110-00-00)

1
Out of stock

2

ARM, PIVOT 1

(802-47331-00-00)

1
Out of stock

3

TOOL

UNA-VAILA-BL-EI

1
Out of stock

4

ARM, PIVOT 2

(802-47332-00-00)

1
Out of stock

5

ARM, PIVOT 3

(802-47333-00-00)

1
Out of stock

6

SPRING, TORSION

(90508-70096-00)

1
Out of stock

7

SPRING, TORSION

90508-70120-00

1
Out of stock

8

SHAFT, PIVOT

(802-47337-00-00)

1
Out of stock

9

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

PLUG, TAPER

(90336-18008-00)

1
Out of stock

12

SUSPENSION WHL ASSEMBLY (810-47310-00)

8A9-47310-01-00

1
Out of stock

13

ARM, REAR PIVOT 1

(802-47361-00-00)

1
Out of stock

14

ARM, REAR PIVOT 2

(802-47362-00-00)

1
Out of stock

15

BEARING(1YW)

93306-20461-00

—

$33.41

In stock

16

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

17

OIL SEAL (25X47X7-801)

93102-25044-00

—
Out of stock

18

CAP

802-47377-00-00

1
Out of stock

19

SPRING, REAR 1

802-47363-00-00

1
Out of stock

20

SPRING, TORSION (802-47364-00)

90508-80088-00

1
Out of stock

21

WASHER 1

(802-47374-00-00)

1
Out of stock

22

NUT

802-47368-00-00

1
Out of stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

24

BUSH, PIVOT

801-47371-00-00

1
Out of stock

25

COLLAR 802473690000

90387-10090-00

—

$17.48

In stock

26

WASHER, PLATE

(90201-10370-00)

1
Out of stock

27

SCREW, REAR PIVOT

(802-47367-00-00)

1
Out of stock

28

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

1
Out of stock
