1968 Yamaha SL351 Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

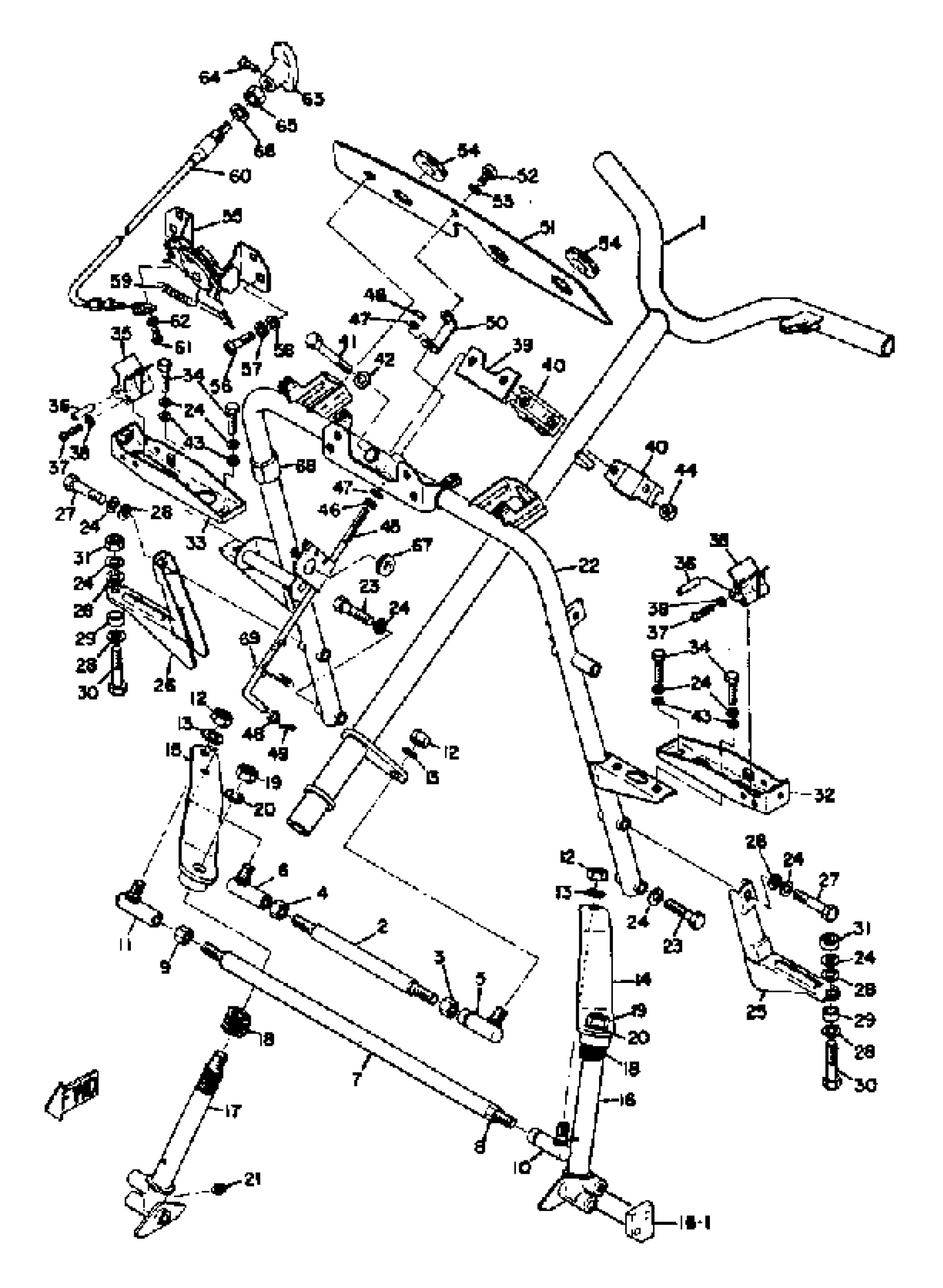

1968 Yamaha SL351 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(802-23811-00-00)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

. ROD, STEERING RELAY

802-23821-00-00

1
Out of stock

3

NUT, HEXAGON

(90170-10135-00)

1
Out of stock

4

. NUT, HEXAGON (802-23833-00)

90170-10082-00

1
Out of stock

5

. JOINT, UNIVERSAL 2 (802-23845-00)

802-23845-90-00

1
Out of stock

6

JOINT, UNIVERSAL 1

(806-23841-91-00)

1
Out of stock

7

ROD, TIE

(802-23831-00-00)

1
Out of stock

8

NUT, HEXAGON

(90170-10135-00)

1
Out of stock

9

. NUT, HEXAGON (802-23833-00)

90170-10082-00

1
Out of stock

10

. JOINT, UNIVERSAL 2 (802-23845-00)

802-23845-90-00

1
Out of stock

11

JOINT, UNIVERSAL 1

(806-23841-91-00)

1
Out of stock

12

NUT(3BM)

95314-10600-00

1

$1.74

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

ARM, OUTSIDE 1

(802-23851-00-00)

1
Out of stock

15

TOOL

UNA-VAILA-BL-EI

1
Out of stock

16

TOOL

UNA-VAILA-BL-EI

1
Out of stock

17

COLUMN, SKI 2

(802-23854-00-00)

1
Out of stock

17

COLUMN, SKI 2

(802-23854-01-00)

1
Out of stock

18

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

19

NUT(3DM)

95304-12600-00

—

$6.68

In stock

20

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

21

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

22

TOOL

UNA-VAILA-BL-EI

1
Out of stock

23

BOLT

97014-08040-00

—

$5.26

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

TOOL

UNA-VAILA-BL-EI

1
Out of stock

26

TOOL

UNA-VAILA-BL-EI

1
Out of stock

27

BOLT

97013-08045-00

—
Out of stock

28

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

29

TOOL

UNA-VAILA-BL-EI

1
Out of stock

30

BOLT

97013-08035-00

—

$4.80

In stock

31

NUT(6L2)

95333-08600-00

—

$3.20

In stock

32

BRACKET, REAR L

(802-77533-00-00)

1
Out of stock

33

BRACKET, REAR R

(802-77534-00-00)

1
Out of stock

34

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

35

CLAMP

(90464-09002-00)

1
Out of stock

36

STOPPER

(802-77188-00-00)

1
Out of stock

37

SCREW PAN HEAD

98580-06545-00

—

$5.78

In stock

38

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

39

HOLDER, BEARING

(802-23872-00-00)

1
Out of stock

40

BEARING, STRG UPPER

(802-23873-00-00)

1
Out of stock

41

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

42

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

43

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

44

NUT(6L2)

95333-08600-00

—

$3.20

In stock

45

TOOL

UNA-VAILA-BL-EI

1
Out of stock

46

NUT(650)

95380-06700-00

—

$6.17

In stock

47

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

48

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

49

PIN, COTTER

91490-20025-00

—

$1.31

In stock

50

TOOL

UNA-VAILA-BL-EI

1
Out of stock

51

PANEL, INSTRUMENT

(802-77711-00-00)

1
Out of stock

52

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

53

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

54

TOOL

UNA-VAILA-BL-EI

1
Out of stock

55

LATCH ASSEMBLY

(802-77170-00-00)

1
Out of stock

56

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

57

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

58

TOOL

UNA-VAILA-BL-EI

1
Out of stock

59

SPRING, TENSION

90506-14033-00

1
Out of stock

60

CABLE, LATCH

(802-77191-00-00)

1
Out of stock

61

SCREW

92503-05008-00

1
Out of stock

62

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

63

GRIP, LATCH CABLE

(802-77192-00-00)

1
Out of stock

64

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

65

NUT (682)

95380-10700-00

1

$5.78

In stock

66

—

$3.00

In stock

67

GROMMET

(102-82598-00-00)

1
Out of stock

68

DAMPER

(802-21746-00-00)

1
Out of stock

69

TOOL

UNA-VAILA-BL-EI

1
Out of stock
