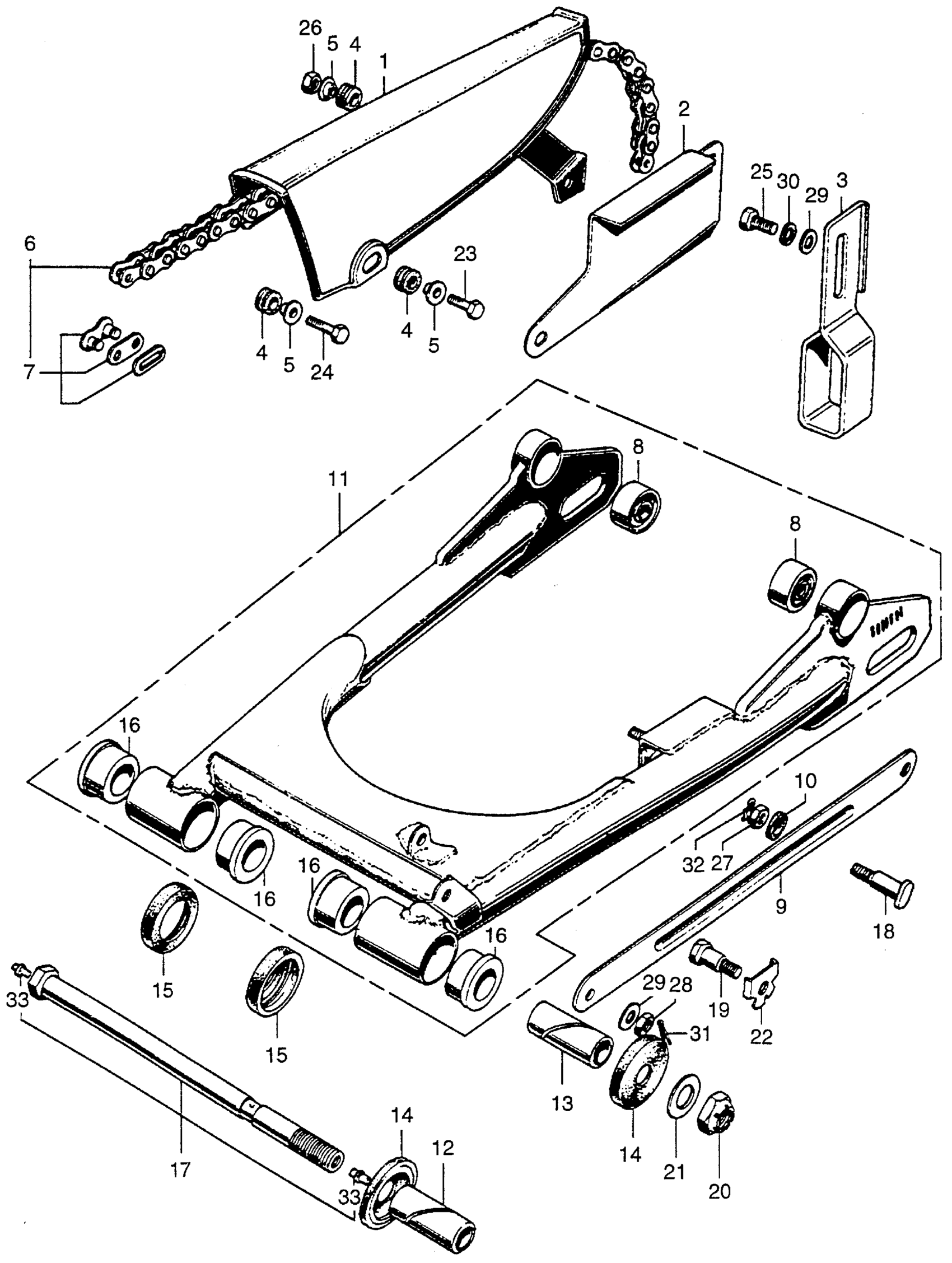

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-310-020

Unavailable

2

PROTECTOR, CHAIN (NOT AVAILABLE)

40511-310-000

Unavailable

3

GUIDE, CHAIN (NOT AVAILABLE) | Use up to Frame SN 1002292 This part replaces 40512-310-000.

40512-310-010

Unavailable

3

GUIDE, CHAIN (NOT AVAILABLE)

40512-310-010

Unavailable

4

RUBBER, CHAIN CASE SETTING

40513-310-000

$2.55

5

COLLAR, CHAIN CASE

40514-310-000

$6.26

6

CHAIN, DRIVE (DID50D-98L) (STD) (DAIDO) This part replaces 40530-290-003.

40530-349-003

Unavailable

6

CHAIN, DRIVE (DID50D-98L) (STD) (DAIDO)

40530-349-003

Unavailable

7

MASTER LINK This part replaces 40531-286-003.

40531-413-951

Unavailable

7

MASTER LINK This part replaces 40531-333-003.

40531-413-951

Unavailable

7

MASTER LINK This part replaces 40531-413-003.

40531-413-951

Unavailable

7

MASTER LINK

40531-413-951

Unavailable

8

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

9

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-286-010

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

SWINGARM *NH10M* (DARK SILVER METALLIC) This part replaces 52100-310-020S.

52100-310-030S

Unavailable

11

SWINGARM *NH10M* (DARK SILVER METALLIC)

52100-310-030S

Unavailable

12

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-268-000

Unavailable

13

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-286-000

Unavailable

14

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

14

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

14

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

15

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

15

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

16

BUSH, SWINGARM PIVOT This part replaces 52174-286-300.

52174-329-300

Unavailable

16

BUSH, SWINGARM PIVOT

52174-329-300

Unavailable

17

BOLT, SWINGARM PIVOT This part replaces 90121-286-000.

90121-349-690

Unavailable

18

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-310-000

Unavailable

19

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

20

NUT, LOCK (14MM)

90354-268-000

$6.78

21

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

21

WASHER (14X26)

90527-634-670

Unavailable

22

WASHER D, TONGUED (NOT AVAILABLE) This part replaces 90532-286-000.

94108-41000

Unavailable

22

WASHER D, TONGUED (NOT AVAILABLE)

94108-41000

Unavailable

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

24

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

24

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

24

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

25

BOLT, HEX. (8X16) | Use up to Frame SN 1002292 This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

25

BOLT, HEX. (8X20) | Use from Frame SN 1002293 This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

25

BOLT, HEX. (8X16) | Use up to Frame SN 1002292

92101-08016-0A

$1.49

25

BOLT, HEX. (8X20) | Use from Frame SN 1002293

92101-08020-0A

$1.62

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

NUT, HEX. (8MM)

94002-08000-0S

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

31

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

31

PIN, COTTER (2.0X22)

94201-20220

$1.49

31

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

31

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

31

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

31

PIN, COTTER (2.0X35)

94201-20350

$1.49

31

PIN, COTTER (2.0X22)

94201-29220

$1.49

32

PIN, LOCK (8MM)

94251-08000

$1.49

33

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

33

FITTING, GREASE (A.45)

96201-30001

$1.49
