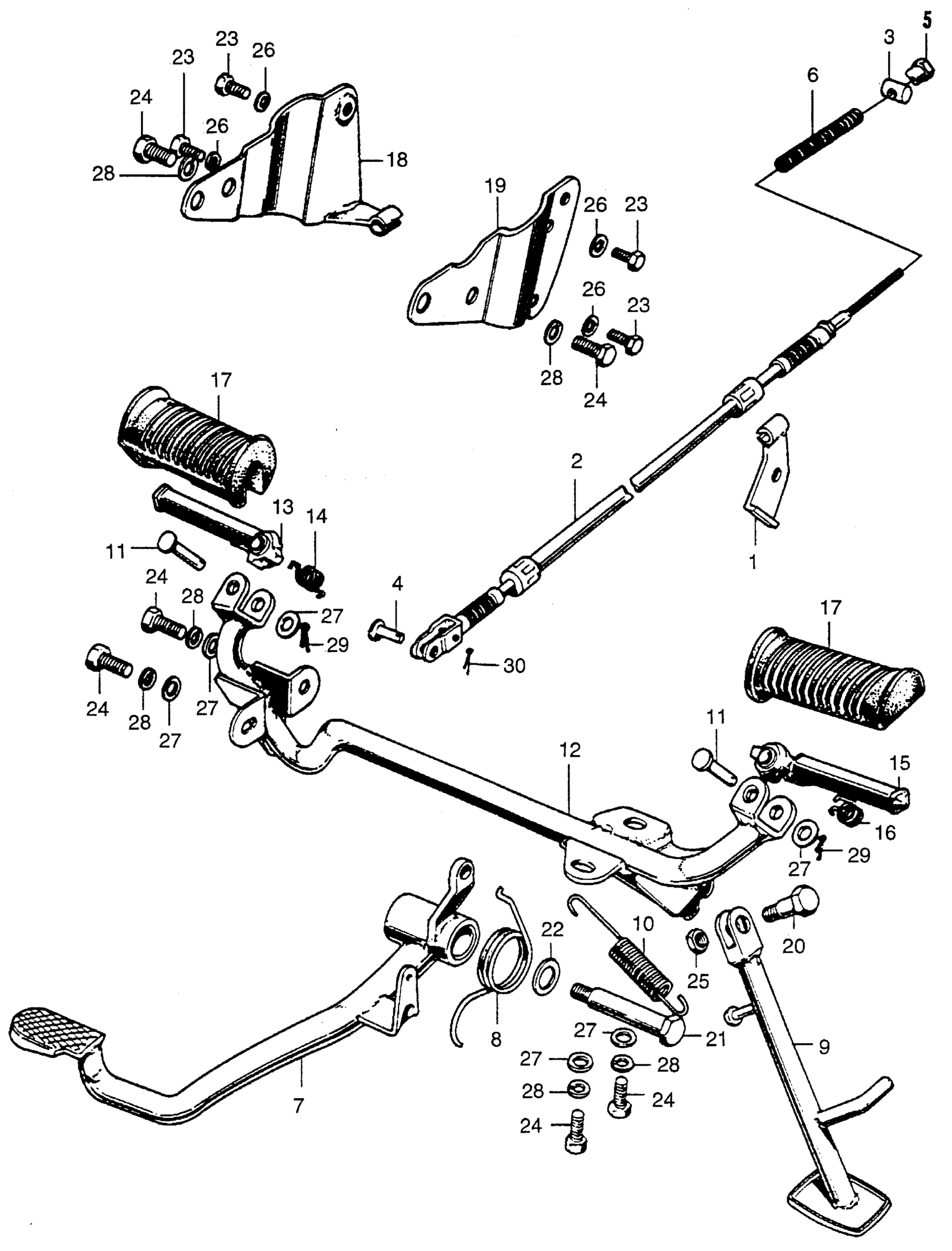

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 STEP + PEDAL Diagram

#

Description
Price

1

HOLDER, BRAKE CABLE (NOT AVAILABLE)

43420-310-000

Unavailable

2

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-310-000

Unavailable

3

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

3

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

3

JOINT, BRAKE ARM

95015-32001

$1.49

4

PIN B, BRAKE ROD JOINT This part replaces 43471-292-010.

95015-52000

$2.03

4

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

4

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

5

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

5

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

6

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

7

PEDAL, BRAKE (NOT AVAILABLE)

46500-310-010

Unavailable

8

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-310-010

Unavailable

9

BAR, SIDE STAND This part replaces 50530-310-010.

50530-310-020

Unavailable

9

BAR, SIDE STAND

50530-310-020

Unavailable

10

SPRING, SIDE STAND

50542-310-010

Unavailable

11

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

11

PIN, STEP BAR JOINT

50603-033-010

$3.30

12

BAR, STEP (NOT AVAILABLE)

50610-310-020

Unavailable

13

ARM, R. STEP (NOT AVAILABLE)

50616-310-000

Unavailable

14

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

15

ARM, L. STEP (NOT AVAILABLE)

50642-310-000

Unavailable

16

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

17

RUBBER, STEP

50661-310-000

$13.34

18

ARM, R. PIVOT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

50711-310-000S

Unavailable

19

ARM, L. PIVOT *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

50721-310-000S

Unavailable

20

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

21

BOLT, RR. BRAKE PIVOT (NOT AVAILABLE)

90128-310-000

Unavailable

22

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

22

WASHER (14X26)

90527-634-670

Unavailable

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

24

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

25

NUT, HEX. (10MM)

94001-10000-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

PIN, COTTER (2.0X22)

94201-20220

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

30

PIN, COTTER (2.0X35)

94201-20350

$1.49
