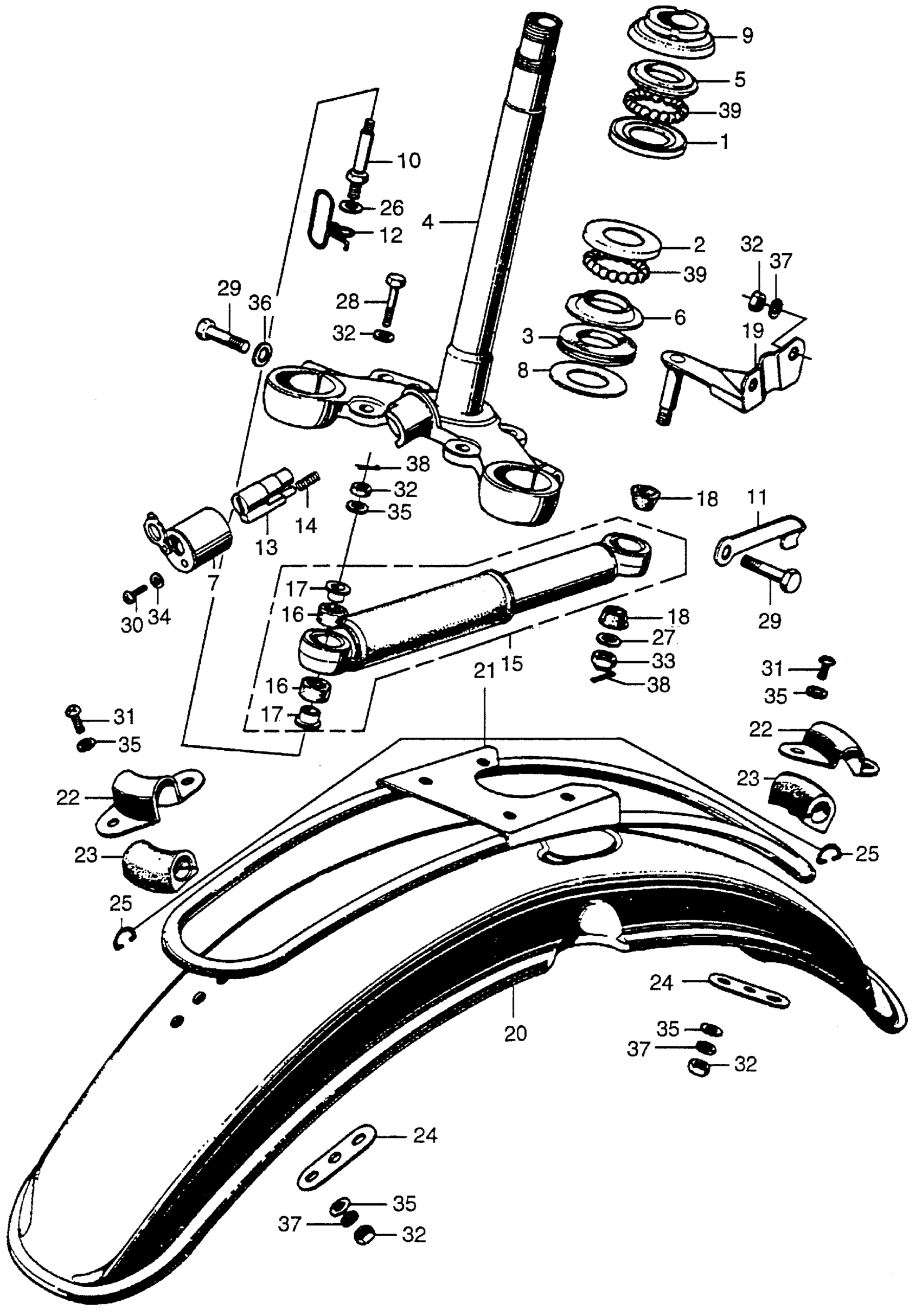

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

1

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

3

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

3

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

4

STEM-SET, STEERING *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

53020-310-000S

Unavailable

4

STEM-SET, STEERING *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 53200-310-000S.

53020-310-000S

Unavailable

4

STEM, STEERING *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1025709

53200-310-010S

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

5

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

5

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

6

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

7

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) | Use up to Frame SN 1025708

53215-230-000

Unavailable

7

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) | Use from Frame SN 1025709

53215-317-000

Unavailable

8

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

9

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

10

PIN B, STEERING OIL DAMPER (NOT AVAILABLE)

53226-310-010

Unavailable

11

CLIP, CABLE (NOT AVAILABLE)

53245-230-000

Unavailable

12

GUIDE, TACHOMETER CABLE (NOT AVAILABLE)

53246-310-010

Unavailable

13

LOCK, HANDLEBAR

35010-230-010

Unavailable

13

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

14

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

15

DAMPER, STEERING (NOT AVAILABLE)

53700-273-000

Unavailable

15

DAMPER, STEERING (NOT AVAILABLE) This part replaces 53700-310-000.

53700-273-000

Unavailable

16

BUSH, RUBBER (NOT AVAILABLE)

53702-268-810

Unavailable

17

BUSH, DAMPER ROD END (NOT AVAILABLE)

53703-268-810

Unavailable

18

RUBBER, DAMPER (NOT AVAILABLE)

53731-268-810

Unavailable

19

BRACKET, STEERING OIL DAMPER (NOT AVAILABLE)

53773-310-020

Unavailable

20

FENDER, FR. *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

61100-310-010CM

Unavailable

20

FENDER, FR. *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

61100-310-010CN

Unavailable

20

FENDER, FR. *Y2C* (CANDY GOLD) (NOT AVAILABLE)

61100-310-010CQ

Unavailable

21

STAY, FR. FENDER *NH10M* (DARK SILVER METALLIC)

61101-310-010S

Unavailable

22

STAY, FR. FENDER SET (NOT AVAILABLE)

61102-310-010

Unavailable

23

RUBBER, FR. FENDER MOUNT (NOT AVAILABLE)

61103-310-010

Unavailable

24

PLATE, FR. FENDER SETTING (NOT AVAILABLE)

61104-310-000

Unavailable

25

RING, FENDER STAY STOPPER

61105-310-000

Unavailable

26

WASHER, SPECIAL (8MM) (NOT AVAILABLE)

90483-809-610

Unavailable

27

WASHER, PLAIN (10MM) This part replaces 90538-706-000.

94102-10000

$1.49

27

WASHER, PLAIN (10MM)

94102-10000

$1.49

28

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

28

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.54

28

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

28

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

28

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

29

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$1.49

29

BOLT, HEX. (8X35)

92101-08035-0A

$1.49

29

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$1.49

30

SCREW, PAN (3X8)

93500-03008-0A

$1.49

31

SCREW, PAN (6X14)

93500-06014-0B

$1.49

31

SCREW, PAN (6X14)

93500-06014-02

$1.49

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

NUT, CASTLE (8MM)

94012-08000-0S

Unavailable

34

WASHER, PLAIN (3MM)

94101-03000

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

WASHER, PLAIN (8MM)

94101-08000

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

PIN, COTTER (2.0X15)

94201-20150

$1.49

39

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
