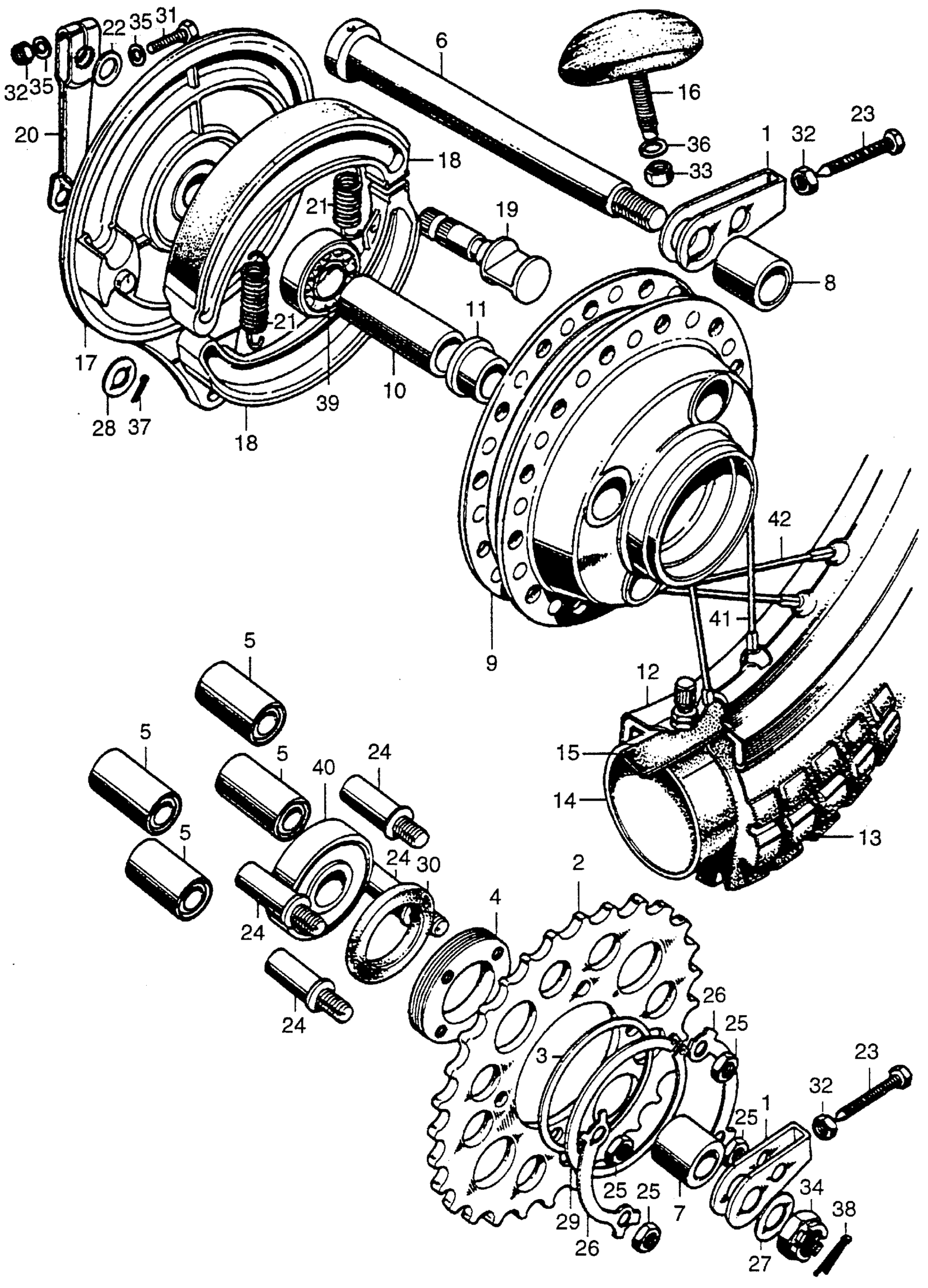

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-671.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-901.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 431A2-KG4-006.

06430-HM5-A80

$36.79

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-286-000.

95014-17000

Unavailable

1

ADJUSTER, DRIVE CHAIN

95014-17000

Unavailable

2

SPROCKET, FINAL DRIVEN (40T) (NOT AVAILABLE) | (Optional).

41201-310-000

Unavailable

3

WASHER (70MM)

41202-286-000

Unavailable

4

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

5

BUSH, RR. WHEEL DAMPER

41241-286-000

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-286-010.

42301-286-020

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-286-020

Unavailable

7

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE) This part replaces 42311-286-000.

42311-349-690

Unavailable

7

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-349-690

Unavailable

8

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-286-000

Unavailable

9

HUB, RR. WHEEL This part replaces 42601-286-010.

42601-286-020

Unavailable

9

HUB, RR. WHEEL

42601-286-020

Unavailable

10

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-286-000

Unavailable

11

COLLAR B, RR. AXLE DISTANCE

42625-286-000

Unavailable

12

RIM, RR. WHEEL (2.15BX18R) (DAIDO) (NOT AVAILABLE)

42701-310-013

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-310-004.

42711-329-672

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-312-003.

42711-329-672

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-329-671.

42711-329-672

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE)

42711-329-672

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-356-671.

42711-329-672

Unavailable

14

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KA3-711.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KS7-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-446-003.

42712-KT1-673

$37.60

14

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

15

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-000.

42713-304-003

$6.69

15

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-003.

42713-304-003

$6.69

15

FLAP, TIRE (1.40/1.60-18) (BS)

42713-304-003

$6.69

16

SPACER, BEAD (2.15B) (NOT AVAILABLE)

42715-310-004

Unavailable

17

PANEL, RR. BRAKE

43100-286-010

Unavailable

18

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-000.

43120-KG4-006

Unavailable

18

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-003.

43120-KG4-006

Unavailable

18

SHOE, RR. BRAKE (ASK) (NOT AVAILABLE)

43120-KG4-006

Unavailable

18

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-286-000.

43120-KG4-006

Unavailable

18

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-369-670.

43120-KG4-006

Unavailable

18

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-943-680.

43120-KG4-006

Unavailable

19

CAM, RR. BRAKE

43141-286-010

Unavailable

20

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-310-000.

43410-333-670

Unavailable

21

SPRING, BRAKE SHOE

45133-240-000

Unavailable

22

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

23

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

24

BOLT, DRIVEN SPROCKET FIXING

90128-283-010

Unavailable

25

NUT, HEX. (10MM) This part replaces 90310-286-000.

94031-10000

$1.49

25

NUT, HEX. (10MM)

94031-10000

$1.49

26

WASHER A5, TONGUED (NOT AVAILABLE) This part replaces 90522-286-000.

94108-15000

Unavailable

26

WASHER A5, TONGUED (NOT AVAILABLE)

94108-15000

Unavailable

27

WASHER (16.5X30) (NOT AVAILABLE)

90523-286-000

Unavailable

28

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

29

CIRCLIP (OUTER) (69MM) (NOT AVAILABLE)

90665-286-000

Unavailable

30

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

31

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

31

BOLT, HEX. (6X35) This part replaces 92200-06036.

92201-06035-0A

$1.75

31

BOLT, HEX. (6X35) This part replaces 92200-06036-0F.

92201-06035-0A

$1.75

31

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (8MM)

94001-08020-0S

$1.49

34

NUT, CASTLE (16MM) (NOT AVAILABLE)

94011-16220-0S

Unavailable

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

WASHER, SPRING (8MM)

94111-08000

$1.49

37

PIN, COTTER (2.0X15)

94201-20150

$1.49

38

PIN, COTTER (4.0X30)

94201-40300

$1.49

39

BEARING, RADIAL BALL (6303U) This part replaces 96120-63030.

96140-63030-10

$14.48

39

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

39

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

39

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

40

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

40

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

41

SPOKE B (INNER) (9X157.5) (NOT AVAILABLE)

97339-52155-10

Unavailable

42

SPOKE B (OUTER) (9X157) (NOT AVAILABLE)

97715-52145-10

Unavailable
