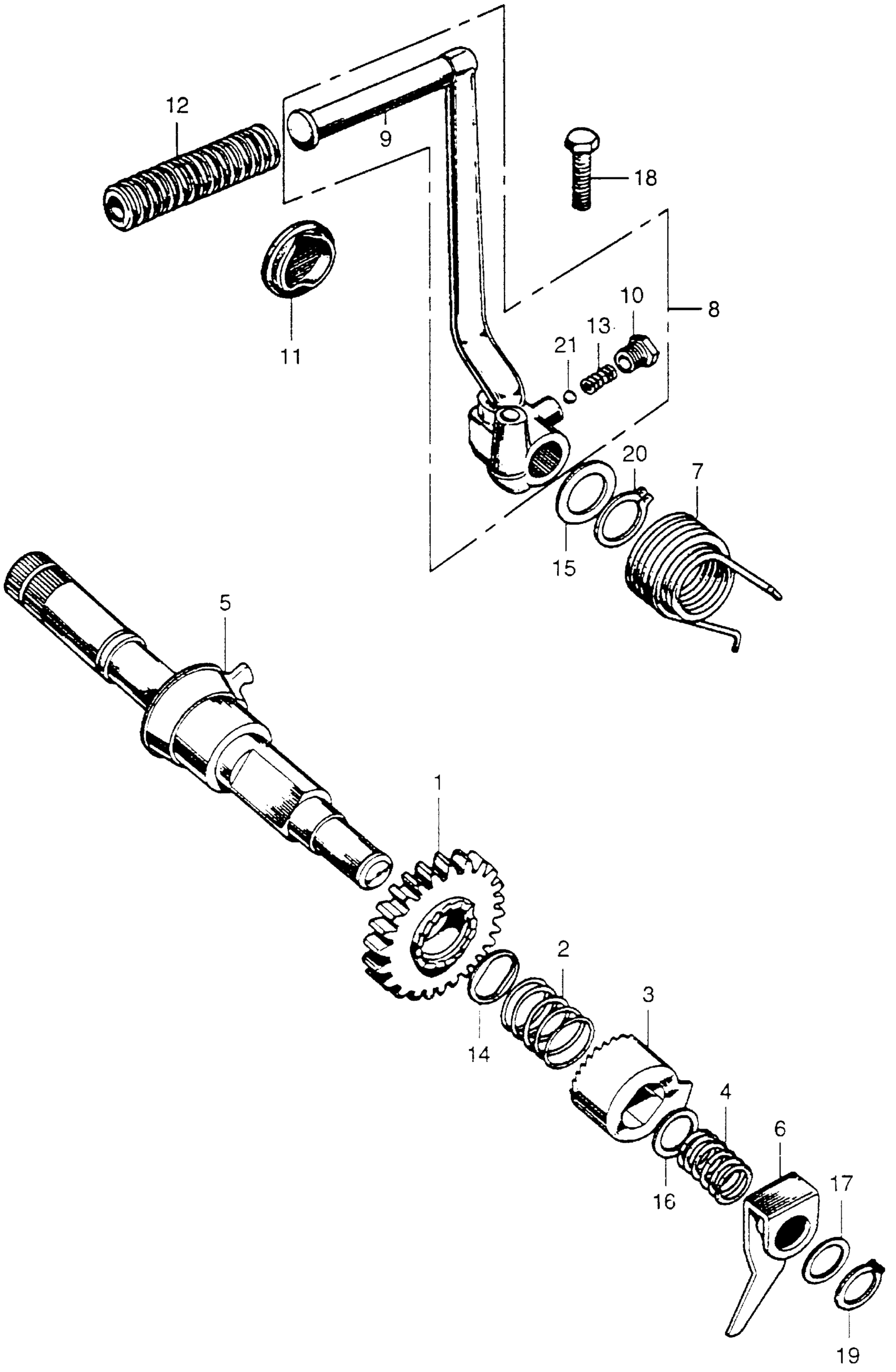

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER

28211-310-000

$67.11

2

SPRING, STARTER PINION SETTING (NOT AVAILABLE)

28215-216-000

Unavailable

3

RATCHET, KICK STARTER

28221-310-000

Unavailable

4

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-216-000

Unavailable

5

SPINDLE, KICK STARTER This part replaces 28250-310-000.

28251-310-010

Unavailable

5

SPINDLE, KICK STARTER

28251-310-010

Unavailable

6

PLATE, RATCHET GUIDE (NOT AVAILABLE) This part replaces 28258-310-000.

28258-310-010

Unavailable

6

PLATE, RATCHET GUIDE (NOT AVAILABLE)

28258-310-010

Unavailable

7

SPRING, KICK STARTER (NOT AVAILABLE) This part replaces 28261-286-003.

28261-323-000

Unavailable

7

SPRING, KICK STARTER (NOT AVAILABLE)

28261-323-000

Unavailable

8

ARM ASSY., KICK STARTER (NOT AVAILABLE) This part replaces 28300-310-000.

28300-344-010

Unavailable

8

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-344-010

Unavailable

9

ARM, KICK STARTER

28301-310-305

Unavailable

10

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

11

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

12

RUBBER B, KICK STARTER This part replaces 28307-254-000.

95011-52000

$4.12

12

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

12

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

12

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

12

RUBBER B, KICK STARTER

95011-52000

$4.12

13

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

14

WASHER, THRUST (20MM) (NOT AVAILABLE)

90451-216-000

Unavailable

15

WASHER (18MM)

90451-357-000

Unavailable

15

WASHER (18MM) This part replaces 90453-286-003.

90451-357-000

Unavailable

16

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

16

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

17

WASHER (12MM)

90452-ZG0-000

$1.49

17

WASHER (12MM) This part replaces 90457-500-000.

90452-ZG0-000

$1.49

18

BOLT, HEX. (8X32) (NOT AVAILABLE)

93000-08032-0A

Unavailable

19

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

20

CIRCLIP (OUTER) (18MM)

94510-18000

$1.49

21

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
