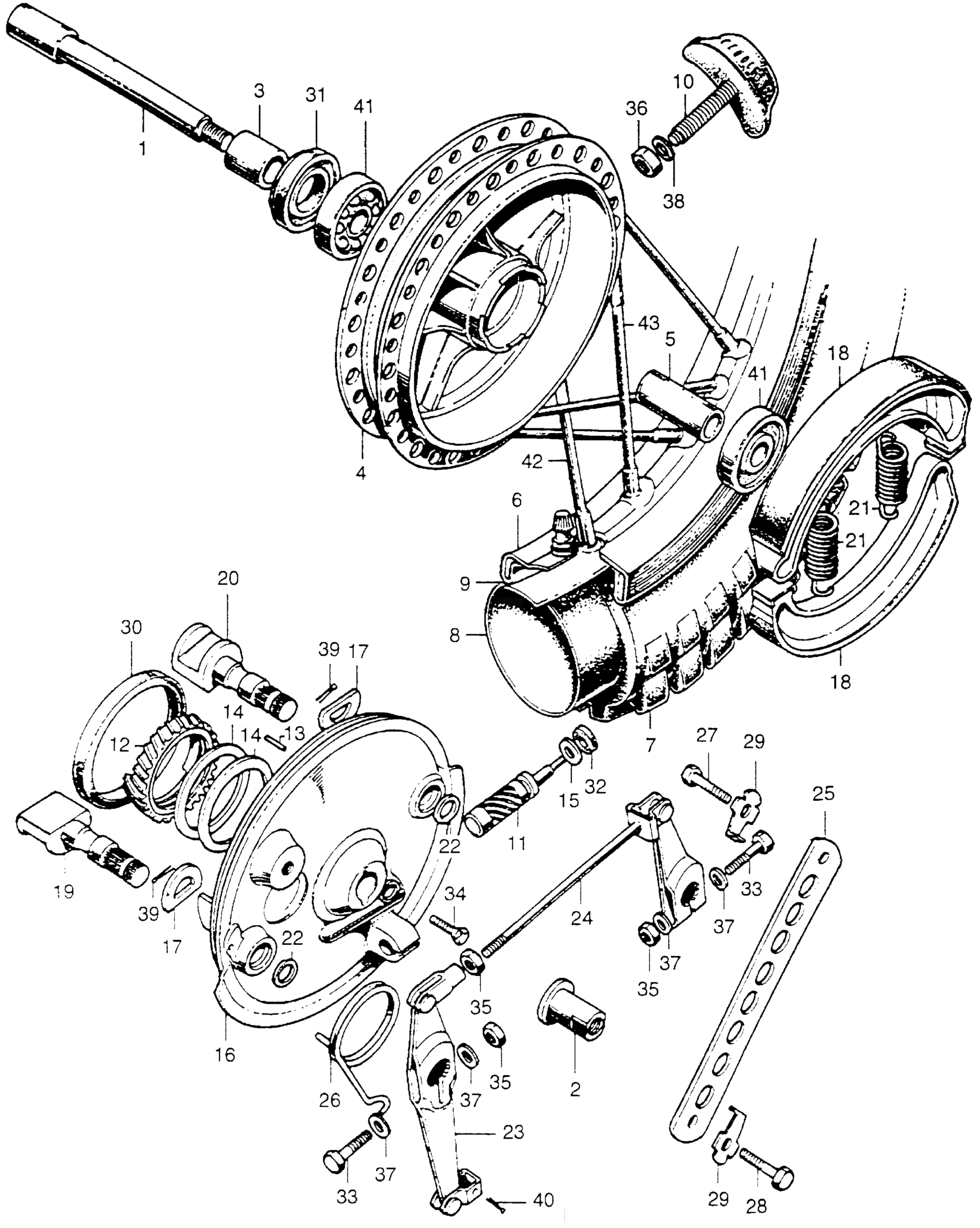

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 FRONT WHEEL + PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06450-369-405

Unavailable

NI

SHOE SET, BRAKE This part replaces 451A2-369-670.

06450-369-405

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-310-000.

44301-312-000

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-312-000

Unavailable

2

SLEEVE, FR. WHEEL AXLE (NOT AVAILABLE)

44302-310-000

Unavailable

3

COLR, FR. WHEEL SIDE This part replaces 44311-310-000.

44311-349-690

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE) This part replaces 44601-286-000.

44601-286-010

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE)

44601-286-010

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

6

RIM, RR. WHEEL This part replaces 44701-310-013.

44701-310-405

Unavailable

7

TIRE, FR. (3.25-19) (BS) (NOT AVAILABLE) This part replaces 44711-310-004.

44711-312-003

Unavailable

7

TIRE, FR. (3.25-19) (BS) (NOT AVAILABLE)

44711-312-003

Unavailable

8

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 08400-31310.

44712-110-003

Unavailable

8

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 08400-41310.

44712-110-003

Unavailable

8

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-310-004.

44712-110-003

Unavailable

8

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-312-003.

44712-110-003

Unavailable

8

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-401-681.

44712-110-003

Unavailable

8

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-413-009.

44712-110-003

Unavailable

9

FLAP, TIRE (100/90-19) (57S) (BS)

44713-MR1-671

$7.32

9

FLAP, TIRE (BS) This part replaces 44713-290-000.

44713-MR1-671

$7.32

10

SPACER, BEAD (1.85B)

44715-310-004

Unavailable

11

PINION, SPEEDOMETER (NOT AVAILABLE)

44805-310-000

Unavailable

12

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-310-000

Unavailable

13

PIN, SPEEDOMETER PINION (NOT AVAILABLE)

44808-235-000

Unavailable

14

WASHER, SPEEDOMETER GEAR (NOT AVAILABLE)

44809-286-010

Unavailable

15

WASHER, SPEEDOMETER PINION (NOT AVAILABLE)

44810-240-000

Unavailable

16

PANEL, FR. BRAKE This part replaces 45010-286-010.

45010-344-000

Unavailable

16

PANEL, FR. BRAKE

45010-344-000

Unavailable

16

PANEL, FR. BRAKE This part replaces 45100-286-010.

45010-344-000

Unavailable

17

WASHER, FR. ANCHOR PIN (NOT AVAILABLE)

45106-235-000

Unavailable

18

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45120-286-000.

45120-369-670

Unavailable

18

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-369-670

Unavailable

19

CAM A, FR. BRAKE (NOT AVAILABLE)

45131-286-000

Unavailable

20

CAM B, FR. BRAKE (NOT AVAILABLE)

45132-286-010

$32.70

21

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-235-000

Unavailable

22

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

23

ARM, FR. BRAKE (NOT AVAILABLE) This part replaces 45410-286-000.

45410-369-000

Unavailable

23

ARM, FR. BRAKE (NOT AVAILABLE)

45410-369-000

Unavailable

24

ARM, FR. BRAKE (NOT AVAILABLE)

45420-286-000

Unavailable

25

ARM, FR. BRAKE STOPPER (NOT AVAILABLE) This part replaces 45431-286-000.

45431-340-000

Unavailable

26

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45461-222-000

Unavailable

27

BOLT, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

90125-292-000

Unavailable

28

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

90126-286-000

Unavailable

29

WASHER B, TONGUED (8.2MM) (NOT AVAILABLE) This part replaces 90532-292-000.

90533-286-000

Unavailable

29

WASHER B, TONGUED (8.2MM) (NOT AVAILABLE)

90533-286-000

Unavailable

30

OIL SEAL (54X66X7) This part replaces 91251-230-000.

91251-230-003

$12.60

30

OIL SEAL (54X66X7)

91251-230-003

$12.60

31

OIL SEAL (26X42X7)

91252-230-003

$10.56

32

OIL SEAL (4.8X15X4)

91256-240-003

Unavailable

33

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

33

BOLT, HEX. (6X35) This part replaces 92200-06036.

92201-06035-0A

$1.75

33

BOLT, HEX. (6X35) This part replaces 92200-06036-0F.

92201-06035-0A

$1.75

33

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

34

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

NUT, HEX. (8MM)

94001-08020-0S

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, SPRING (8MM)

94111-08000

$1.49

39

PIN, COTTER (2.0X15)

94201-20150

$1.49

40

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

40

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

40

PIN, COTTER (2.0X22)

94201-20220

$1.49

40

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

40

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

40

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

40

PIN, COTTER (2.0X35)

94201-20350

$1.49

40

PIN, COTTER (2.0X22)

94201-29220

$1.49

41

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99

42

SPOKE B (9X165.5) (INSIDE)

97338-52171-1

Unavailable

43

SPOKE B (9X165) (OUTSIDE)

97661-52170-1

$3.69
