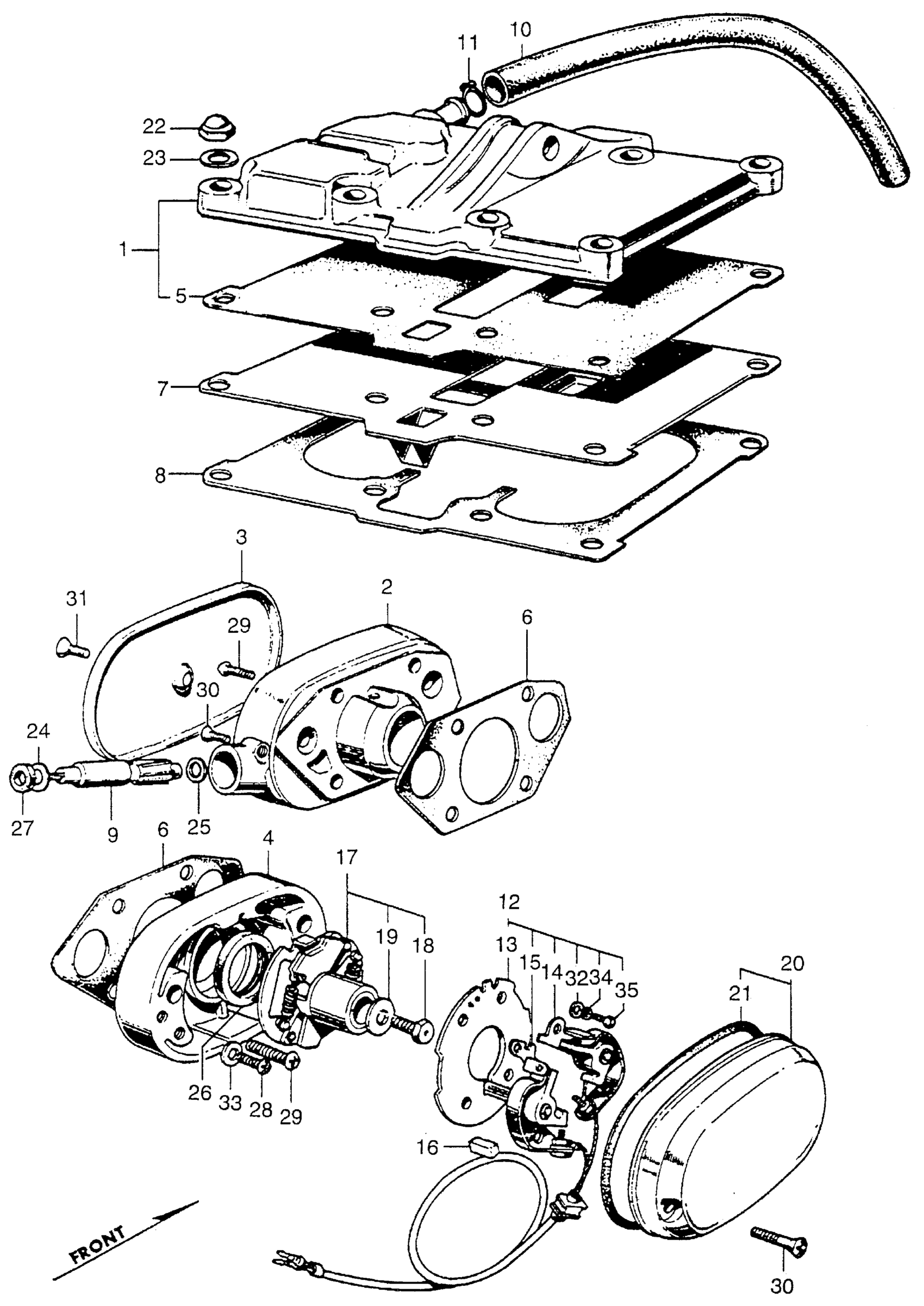

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12300-286-000

Unavailable

2

COVER, R. CYLINDER HEAD SIDE

12331-286-080

Unavailable

3

COVER, TACHOMETER (NOT AVAILABLE)

12332-286-000

Unavailable

4

COVER, L. CYLINDER HEAD SIDE (NOT AVAILABLE)

12341-286-060

Unavailable

5

GASKET A, CYL HD CVR This part replaces 12391-286-010.

12391-286-306

Unavailable

6

GSKT, CYL HD SD/CVR This part replaces 12392-286-040.

12392-286-306

Unavailable

6

GSKT, CYL HD SD/CVR This part replaces 12392-286-050.

12392-286-306

Unavailable

7

GASKET B, CYLINDER HEAD COVER This part replaces 12394-286-000.

12394-312-000

Unavailable

7

GASKET B, CYLINDER HEAD COVER

12394-312-000

Unavailable

8

GASKET C, CYL HD CVR This part replaces 12395-286-000.

12395-286-306

Unavailable

9

GEAR, TACHOMETER

12431-286-020

Unavailable

10

*95005-11001-30M This part replaces 15761-286-010.

95005-11570-30

Unavailable

10

*95005-11001-30M This part replaces 15761-292-010.

95005-11570-30

Unavailable

10

*95005-11001-30M This part replaces 15761-292-030.

95005-11570-30

Unavailable

11

CLIP, BREATHER TUBE

15772-292-010

$2.92

12

POINTS ASSY. (DENSO) (NOT AVAILABLE)

30200-286-004

Unavailable

13

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE)

30201-286-004

Unavailable

14

POINTS, R. (DENSO)

30203-286-004

$32.95

15

POINTS, L. (DENSO)

30204-286-004

$33.13

16

FELT, OIL (DENSO) (NOT AVAILABLE)

30205-205-014

Unavailable

17

ADVANCER ASSY., SPARK (DENSO) (NOT AVAILABLE)

30220-286-014

Unavailable

18

BOLT, SPARK ADVANCER SETTING (DENSO) (NOT AVAILABLE)

30225-286-004

Unavailable

19

WASHER, SPARK ADVANCER SETTING (DENSO) (NOT AVAILABLE) This part replaces 30226-286-004.

30226-286-014

Unavailable

19

WASHER, SPARK ADVANCER SETTING (DENSO) (NOT AVAILABLE)

30226-286-014

Unavailable

20

COVER, POINTS (NOT AVAILABLE) This part replaces 30370-286-030.

30370-298-000

Unavailable

20

COVER, POINTS (NOT AVAILABLE)

30370-298-000

Unavailable

21

GASKET, POINT COVER This part replaces 30372-286-320.

30372-286-306

Unavailable

22

NUT, CAP (8MM)

94021-08000-0S

$1.55

22

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

23

WASHER, SEAL (8MM)

90441-286-000

$1.90

24

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

25

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

26

OIL SEAL (22X35X5) This part replaces 91202-286-023.

91251-KM1-003

$6.96

26

OIL SEAL (22X35X5) This part replaces 91202-286-025.

91251-KM1-003

$6.96

26

OIL SEAL (22X35X5)

91251-KM1-003

$6.96

27

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

27

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

28

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

28

SCREW, PAN (6X12)

93500-06012-0A

$1.49

28

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

29

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

29

SCREW, PAN (6X20)

93500-06020-0A

$1.49

30

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

31

SCREW, OVAL (6X10)

93700-06010-0B

$1.49

31

SCREW, OVAL (6X10) This part replaces 93700-06010-02.

93700-06010-0B

$1.49

32

WASHER, PLAIN (4MM)

94101-04000

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

WASHER, SPRING (4MM)

94111-04000

$1.49

35

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$1.49

35

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

35

SCREW, PAN (4X6)

93500-04006-0A

$1.49

35

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

35

SCREW, PAN (4X6) This part replaces 99500-04005-0A.

93500-04006-0A

$1.49
