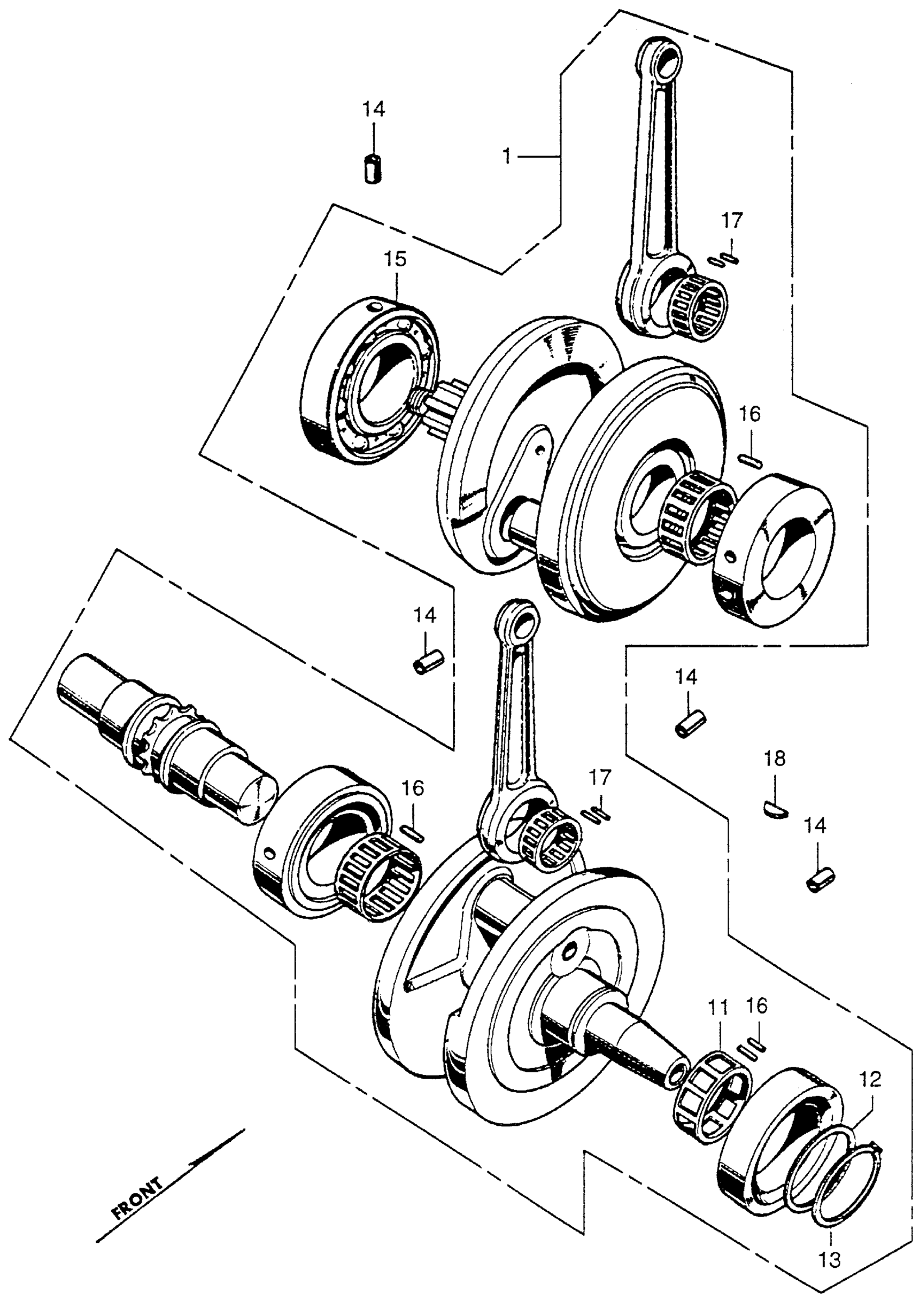

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 CRANKSHAFT Diagram

CRANKSHAFT ASSY. This part replaces 13000-287-050.

13000-287-060

Unavailable

CRANKSHAFT ASSY.

13000-287-060

Unavailable

RETAINER, L. MAIN BEARING (NOT AVAILABLE)

13501-287-300

$30.82

WASHER (30MM) (NOT AVAILABLE)

90454-287-000

Unavailable

CIRCLIP (OUTER) (30MM)

90601-701-000

Unavailable

PIN, DOWEL (7X12) (NOT AVAILABLE)

90708-286-000

Unavailable

BEARING, BALL (6306)

91001-286-003

Unavailable

ROLLER (4X10) (NOT AVAILABLE)

91004-286-000

Unavailable

ROLLER (3X12.5)

91102-286-000

Unavailable

KEY, WOODRUFF (25X14)

94401-25140

$1.75
