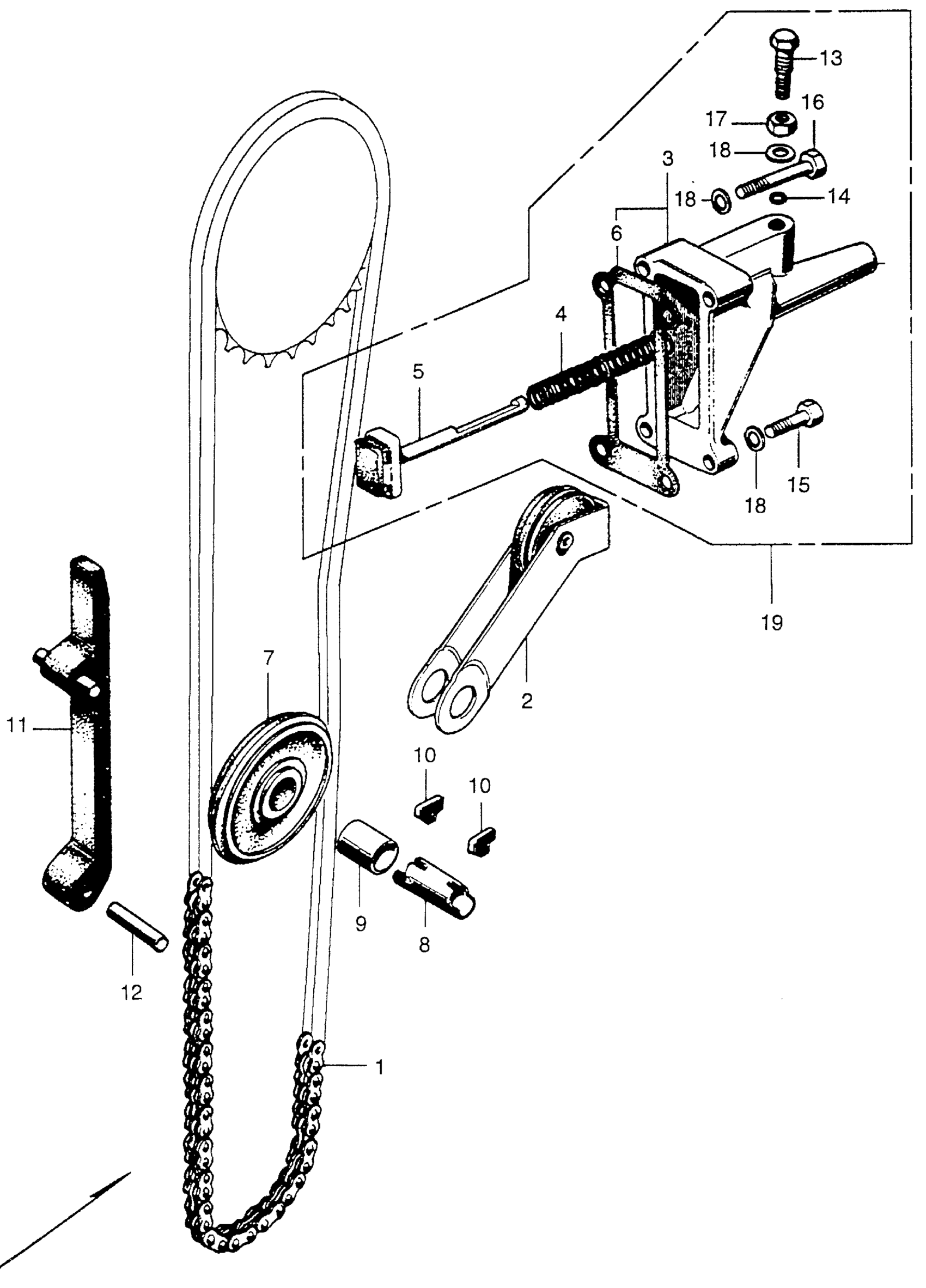

Honda SL350A MOTORCYCLE, JPN, VIN# SL350-1000001 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

CHAIN, CAM This part replaces 14401-286-003.

14401-410-003

Unavailable

1

CHAIN, CAM

14401-410-003

Unavailable

2

TENSIONER, CAM CHAIN This part replaces 14500-286-040.

14500-312-000

Unavailable

2

TENSIONER, CAM CHAIN

14500-312-000

Unavailable

3

HOLDER, CAM CHAIN TENSIONER

14530-286-040

Unavailable

4

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-286-040

Unavailable

5

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-286-000

Unavailable

6

GASKET This part replaces 14592-286-310.

14592-286-306

Unavailable

7

ROLLER, CAM CHAIN GUIDE This part replaces 14601-286-010.

14601-312-000

$35.03

7

ROLLER, CAM CHAIN GUIDE

14601-312-000

$35.03

8

PIN, CAM CHAIN ROLLER (NOT AVAILABLE)

14605-286-020

Unavailable

9

COLLAR, CAM CHAIN ROLLER (NOT AVAILABLE)

14606-286-000

Unavailable

10

RUBBER, CAM CHAIN ROLLER PIN

14607-286-000

$13.44

11

GUIDE, CAM CHAIN This part replaces 14611-286-030.

14611-312-000

Unavailable

11

GUIDE, CAM CHAIN

14611-312-000

Unavailable

12

PIN, CAM CHAIN GUIDE (NOT AVAILABLE)

14612-286-000

Unavailable

13

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90016-286-000

Unavailable

14

O-RING (6X1.7)

91317-171-003

$2.92

14

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

16

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

16

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

17

NUT, HEX. (8MM)

94002-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

CHAIN KIT, CAM (NOT AVAILABLE)

06141-286-000

Unavailable
