1974 Yamaha SL338F Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha SL338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

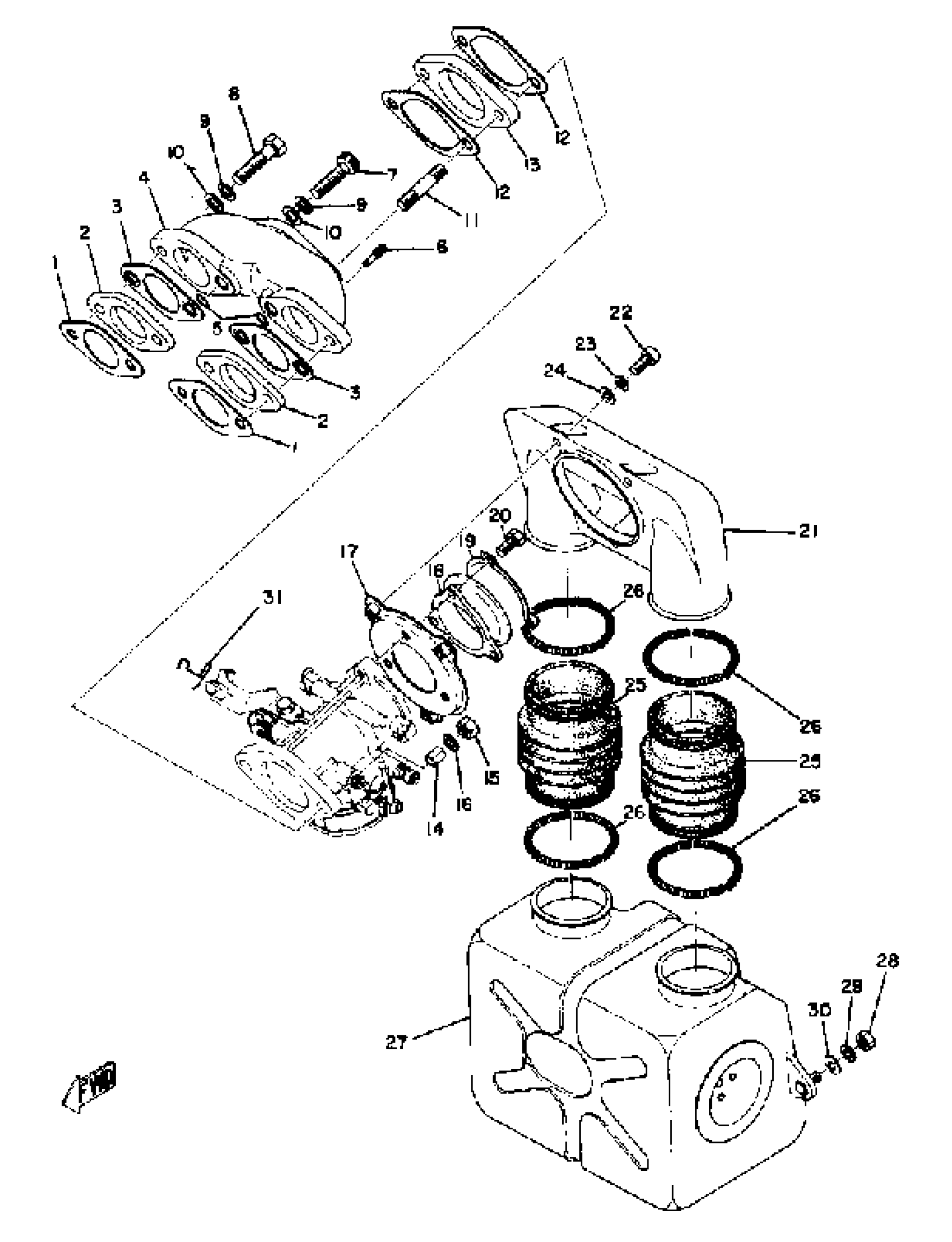

1974 Yamaha SL338F Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

810-13556-09-00

1
Out of stock

2

MANIFOLD, INTAKE

807-13555-01-00

1
Out of stock

3

GASKET

810-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

(824-13565-00-00)

1
Out of stock

5

O-RING (11M)

93210-07540-00

1

$5.77

In stock

6

NOZZLE

824-13552-00-00

1
Out of stock

7

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

8

BOLT

97013-08035-00

1

$4.80

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

BOLT, STUD

(90116-08051-00)

1
Out of stock

12

GASKET

810-13566-09-00

1
Out of stock

13

MANIFOLD, INTAKE

(812-13555-70-00)

1
Out of stock

14

SPACER

(810-13576-00-00)

1
Out of stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

PLATE

(841-14477-00-00)

1
Out of stock

18

FUNNEL

(810-14479-00-00)

1
Out of stock

19

WASHER

(859-14475-00-00)

1
Out of stock

20

SCREW, HEXAGON

(90153-06006-00)

1
Out of stock

21

SILENCER, INTAKE 1

(841-14431-00-00)

1
Out of stock

22

SCREW, PAN

98507-06014-00

—

$6.18

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

JOINT, AIR CLNR 1

841-14453-00-00

1
Out of stock

26

SPRING, TENSION

90506-06082-00

1
Out of stock

27

SILENCER, INTAKE 2

(841-14441-02-00)

1
Out of stock

28

NUT(6TA)

95317-06600-00

—

$2.69

In stock

29

WASHER, SPRING

92907-06100-00

—
Out of stock

30

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

31

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
