1974 Yamaha SL338F Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1974 Yamaha SL338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

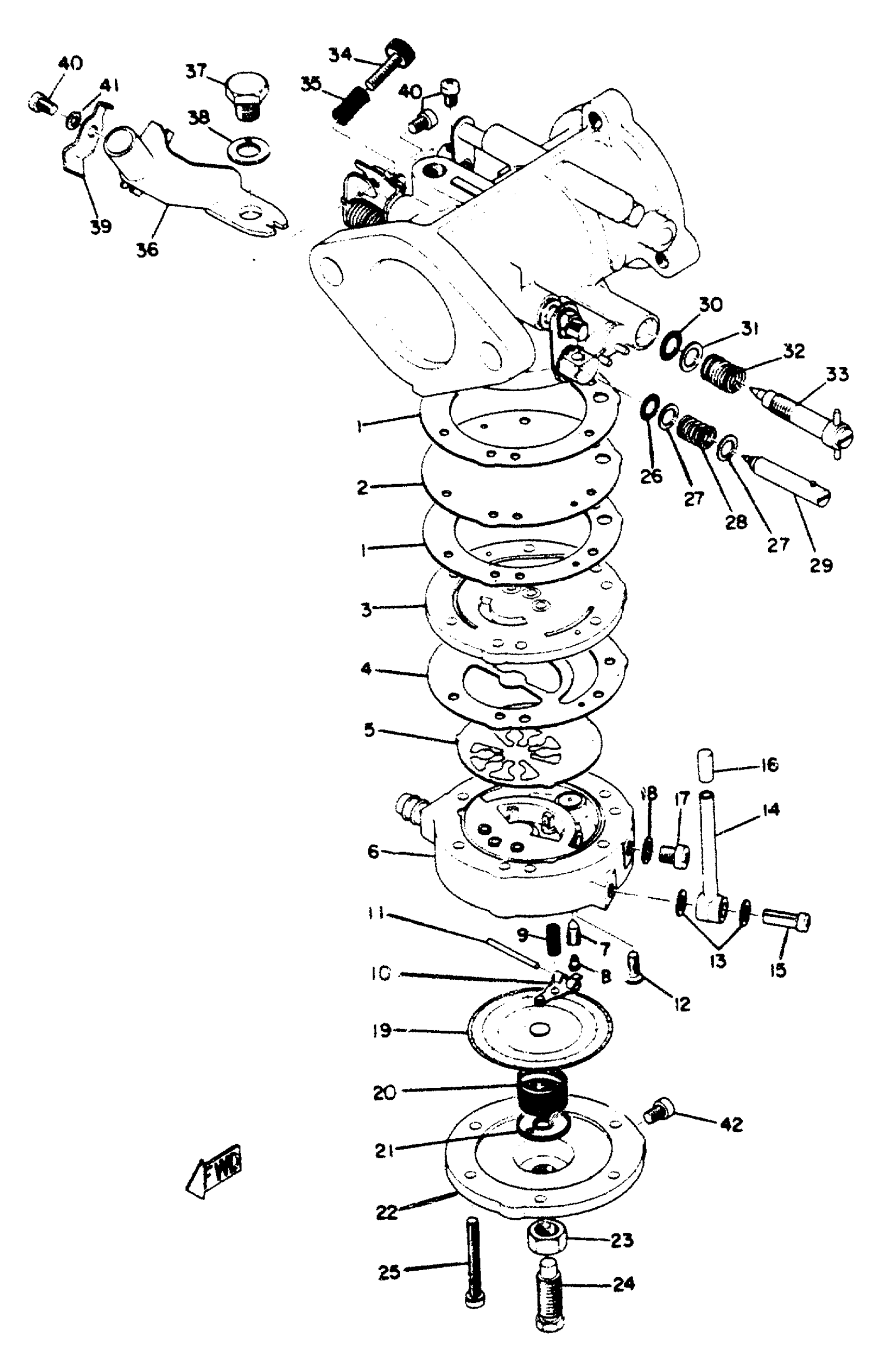

1974 Yamaha SL338F Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

838-14536-09-00

1

$11.29

In stock

1

CARBURETOR ASSEMBLY 1

(859-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

4

GASKET

834-14553-09-00

1
Out of stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

6

BODY, PUMP 2

(853-14543-01-00)

1
Out of stock

7

. JET #80

853-14515-80-00

1
Out of stock

8

VALVE

838-14546-00-00

1

$39.18

In stock

9

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

10

. SPRING

810-14556-00-00

1
Out of stock

11

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

12

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

13

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

14

. WASHER

806-14559-00-00

1
Out of stock

15

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

16

. SCREW

8A1-14592-00-00

1
Out of stock

17

. CAP, BLIND

810-24462-01-00

1
Out of stock

18

SCREW

(806-14567-01-00)

1
Out of stock

19

. WASHER

810-14597-00-00

1
Out of stock

20

DIAPHRAGM

810-14545-00-00

—
Out of stock

21

SPRING

(810-14555-00-00)

1
Out of stock

22

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

23

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

24

. NUT

95380-08700-00

1

$3.07

In stock

25

. SCREW, STOP

824-14565-00-00

1
Out of stock

26

SCREW

(824-14567-00-00)

1
Out of stock

27

. O-RING

824-14563-00-00

1
Out of stock

28

. WASHER

838-14596-00-00

1
Out of stock

29

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

30

SCREW, ADJUST

(838-14522-00-00)

1
Out of stock

31

. O-RING

824-14564-00-00

1
Out of stock

32

. WASHER

838-14597-00-00

1
Out of stock

33

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

34

. SCREW, ADJUST

838-14521-00-00

1
Out of stock

36

SCREW, STOP

(810-14523-00-00)

1
Out of stock

37

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

38

BRACKET, THROTTLE

(824-14571-00-00)

1
Out of stock

39

BOLT(62E)

97013-08012-00

—

$2.48

In stock

40

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

41

PLATE

(826-14527-00-00)

1
Out of stock

42

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

43

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

44

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
