1971 Yamaha SL338B OIL Pump Diagram

← All diagrams

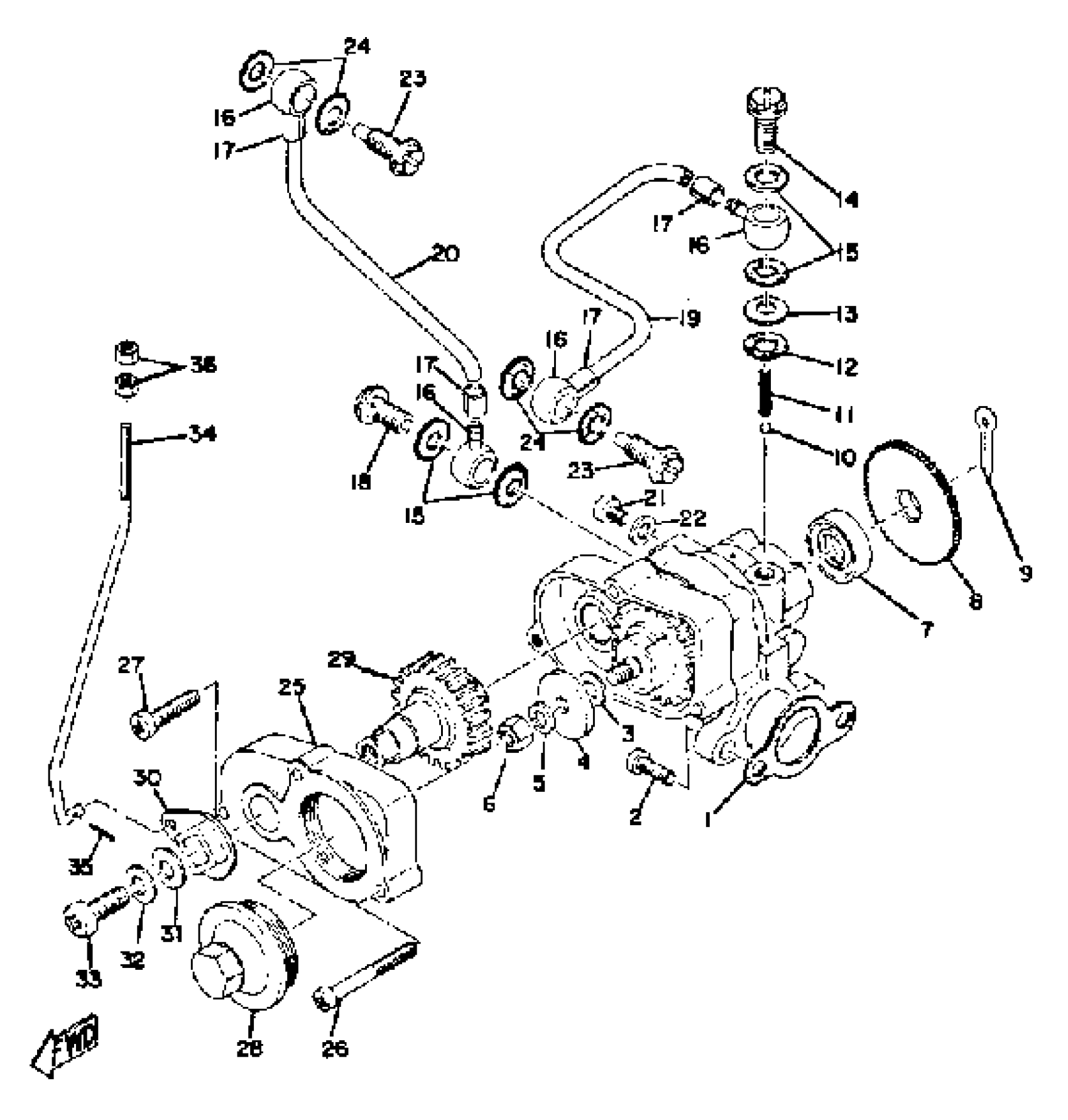

Find the part on the OIL Pump diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(806-13101-00-00)

1
Out of stock

1

OIL PUMP ASSEMBLY

(824-13101-00-00)

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

BALL

93505-32002-00

1

$2.22

In stock

11

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

12

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

13

1

$6.58

In stock

14

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

14

BOLT, UNION 001

(90401-06002-00)

1
Out of stock

15

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

16

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

16

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

19

. HOSE (3-90) (807-13161-01)

90445-05020-00

1
Out of stock

19

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

20

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

20

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

21

SCREW, BIND

98980-04008-00

1

$3.26

In stock

22

GASKET 137131870000

90430-04004-00

—
Out of stock

23

BOLT, UNION

90401-06011-00

1
Out of stock

24

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

25

COVER, AJST PULLEY

(807-13146-00-00)

1
Out of stock

25

COVER, AJST PULLEY

(821-13146-00-00)

1
Out of stock

26

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

27

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

28

CAP, PUMP CASE

(807-13143-00-00)

1
Out of stock

29

GEAR, PUMP CONTROL

(807-13154-00-00)

1
Out of stock

29

GEAR, PUMP CONTROL

(821-13154-00-00)

1
Out of stock

30

LEVER, PUMP CONTROL

(807-13156-00-00)

1
Out of stock

30

LEVER, PUMP CONTROL

(821-13156-00-00)

1
Out of stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

SCREW, PAN

98507-06014-00

—

$6.18

In stock

34

ROD, PUMP CONTROL

(810-13157-00-00)

1
Out of stock

34

ROD, PUMP CONTROL

824-13157-00-00

1
Out of stock

35

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

36

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock
