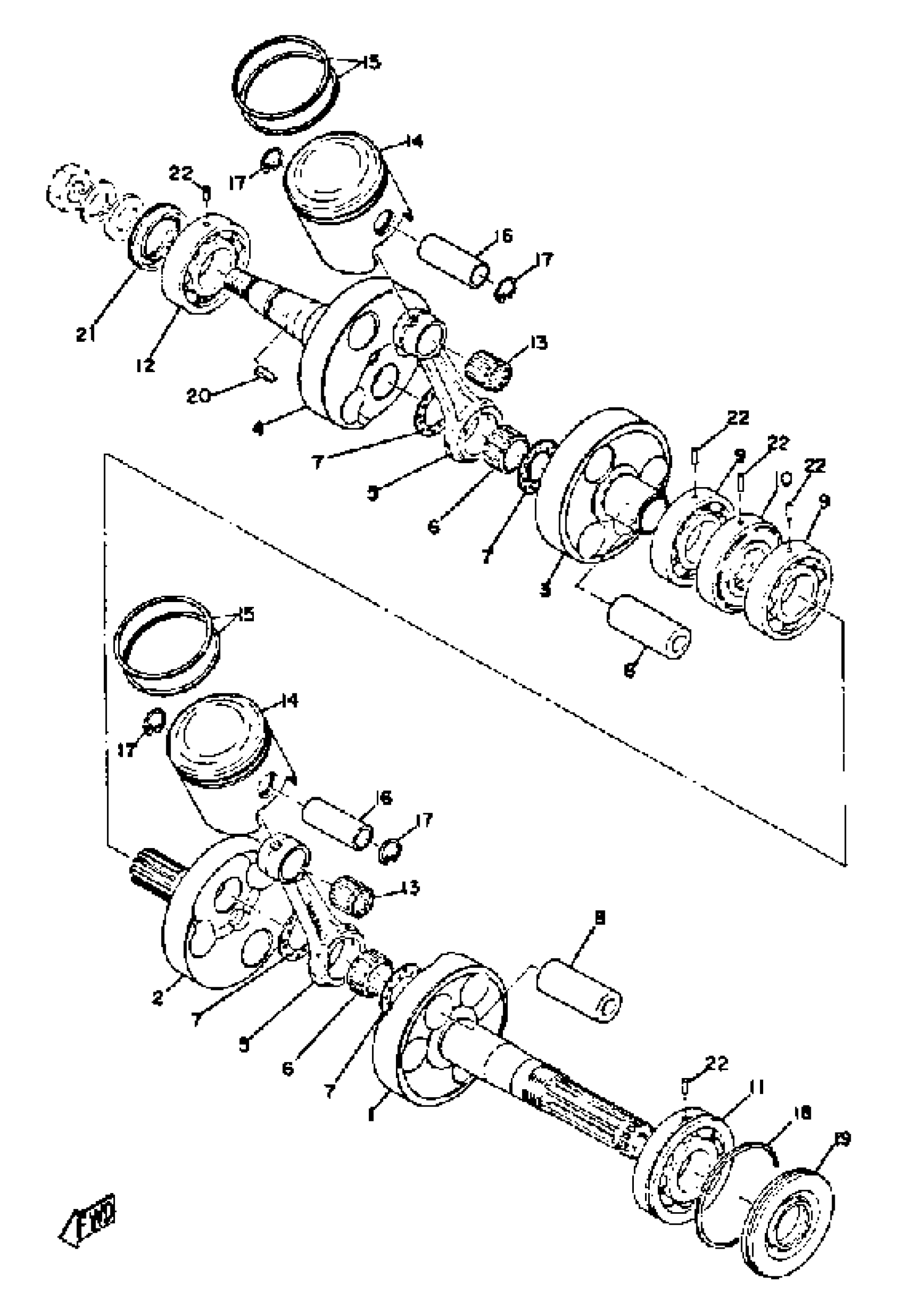

Find the part on the Crank - Piston diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(810-11400-00-00)

1
Out of stock

1

CRANK 1

(811-11412-00-00)

1
Out of stock

2

CRANK 2

(807-11422-00-00)

1
Out of stock

3

CRANK 3

(807-11432-00-00)

1
Out of stock

4

CRANK 4

(807-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

6

BEARING

93310-424E8-00

1

$19.49

In stock

7

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

8

. PIN, CRANK 1

168-11681-00-00

1
Out of stock

9

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

10

SEAL, LABYRINTH 1

(168-11515-00-00)

1
Out of stock

11

. BEARING

93306-30603-00

1
Out of stock

12

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

13

1

$32.87

In stock

14

PISTON STD

806-11631-00-96

1
Out of stock

14

PISTON 1 O/S 0.25 002

(806-11635-00-00)

1
Out of stock

14

PISTON 2 O/S 0.50

806-11636-00-00

1
Out of stock

15

PISTON RINGSET STD

806-11601-00-00

1
Out of stock

15

PISTON RINGSET 1ST

(806-11601-10-00)

1
Out of stock

15

PISTON RINGSET 2ND

806-11601-20-00

1
Out of stock

16

PIN, PISTON

168-11633-00-00

1
Out of stock

17

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

18

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

19

OIL SEAL, SW-TYPE

93103-32054-00

1
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

22

PIN,DOWEL (168)

93604-12037-00

—
Out of stock
