1971 Yamaha SL338B Engine Cowl Diagram

← All diagrams

Find the part on the Engine Cowl diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

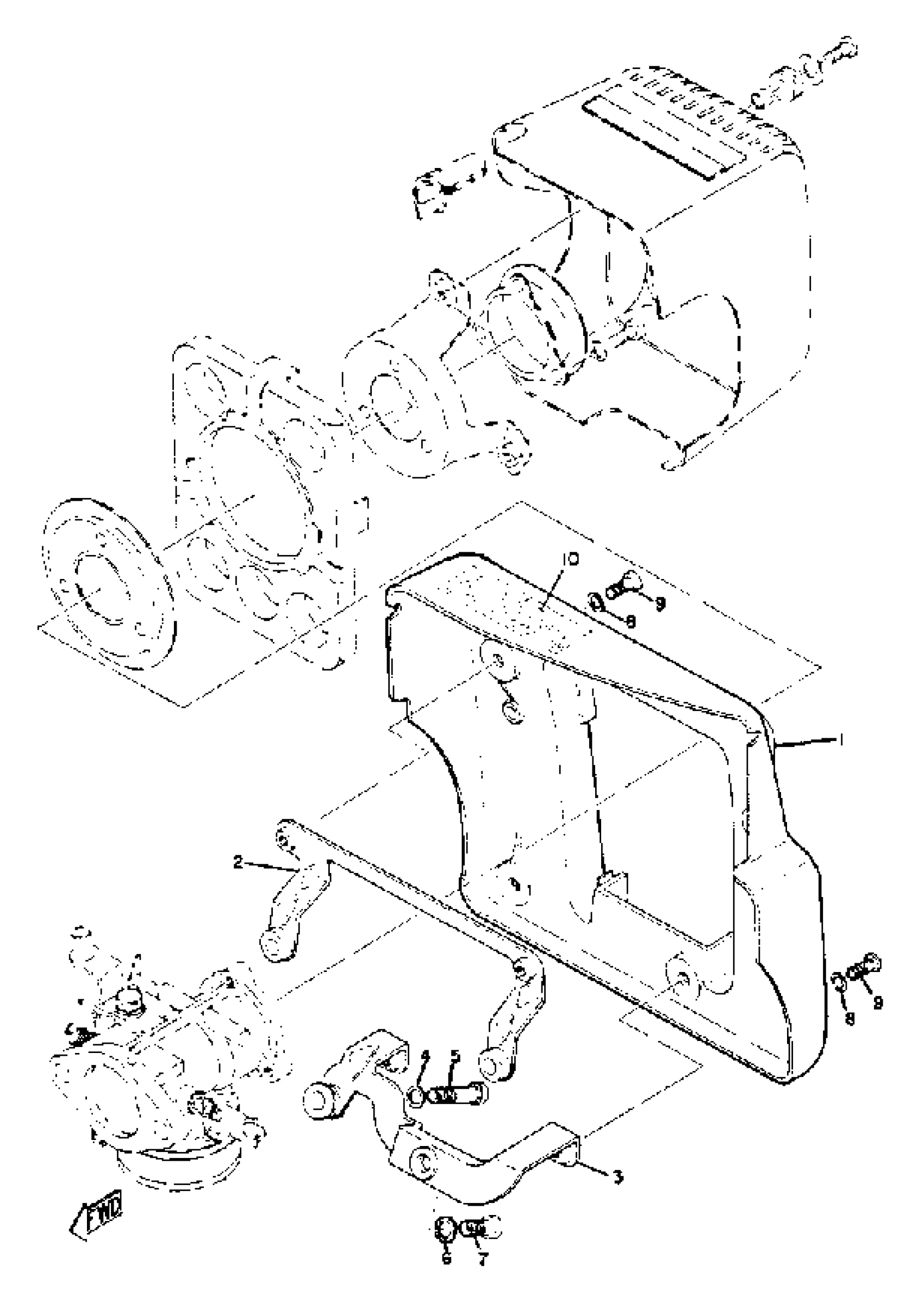

1971 Yamaha SL338B Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL, ENGINE

(810-77411-00-00)

1
Out of stock

2

BRACKET 1

(810-77421-00-00)

1
Out of stock

3

BRACKET 2

(810-77422-00-00)

1
Out of stock

4

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

5

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

8

WASHER, PLATE

90201-06061-00

1
Out of stock

9

SCREW, BIND (705)

98980-06016-00

1
Out of stock

10

INDICATOR, COWL

(810-77456-00-00)

1
Out of stock
