1971 Yamaha SL338B Frame Diagram

← All diagrams

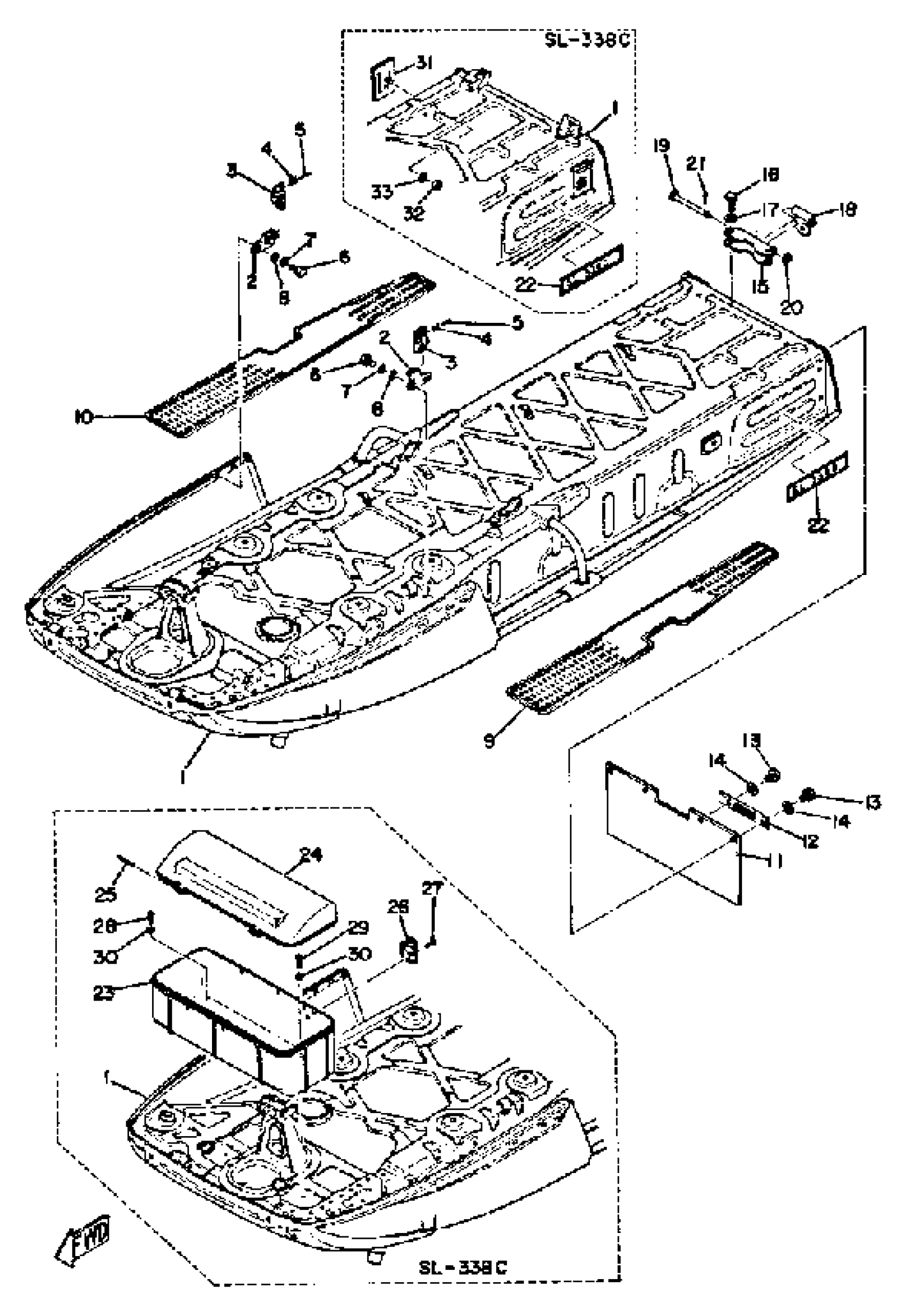

Find the part on the Frame diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(810-21910-00-00)

1
Out of stock

1

FRAME

(822-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

FLAP

(802-77595-02-00)

1
Out of stock

12

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

BRACKET, HITCH 2

(802-77592-00-00)

1
Out of stock

16

BOLT (682)

97095-06040-00

—

$2.36

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

19

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

PIN, COTTER

91490-25020-00

—

$2.94

In stock

22

EMBLEM 4

(810-77354-00-00)

1
Out of stock

22

EMBLEM 4

(824-77354-00-00)

1
Out of stock

23

LUGGAGE BOX ASSEMBLY

(822-77301-00-00)

1
Out of stock

24

COVER, LUGGAGE BOX

(822-77392-00-00)

1
Out of stock

25

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

26

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

27

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

28

SCREW, PAN

98507-06014-00

—

$6.18

In stock

29

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

31

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
