1969 Yamaha SL338 Steering Gate Diagram

← All diagrams

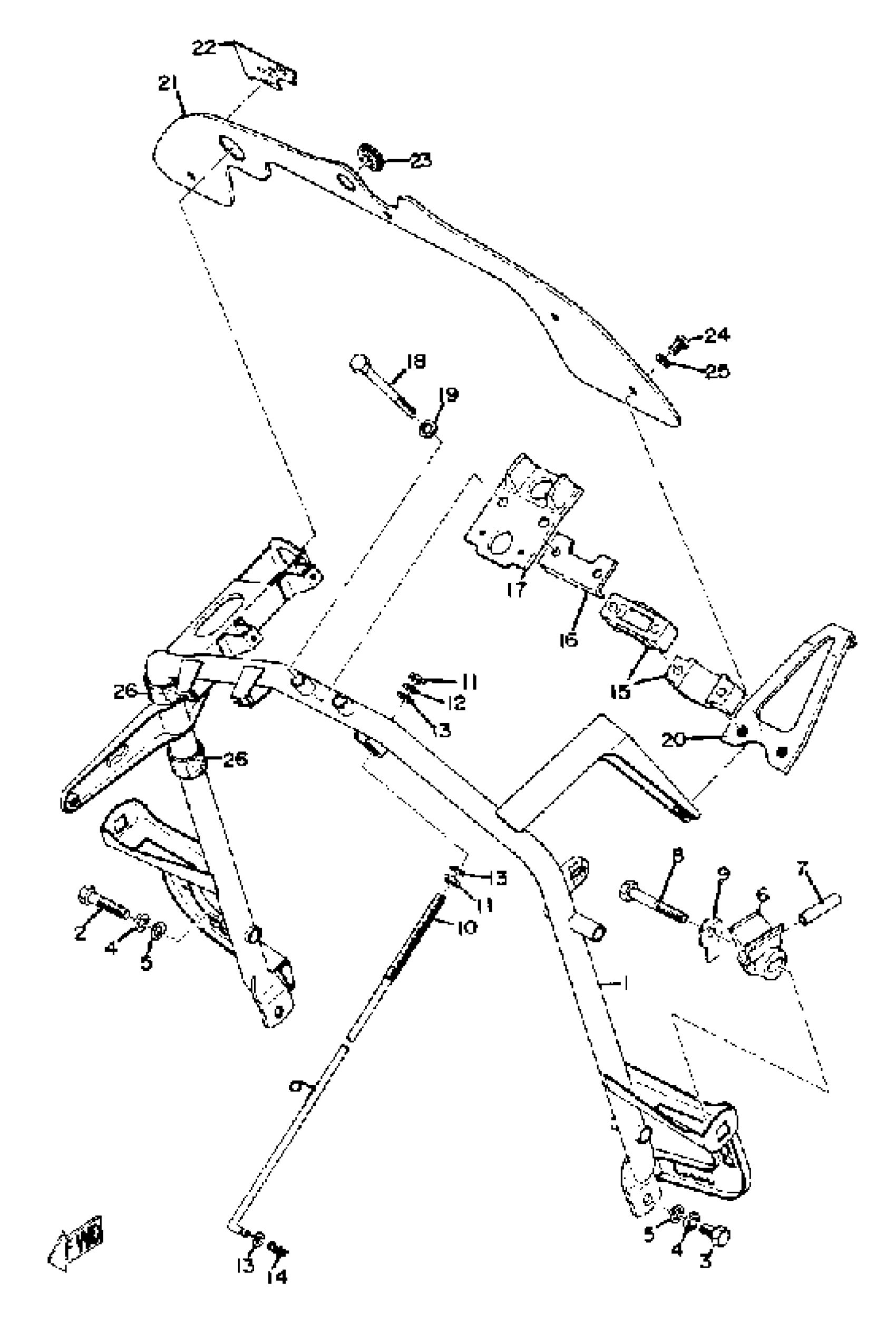

Find the part on the Steering Gate diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL338 Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

(806-23871-00-00)

1
Out of stock

2

BOLT

97013-08045-00

—
Out of stock

3

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

4

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

5

WASHER(6TC)

92907-08200-00

1
Out of stock

6

CLAMP 3

(806-77137-00-00)

1
Out of stock

7

STOPPER

(802-77188-00-00)

1
Out of stock

8

BOLT, HEXAGON

(97306-08060-00)

1
Out of stock

9

WASHER, LOCK

(90215-08039-00)

1
Out of stock

10

TENSION BAR

(806-23860-00-00)

1
Out of stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

15

BEARING, STRG UPPER

(806-23873-00-00)

1
Out of stock

16

HOLDER, BEARING

(802-23872-00-00)

1
Out of stock

17

DAMPER, SHROUD

(806-77196-00-00)

1
Out of stock

18

BOLT, HEXAGON

(97306-08085-00)

1
Out of stock

19

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

20

BRACKET 1

(806-77721-00-00)

1
Out of stock

21

PANEL, INSTRUMENT

(806-77711-00-00)

1
Out of stock

22

INDICATOR 1

(806-77741-00-00)

1
Out of stock

23

GROMMET

(102-82598-00-00)

1
Out of stock

24

SCREW, BINDING

98907-06012-00

—
Out of stock

25

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

26

DAMPER

(802-21746-00-00)

1
Out of stock
