1969 Yamaha SL338 SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

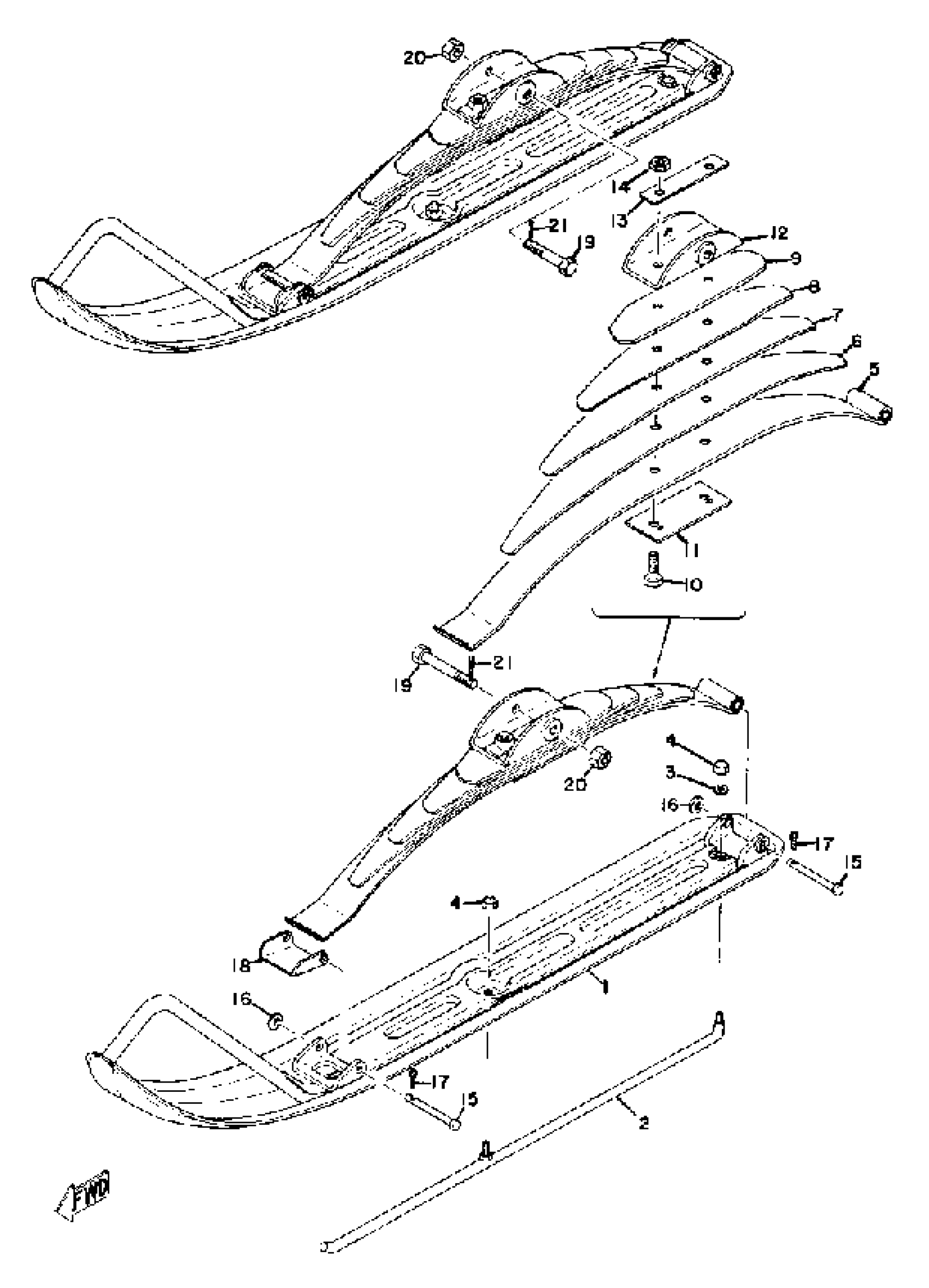

1969 Yamaha SL338 SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING ASSEMBLY 1

(806-23760-00-00)

1
Out of stock

1

SKI 1

(838-23710-01-00)

1
Out of stock

2

RUNNER 1

806-23731-01-00

1
Out of stock

2

RUNNER 1

838-23731-03-00

1
Out of stock

3

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock

5

. LEAF 1

806-23761-00-00

1
Out of stock

6

LEAF 2

(806-23762-00-00)

1
Out of stock

7

LEAF 3

(806-23763-00-00)

1
Out of stock

8

LEAF 4

(806-23764-00-00)

1
Out of stock

9

LEAF 5

(806-23771-00-00)

1
Out of stock

10

. BOLT

90101-10060-00

1
Out of stock

11

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

12

. SADDLE 1

806-23766-00-00

1
Out of stock

13

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

14

NUT(6TD)

95337-10600-00

—

$6.98

In stock

15

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

16

WASHER(6TC)

92907-08200-00

—
Out of stock

17

PIN COTTER

91490-30025-00

—
Out of stock

18

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

19

BOLT, WITH HOLE

(90102-10013-00)

1
Out of stock

20

NUT, SLOTTED

95306-10900-00

1
Out of stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock
