1969 Yamaha SL338 Shroud Diagram

← All diagrams

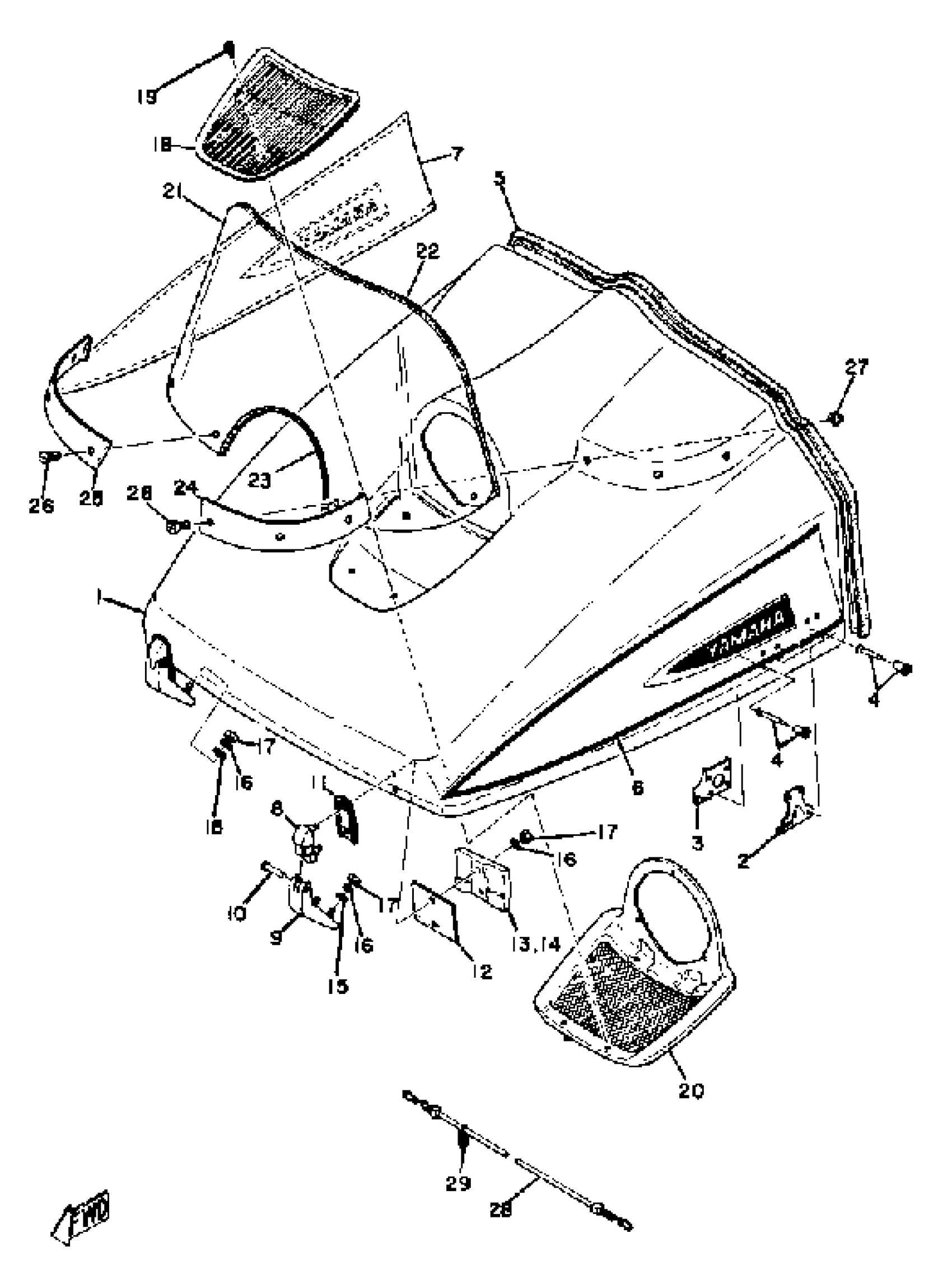

Find the part on the Shroud diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL338 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(806-77111-00-00)

1
Out of stock

2

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

3

CLAMP 4

(806-77138-00-00)

1
Out of stock

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock

5

TRIM 2

(806-77166-00-00)

1
Out of stock

6

ORNAMENT 1

(806-77163-00-00)

1
Out of stock

7

ORNAMENT 2

(806-77164-00-00)

1
Out of stock

8

HINGE 1

(806-77145-00-00)

1
Out of stock

9

HINGE 3

806-77147-00-00

1
Out of stock

10

PIN (806-77157-00)

90243-05002-00

1
Out of stock

11

DAMPER 1

(806-77198-00-00)

1
Out of stock

12

DAMPER 2

(806-77199-00-00)

1
Out of stock

13

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

14

PLATE, BACK UP 2

(806-77154-00-00)

1
Out of stock

15

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

16

WASHER, SPRING

92907-06100-00

—
Out of stock

17

NUT(6TA)

95317-06600-00

—

$2.69

In stock

18

LOUVER 1

(806-77131-00-00)

1
Out of stock

19

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

20

HOLDER, ROD 1

(806-77139-00-00)

1
Out of stock

21

WINDSHIELD

(806-77210-00-00)

1
Out of stock

22

TRIM, UPPER

(806-77213-00-00)

1
Out of stock

23

TRIM 4

(806-77216-00-00)

1
Out of stock

24

TRIM, LOWER

(806-77214-00-00)

1
Out of stock

25

TRIM 3

806-77215-00-00

1
Out of stock

26

SCREW, BIND

98903-05016-00

1
Out of stock

27

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

28

STOPPER, SHROUD

(806-77118-00-00)

1
Out of stock

29

CLAMP, ROD

(806-77159-00-00)

1
Out of stock
