1969 Yamaha SL338 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

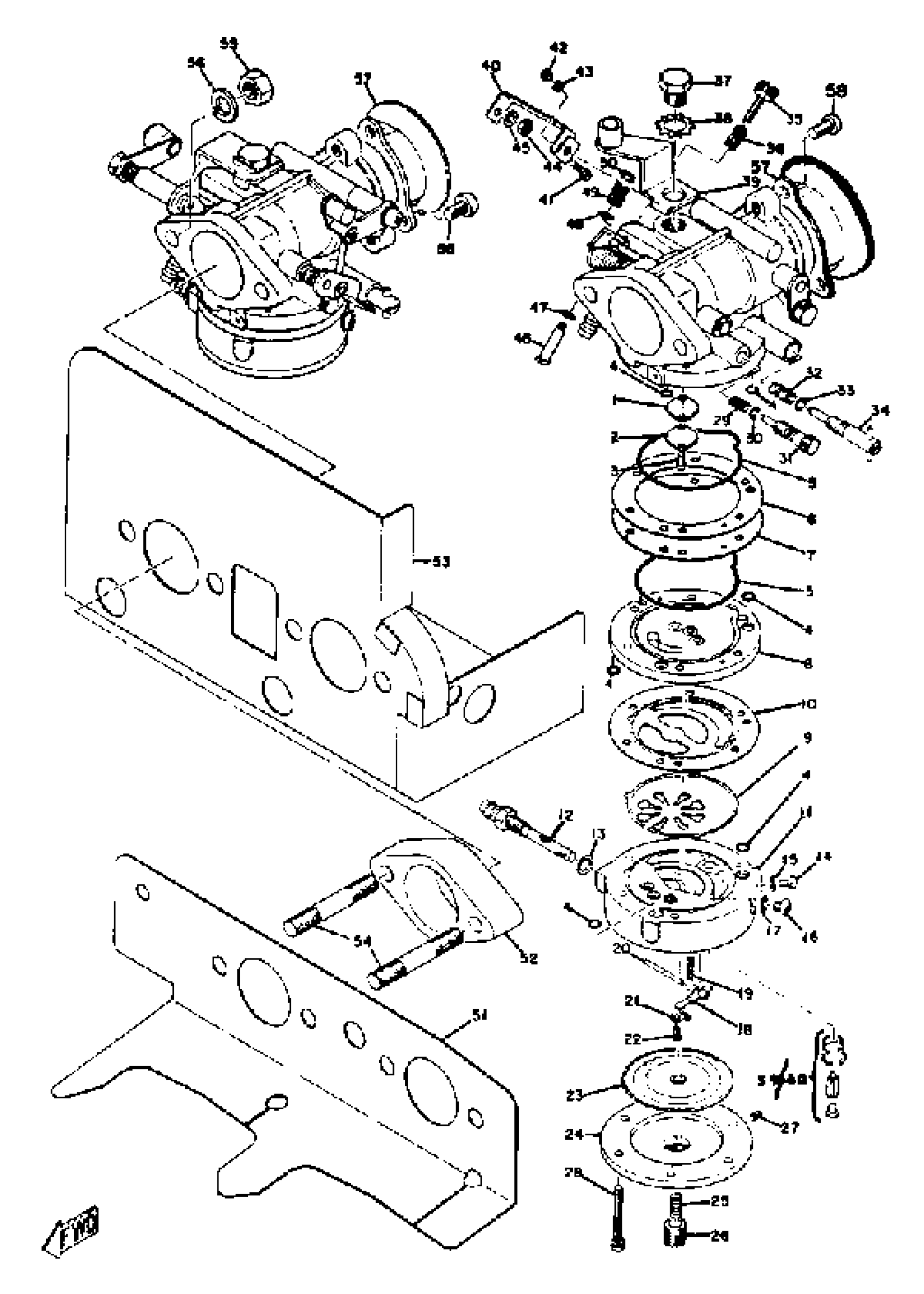

1969 Yamaha SL338 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(806-14501-00-00)

1
Out of stock

1

GASKET

(806-14537-00-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(806-14502-00-00)

1
Out of stock

2

PLATE

(806-14527-00-00)

1
Out of stock

3

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

4

O-RING

(806-14561-00-00)

1
Out of stock

5

. O-RING

806-14562-00-00

1
Out of stock

6

. GASKET

806-14536-00-00

1
Out of stock

7

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

8

BODY, PUMP 1

(806-14542-00-00)

1
Out of stock

9

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

10

GASKET

(806-14553-00-00)

1
Out of stock

11

BODY, PUMP 2

(806-14543-00-00)

1
Out of stock

12

JOINT

(806-14568-00-00)

1
Out of stock

13

WASHER

(806-14558-00-00)

1
Out of stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

. WASHER

806-14559-00-00

1
Out of stock

16

SCREW

(806-14567-00-00)

1
Out of stock

17

WASHER

(806-14557-00-00)

1
Out of stock

18

ARM, FLOAT

(806-14547-00-00)

1
Out of stock

19

SPRING

(806-14556-00-00)

1
Out of stock

20

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

21

PLATE, PIN FITTING

(806-14549-00-00)

1
Out of stock

22

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

23

DIAPHRAGM

(806-14545-00-00)

1
Out of stock

24

BODY, PUMP 3

(806-14544-00-00)

1
Out of stock

25

SPRING

(806-14555-00-00)

1
Out of stock

26

SCREW, STOP

(806-14565-01-00)

1
Out of stock

27

SCREW, STOP

(806-14566-00-00)

1
Out of stock

28

SCREW

(824-14567-00-00)

1
Out of stock

29

SPRING, AJST SCREW

(806-14531-00-00)

1
Out of stock

30

O-RING

(806-14563-00-00)

1
Out of stock

31

SCREW, ADJUST

(806-14522-00-00)

1
Out of stock

32

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

33

O-RING

(806-14564-00-00)

1
Out of stock

34

SCREW, ADJUST

(806-14521-00-00)

1
Out of stock

35

SCREW, STOP

(806-14523-00-00)

1
Out of stock

36

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

37

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

38

WASHER (688)

92990-08400-00

1

$3.46

In stock

39

. BRACKET, THROTTLE

806-14571-00-00

1
Out of stock

40

CONNECTOR

(806-14588-00-00)

1
Out of stock

41

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

42

NUT

(806-14595-00-00)

1
Out of stock

43

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

44

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

45

WASHER

(806-14598-00-00)

1
Out of stock

46

SCREW

(806-14591-00-00)

1
Out of stock

47

. WASHER

806-14596-00-00

1
Out of stock

48

WASHER

(806-14597-00-00)

1
Out of stock

49

SPRING

(806-14579-00-00)

1
Out of stock

50

NUT

(806-14594-00-00)

1
Out of stock

51

GASKET

(807-13557-00-00)

1
Out of stock

52

MANIFOLD, INTAKE

(807-13555-00-00)

1
Out of stock

53

GASKET

(807-13567-00-00)

1
Out of stock

54

BOLT, STUD

(90116-08056-00)

1
Out of stock

55

. NUT

95380-08700-00

1

$3.07

In stock

56

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

57

FUNNEL

(807-14479-00-00)

1
Out of stock

58

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

59

VALVE SEAT ASSEMBLY

(806-14590-10-00)

1
Out of stock

60

VALVE SEAT ASSEMBLY

(806-14590-20-00)

1
Out of stock
