1969 Yamaha SL338 Engine Cowl Diagram

← All diagrams

Find the part on the Engine Cowl diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

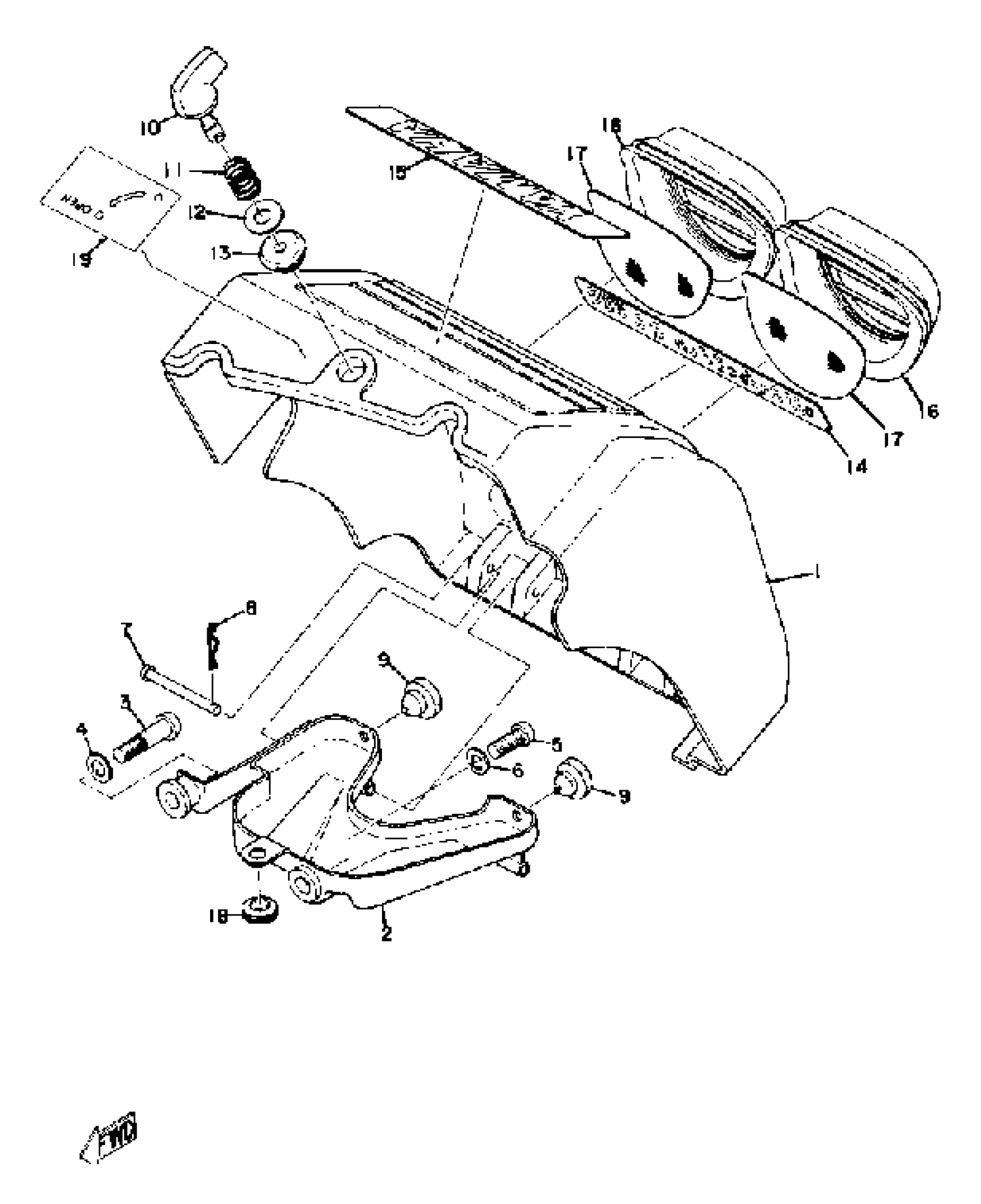

1969 Yamaha SL338 Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL, ENGINE

(806-77411-00-00)

1
Out of stock

2

BRACKET 1

(806-77421-00-00)

1
Out of stock

3

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

4

WASHER, PLATE

(90201-09116-00)

1
Out of stock

5

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

SHAFT 1

(806-77465-00-00)

1
Out of stock

8

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

9

DAMPER 1

(806-77461-00-00)

1
Out of stock

10

FASTNER

(806-42753-00-00)

1
Out of stock

11

SPRING

(806-42764-00-00)

1
Out of stock

12

UNAVAILABLE IN PRICE BOOK (615-42751-00)

90201-08100-03

1
Out of stock

13

BUSHING

(615-42746-00-00)

1
Out of stock

14

EMBLEM 1

(806-77351-00-00)

1
Out of stock

15

EMBLEM 1

(806-77451-00-00)

1
Out of stock

16

LOUVER 1

(806-77441-00-00)

1
Out of stock

17

LOUVER 3

(806-77443-00-00)

1
Out of stock

18

GROMMET 1

(806-77431-00-00)

1
Out of stock

19

INDICATOR, COWL

(806-77456-00-00)

1
Out of stock
