1969 Yamaha SL338 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

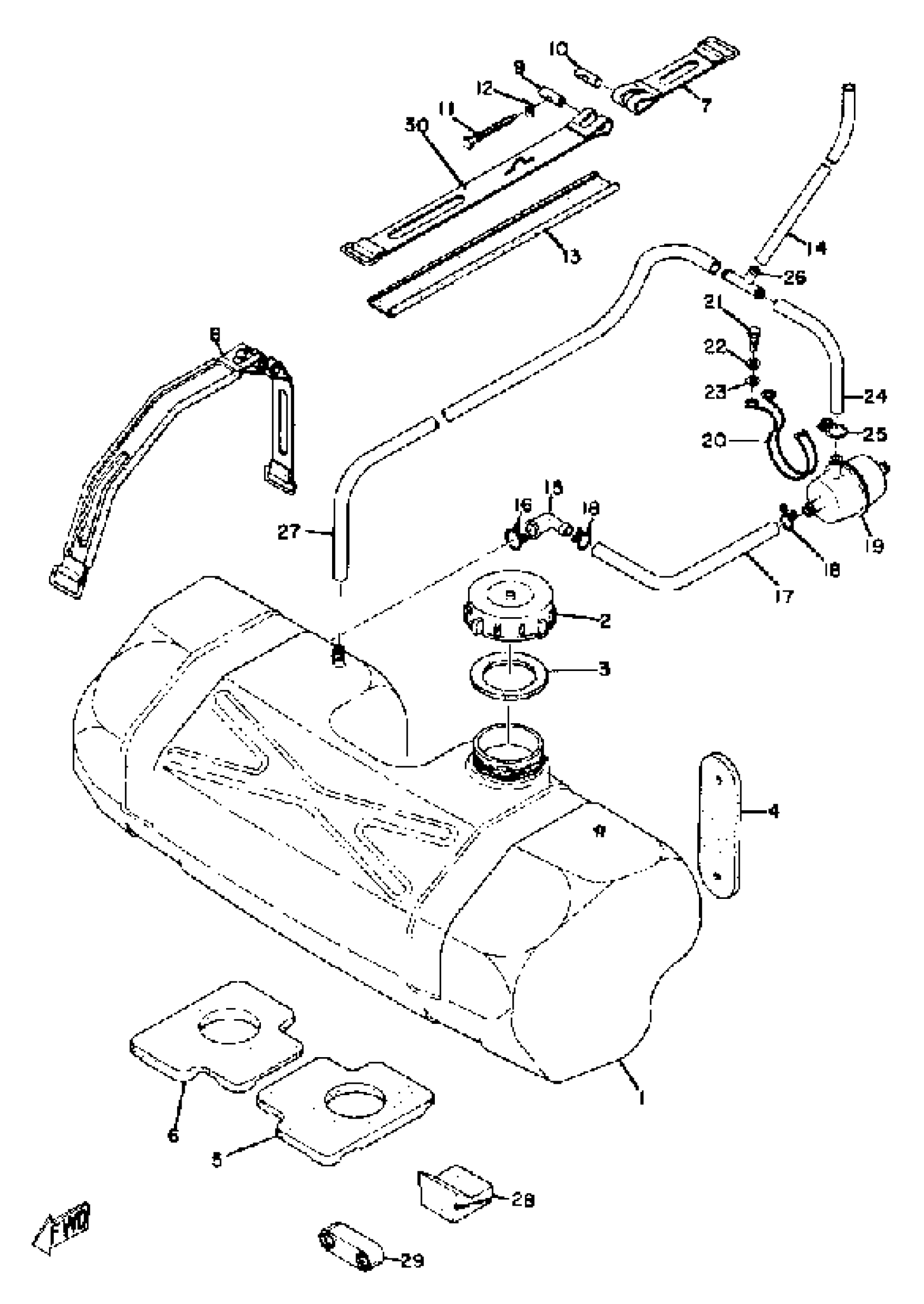

1969 Yamaha SL338 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

806-24111-00-00

1
Out of stock

2

BODY, CAP

(809-24611-00-00)

1
Out of stock

3

GASKET, CAP

(806-24612-00-00)

1
Out of stock

4

PROTECTOR, FUEL TNK

(806-24141-00-00)

1
Out of stock

5

DAMPER, LOCATING 1

(806-24181-00-00)

1
Out of stock

6

DAMPER, LOCATING 2

(806-24182-00-00)

1
Out of stock

7

BAND, TNK FITTING 1

806-24173-00-00

1
Out of stock

8

BAND, TNK FITTING 2

806-24199-00-00

1
Out of stock

9

CLAMP

806-24135-00-00

—

$3.20

In stock

10

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

11

SCREW, HEXAGON

(90153-05002-00)

1
Out of stock

12

WASHER, LOCK

(90215-05058-00)

1
Out of stock

13

DAMPER, LOCATING 3

806-24183-00-00

1
Out of stock

14

PIPE 10

(806-24321-00-00)

1
Out of stock

15

PIPE, SUCTION 1

(806-24335-00-00)

1
Out of stock

16

CLIP, PIPE 3

(806-24358-00-00)

1
Out of stock

17

PIPE, FUEL 1

(806-24311-00-00)

1
Out of stock

18

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

19

FILTER ASSEMBLY

(806-24560-01-00)

1
Out of stock

20

HOLDER, FILTER

(806-24558-00-00)

1
Out of stock

21

BOLT, HEXAGON

(97306-05015-00)

1
Out of stock

22

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

23

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

24

BREATHER, FILTER

(806-24559-00-00)

1
Out of stock

25

CLIP

90467-090A2-00

—

$2.51

In stock

26

PIPE, JOINT

801-24376-00-00

—

$11.18

In stock

27

PIPE, OVERFLOW

(806-24318-00-00)

1
Out of stock

28

DAMPER, LOCATING 4

(806-24184-00-00)

1
Out of stock

29

SEAT, TNK PROTECTOR

(806-24193-00-00)

1
Out of stock

30

BAND, TANK FTNG 3

806-24133-00-00

1
Out of stock
