1969 Yamaha SL338 Front Axle Diagram

← All diagrams

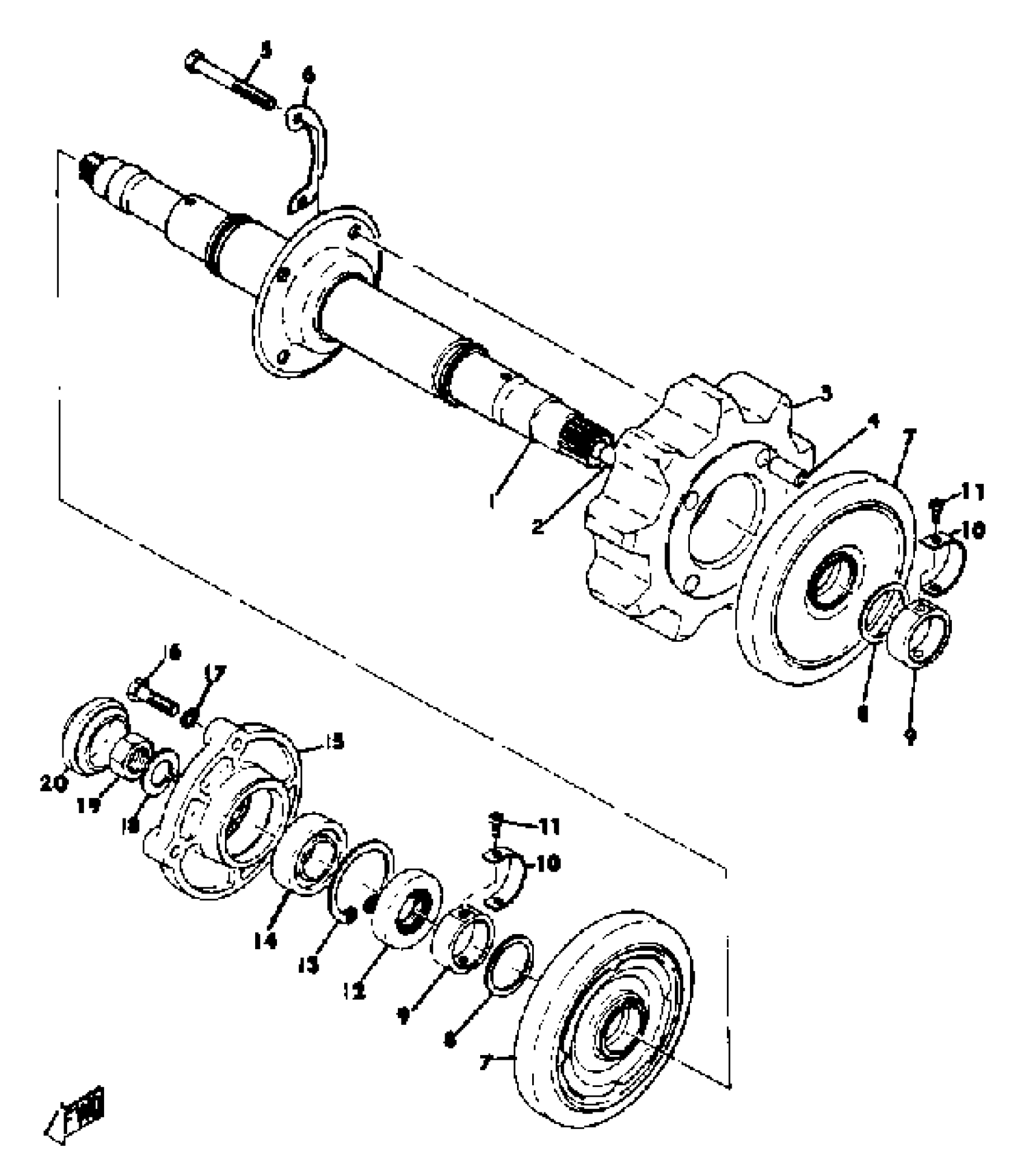

Find the part on the Front Axle diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL338 Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT AXLE

806-47510-00-00

1
Out of stock

2

PLUG

(802-47575-00-00)

1
Out of stock

3

WHEEL, SPROCKET 1

(806-47531-00-00)

1
Out of stock

4

COLLAR

90387-09072-00

1
Out of stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

WASHER, LOCK

802-47517-00-00

1
Out of stock

7

GUIDE WHEEL

(806-47530-00-00)

1
Out of stock

8

WASHER (8H0)

90201-34683-00

1
Out of stock

9

COLLAR

(806-47536-00-00)

1
Out of stock

10

WASHER, LOCK

(806-47539-00-00)

1
Out of stock

11

SCREW, HEXAGON

90153-06004-00

1
Out of stock

12

OIL SEAL, SDD-TYPE

(93105-30014-00)

1
Out of stock

13

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

14

1

$35.25

In stock

15

HOUSING, FRONT AXLE

(802-47551-00-00)

1
Out of stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER(N15)

92907-18100-00

—

$7.09

In stock

19

NUT

90170-18089-00

1
Out of stock

20

CAP

(802-47552-01-00)

1
Out of stock
