1969 Yamaha SL338 Rear Axle Diagram

← All diagrams

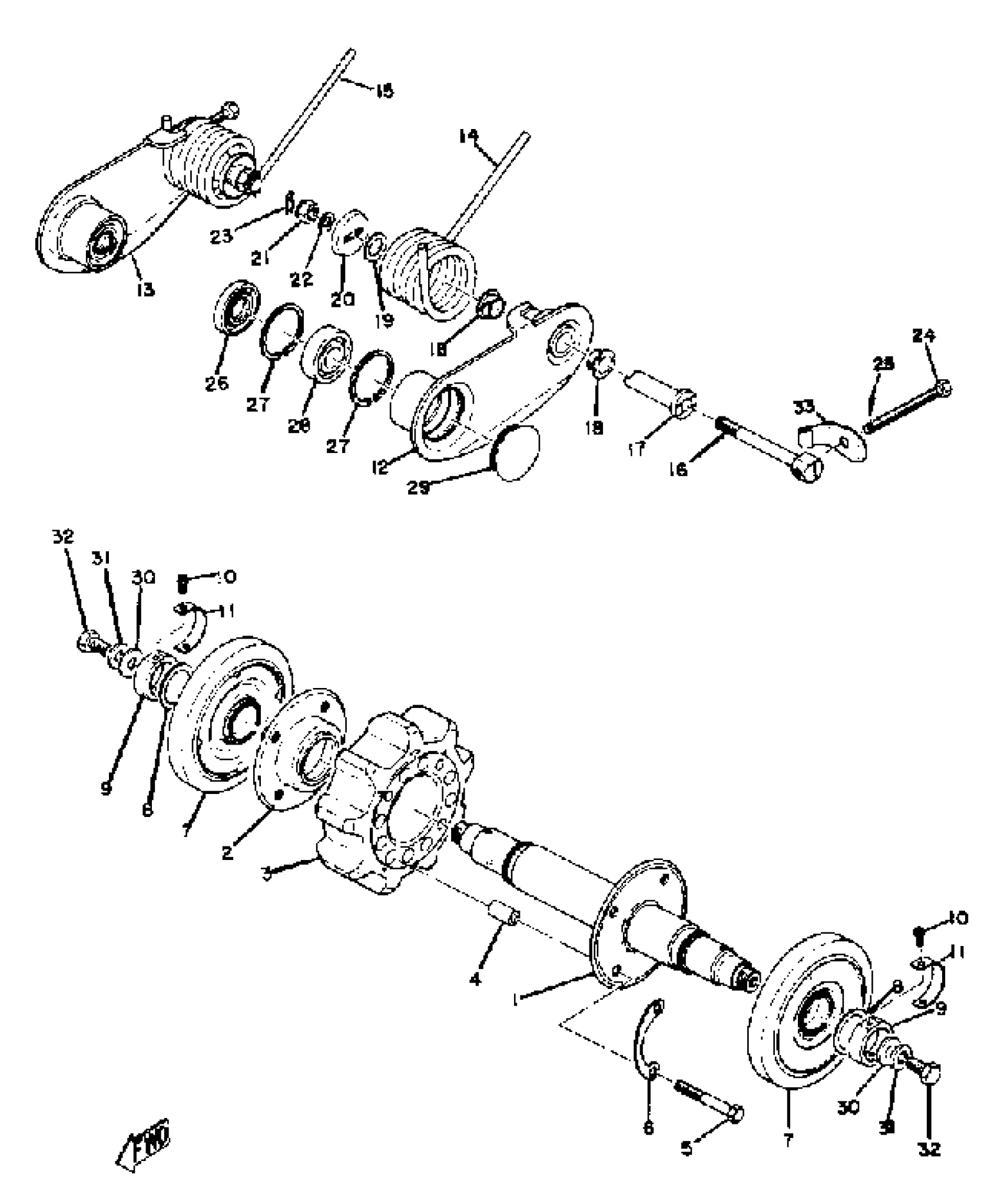

Find the part on the Rear Axle diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL338 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR AXLE

(806-47520-00-00)

1
Out of stock

2

RIM, SPROCKET WHL 2

(806-47522-00-00)

1
Out of stock

3

WHEEL, SPROCKET 1

(806-47531-00-00)

1
Out of stock

4

COLLAR

90387-09072-00

1
Out of stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

WASHER, LOCK

802-47517-00-00

1
Out of stock

7

GUIDE WHEEL

(806-47530-00-00)

1
Out of stock

8

WASHER (8H0)

90201-34683-00

1
Out of stock

9

COLLAR

(806-47536-00-00)

1
Out of stock

10

SCREW, HEXAGON

90153-06004-00

1
Out of stock

11

WASHER, LOCK

(806-47539-00-00)

1
Out of stock

12

ARM, REAR PIVOT 1

(806-47361-00-00)

1
Out of stock

13

ARM, REAR PIVOT 2 (R.H)

806-47362-00-00

1
Out of stock

14

SPRING, TORSION

90508-70115-00

1
Out of stock

15

SPRING, TORSION (806-47364-00)

90508-70085-00

1
Out of stock

16

SCREW, SPEC''L SHAPE

(90149-10042-00)

1
Out of stock

17

COLLAR

806-47369-00-00

1
Out of stock

18

BUSH, PIVOT

(806-47371-00-00)

1
Out of stock

19

WASHER

(806-47384-00-00)

1
Out of stock

20

WASHER 1

(806-47374-00-00)

1
Out of stock

21

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

24

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

1
Out of stock

25

PIN, COTTER

91490-30030-00

—

$7.15

In stock

26

OIL SEAL (25X47X7-801)

93102-25044-00

—
Out of stock

27

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

28

—

$33.86

In stock

29

CAP

802-47377-00-00

1
Out of stock

30

WASHER, PLATE (12.5-30-2.6)

90201-16513-00

1
Out of stock

31

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

32

BOLT(6TA)

97027-12020-00

—

$3.91

In stock

33

WASHER, LOCK (806-47378-00)

90215-09072-00

1
Out of stock
