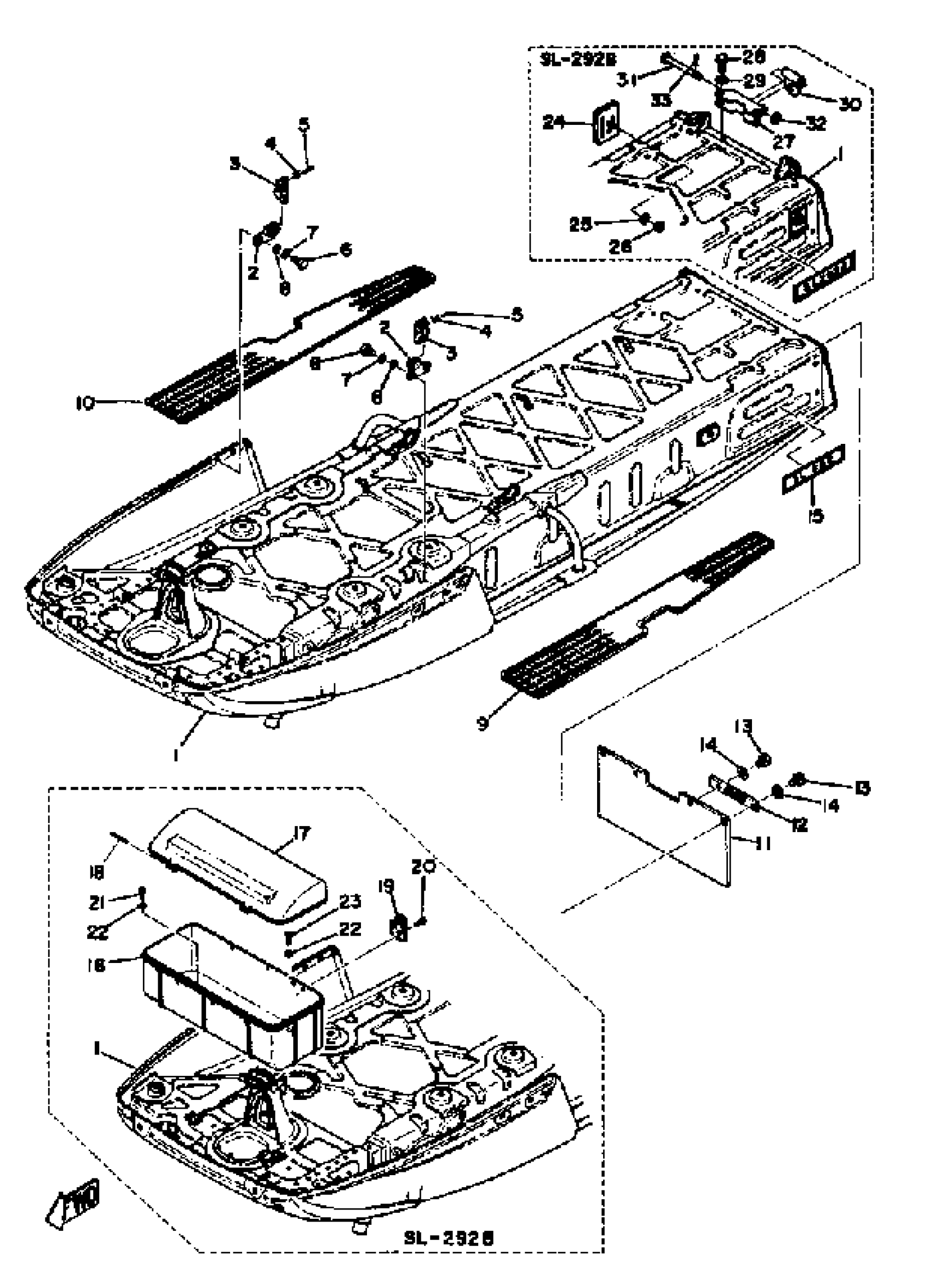

Find the part on the Frame SL292 - B diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Frame SL292 - B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(822-21910-00-00)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

FLAP

(802-77595-02-00)

1
Out of stock

12

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

EMBLEM 4 002

(812-77354-00-00)

1
Out of stock

15

EMBLEM 4

(822-77354-00-00)

1
Out of stock

16

LUGGAGE BOX ASSEMBLY

(822-77301-00-00)

1
Out of stock

17

COVER, LUGGAGE BOX

(822-77392-00-00)

1
Out of stock

18

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

19

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

20

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

24

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

BRACKET, HITCH 2

(802-77592-00-00)

1
Out of stock

28

BOLT (682)

97095-06040-00

—

$2.36

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

31

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

32

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

33

PIN, COTTER

91490-25020-00

—

$2.94

In stock
