1971 Yamaha SL292 Bumper SL292 - B Diagram

← All diagrams

Find the part on the Bumper SL292 - B diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

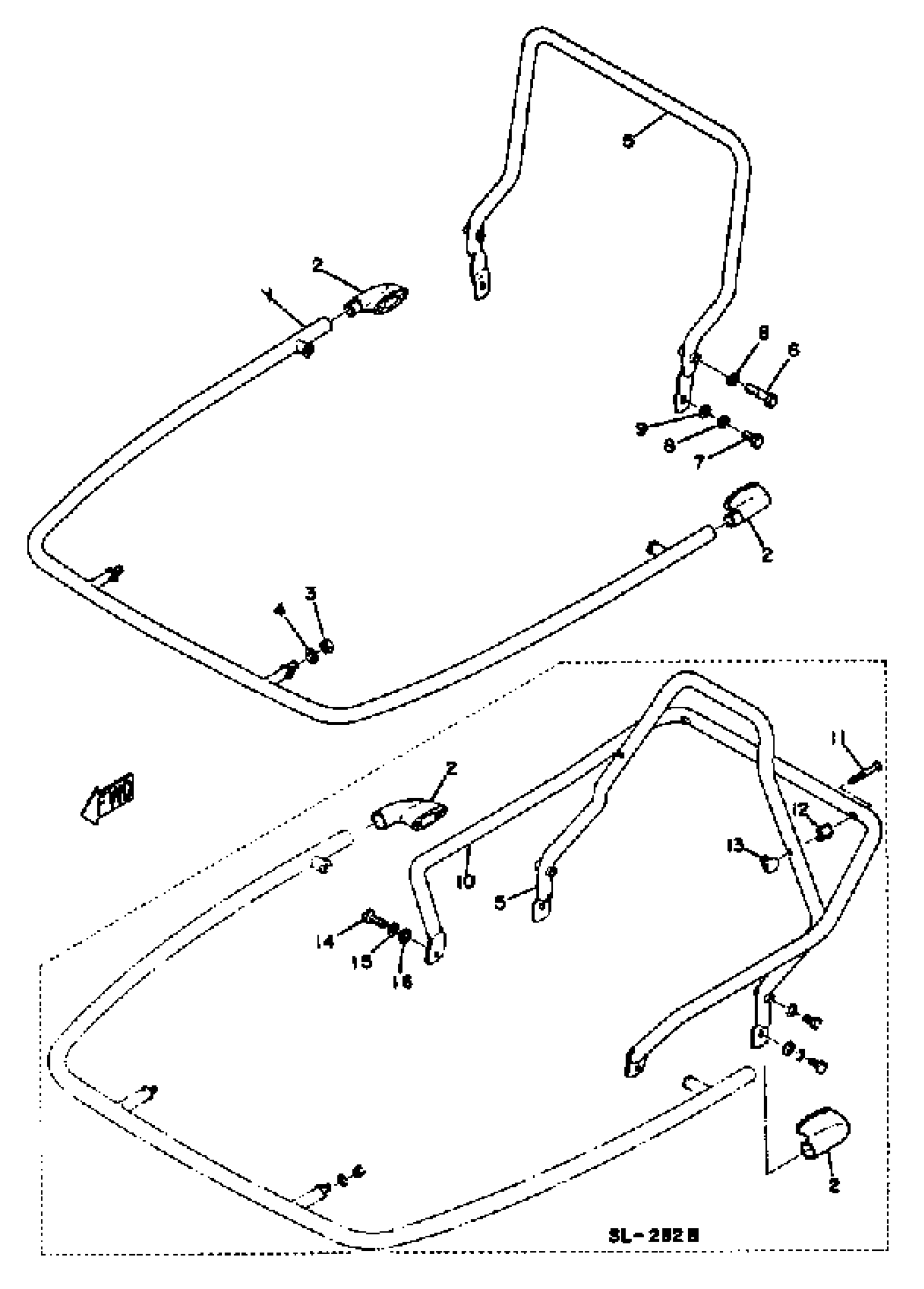

1971 Yamaha SL292 Bumper SL292 - B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER (806-77510-00)

821-77510-00-00

1
Out of stock

2

END, BUMPER

(806-77523-00-00)

1
Out of stock

2

END, BUMPER

821-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

BUMPER, REAR 1 001

(812-77541-00-00)

1
Out of stock

5

BUMPER, REAR 1

822-77541-00-00

1
Out of stock

6

BOLT

97013-08045-00

—
Out of stock

7

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

GRIP, ASSIST 1

822-77571-00-00

1
Out of stock

11

SCREW

92601-06050-00

1
Out of stock

12

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

13

NUT, SPECIAL

806-77573-00-00

1
Out of stock

14

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
