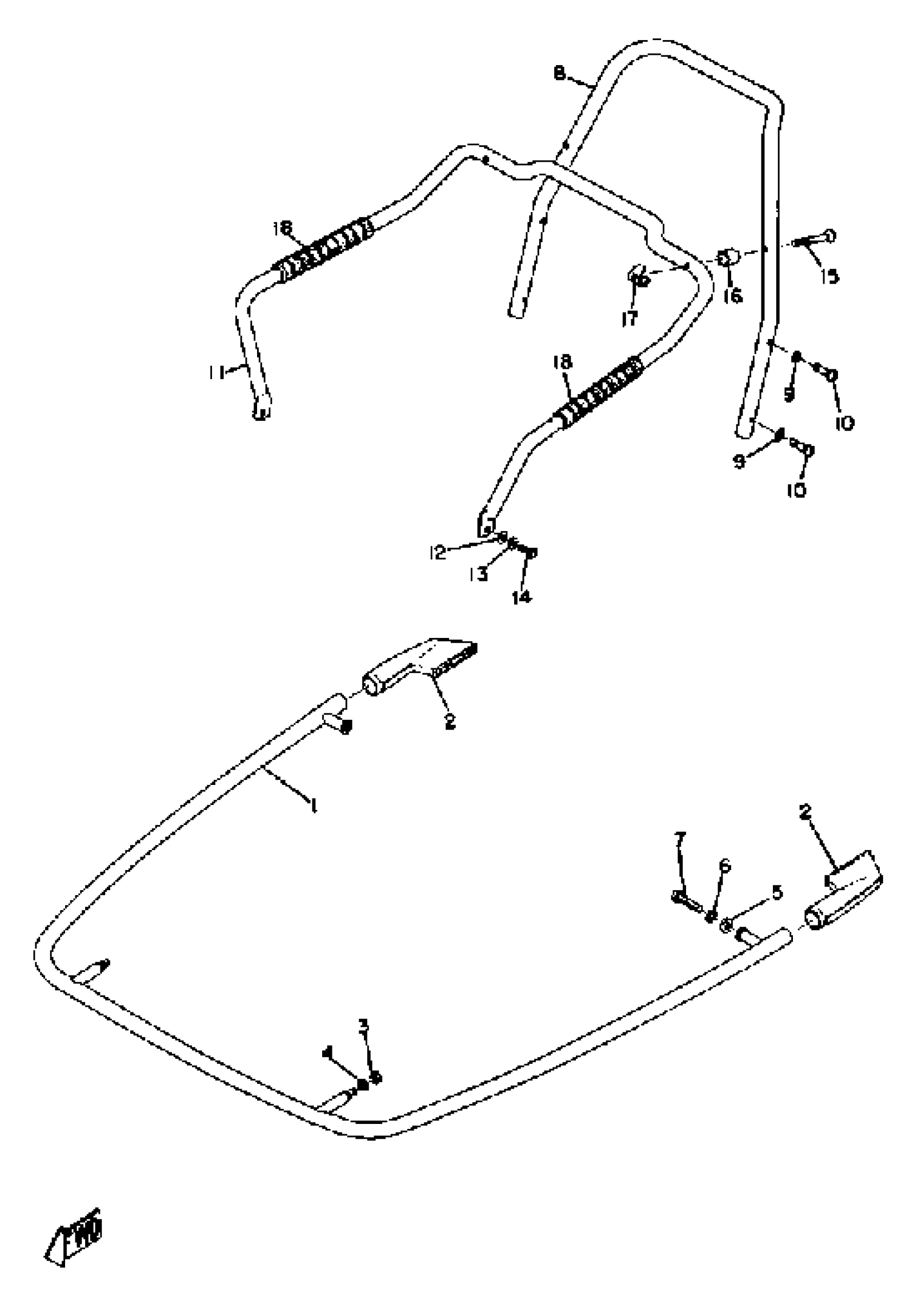

Find the part on the Bumper SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Bumper SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

841-77510-00-00

1
Out of stock

2

END, BUMPER

838-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLATE

(90201-08456-00)

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

8

BUMPER, REAR 1

(841-77541-00-00)

1
Out of stock

9

WASHER

92990-06500-00

1
Out of stock

10

SCREW, COUNTERSUNK

90152-06003-00

1
Out of stock

11

GRIP, ASSIST 1

841-77571-00-00

1
Out of stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

SCREW, SPEC''L SHAPE

90149-06054-00

1
Out of stock

16

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

17

NUT, SPECIAL

806-77573-00-00

1
Out of stock

18

COVER, ASSIST GRIP

838-77575-00-00

1
Out of stock
