1971 Yamaha SL292 Engine Cowl SL292C Diagram

← All diagrams

Find the part on the Engine Cowl SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

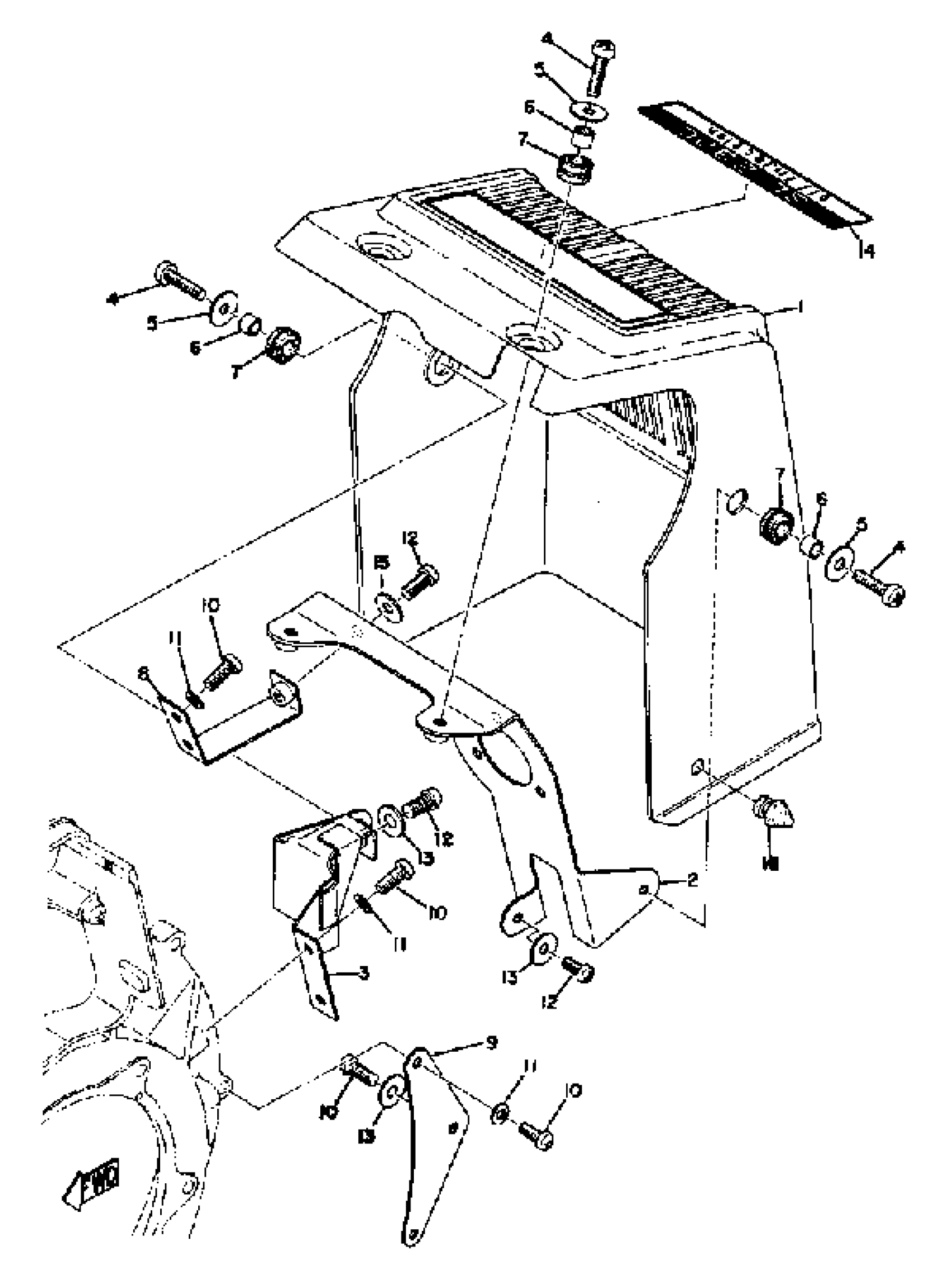

1971 Yamaha SL292 Engine Cowl SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL, ENGINE

(839-77411-02-00)

1
Out of stock

2

BRACKET 1

(839-77421-01-00)

1
Out of stock

3

BRACKET 3

(839-77423-03-00)

1
Out of stock

4

SCREW, PAN

98517-06020-00

1
Out of stock

5

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

6

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

7

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

8

BRACKET 2

839-77422-01-00

1
Out of stock

9

BRACKET 4

(839-77424-00-00)

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

14

EMBLEM 1

(839-77451-00-00)

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

DAMPER 1

(839-77461-00-00)

1
Out of stock
