1971 Yamaha SL292 Decompression Valve SL292 - B - C Diagram

← All diagrams

Find the part on the Decompression Valve SL292 - B - C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

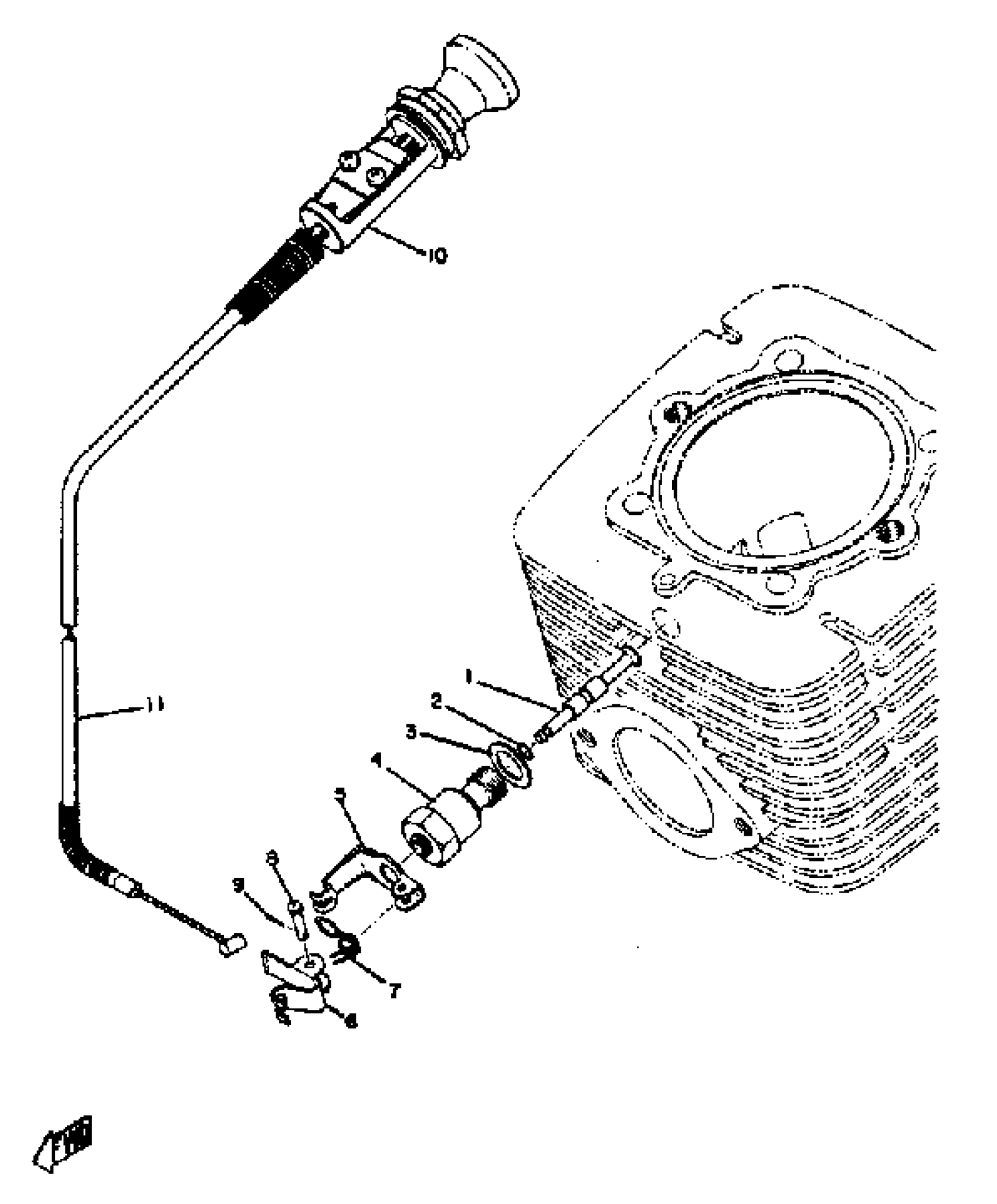

1971 Yamaha SL292 Decompression Valve SL292 - B - C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, DCOMP 001

(812-12281-00-00)

1
Out of stock

1

VALVE, DCOMP

822-12281-00-00

1
Out of stock

2

O-RING (210)

93210-04092-00

1

$2.88

In stock

3

GASKET

812-11198-00-00

1

$6.46

In stock

4

BRACKET, DCOMP 001

812-12283-00-00

1
Out of stock

4

BRACKET, DCOMP

822-12283-00-00

1
Out of stock

5

HOLDER, CABLE

812-12273-00-00

1
Out of stock

6

LEVER, DCOMP

275-12282-01-00

1
Out of stock

7

SPRING, TORSION

90508-10183-00

1
Out of stock

8

PIN, CLEVIS

90240-03002-00

1
Out of stock

9

PIN, COTTER

91490-16020-00

1

$6.23

In stock

10

DCOMP SWITCH ASSEMBLY 001

(812-12270-00-00)

1
Out of stock

10

DCOMP SWITCH ASSEMBLY

839-12270-00-00

1
Out of stock

11

CABLE, DCOMP 001

(812-12292-00-00)

1
Out of stock

11

CABLE, DCOMP

(839-12292-00-00)

1
Out of stock
← Crankcase - Cylinder - Cylinder Head SL292C Engine Bracket SL292 - B →

More Engine diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
