1971 Yamaha SL292 Engine Bracket SL292 - C Diagram

← All diagrams

Find the part on the Engine Bracket SL292 - C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

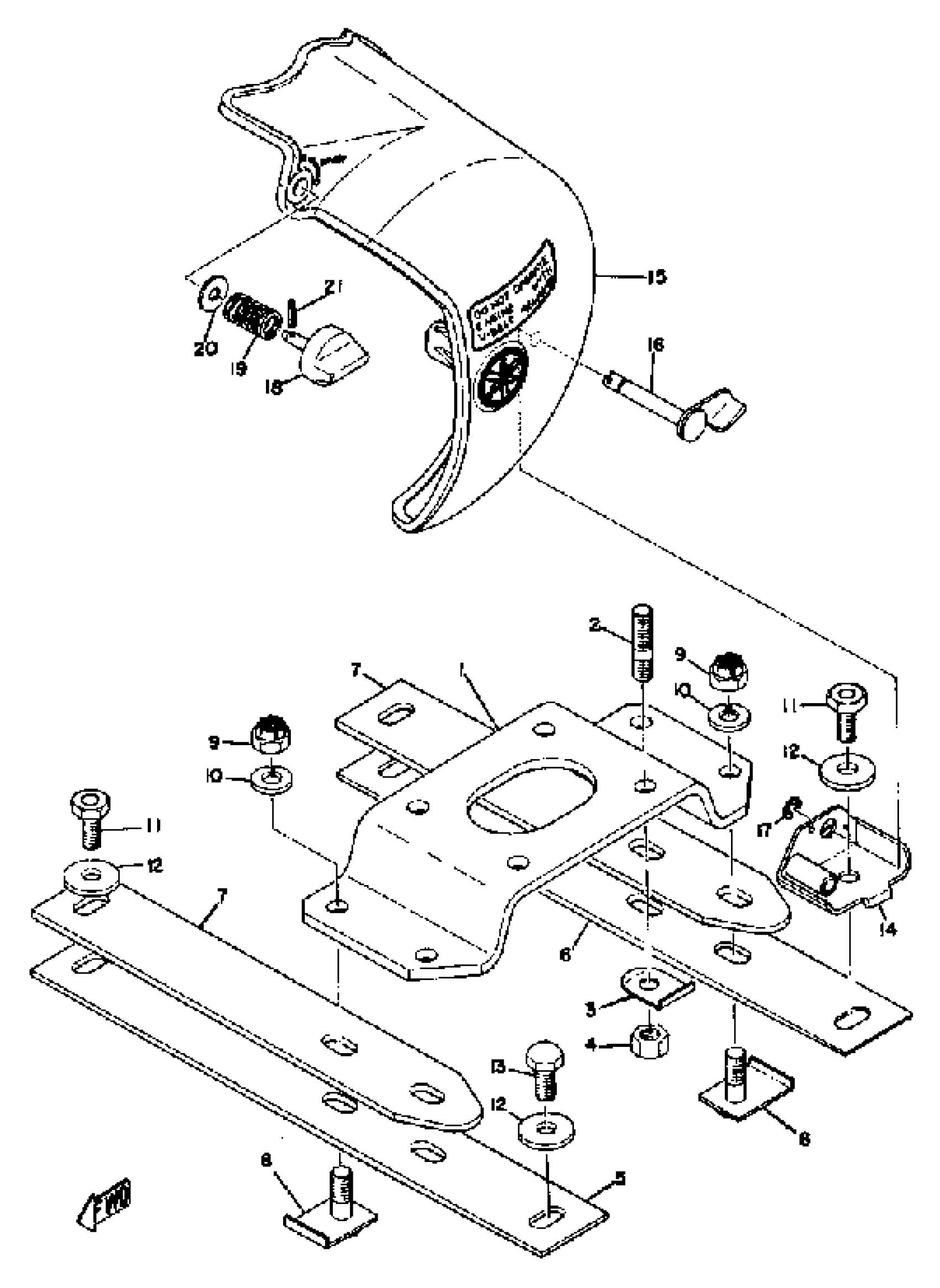

1971 Yamaha SL292 Engine Bracket SL292 - C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(839-21411-01-00)

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

WASHER, LOCK

(839-21493-00-00)

1
Out of stock

4

NUT(3BM)

95314-10600-00

1

$1.74

In stock

5

BRACKET, ENGINE 2

(839-21419-01-00)

1
Out of stock

6

BRACKET, ENGINE 3

839-21429-01-00

1
Out of stock

7

BRACKET, ENG LOWER

(839-21489-00-00)

1
Out of stock

8

BOLT, ENG MNTNG 2

(839-21482-00-00)

1
Out of stock

9

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

10

TOOL

UNA-VAILA-BL-EI

1
Out of stock

11

BOLT

90101-10055-00

1
Out of stock

12

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

13

BOLT, DOME HEAD

(90106-10014-00)

1
Out of stock

14

BRACKET 1

(829-77315-00-00)

1
Out of stock

15

GUARD, DRIVE

(841-77311-00-00)

1
Out of stock

16

ARM, FITTING

806-77314-00-00

1
Out of stock

17

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

18

KNOB

(806-77324-00-00)

1
Out of stock

19

SPRING 1

806-77325-00-00

1
Out of stock

20

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

21

PIN, SPRING

91690-25016-00

—
Out of stock
