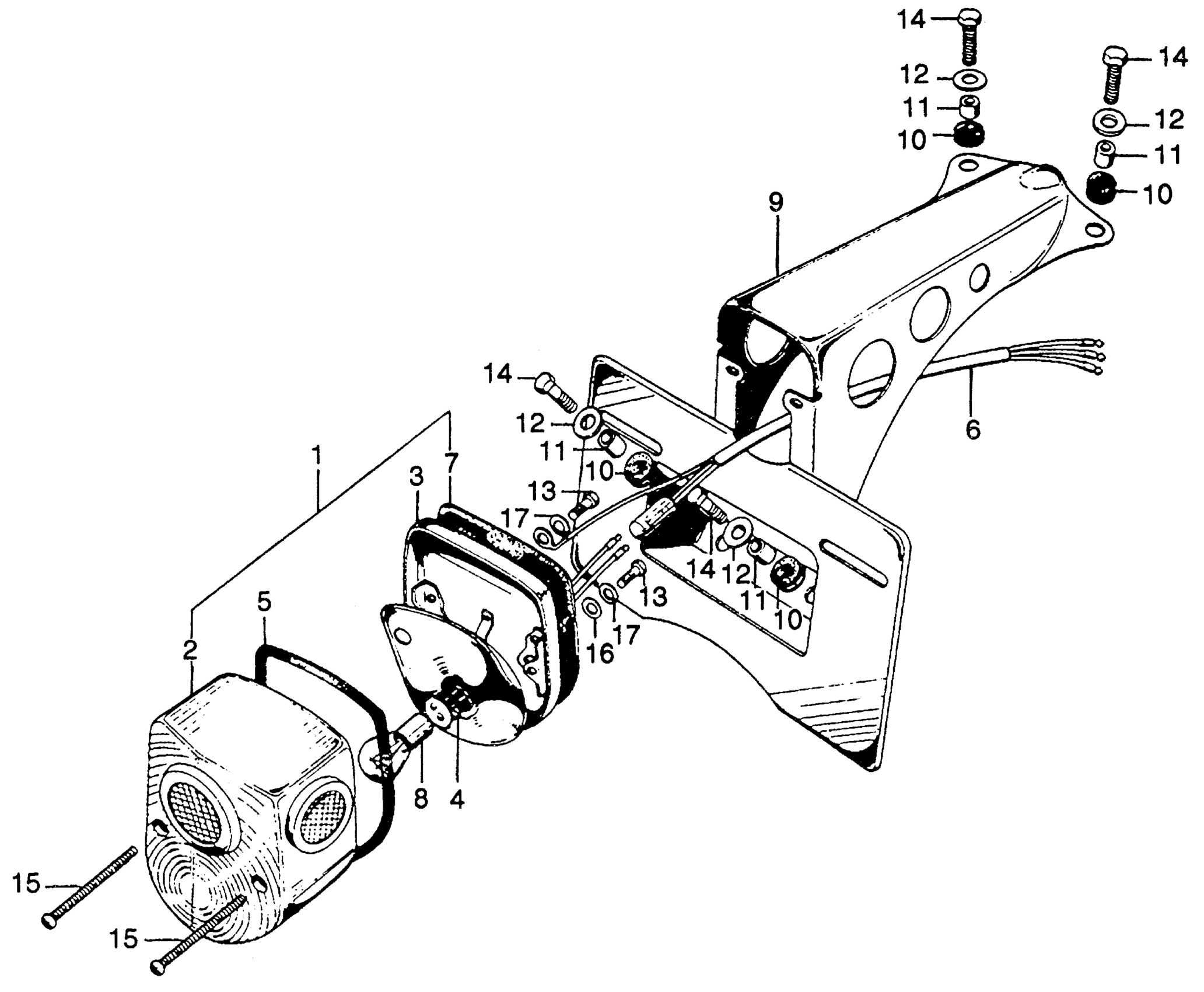

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 TAILLIGHT Diagram

TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33701-074-670.

33700-074-671

Unavailable

LENS, TAILLIGHT

33702-074-671

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33703-074-671

Unavailable

WIRE, TAILLIGHT

33708-077-671

Unavailable

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-074-000

Unavailable

GASKET, TAILLIGHT BASE

33719-074-670

Unavailable

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84700-110-670

Unavailable

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

SCREW, PAN (4X50)

93500-04050-0A

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
