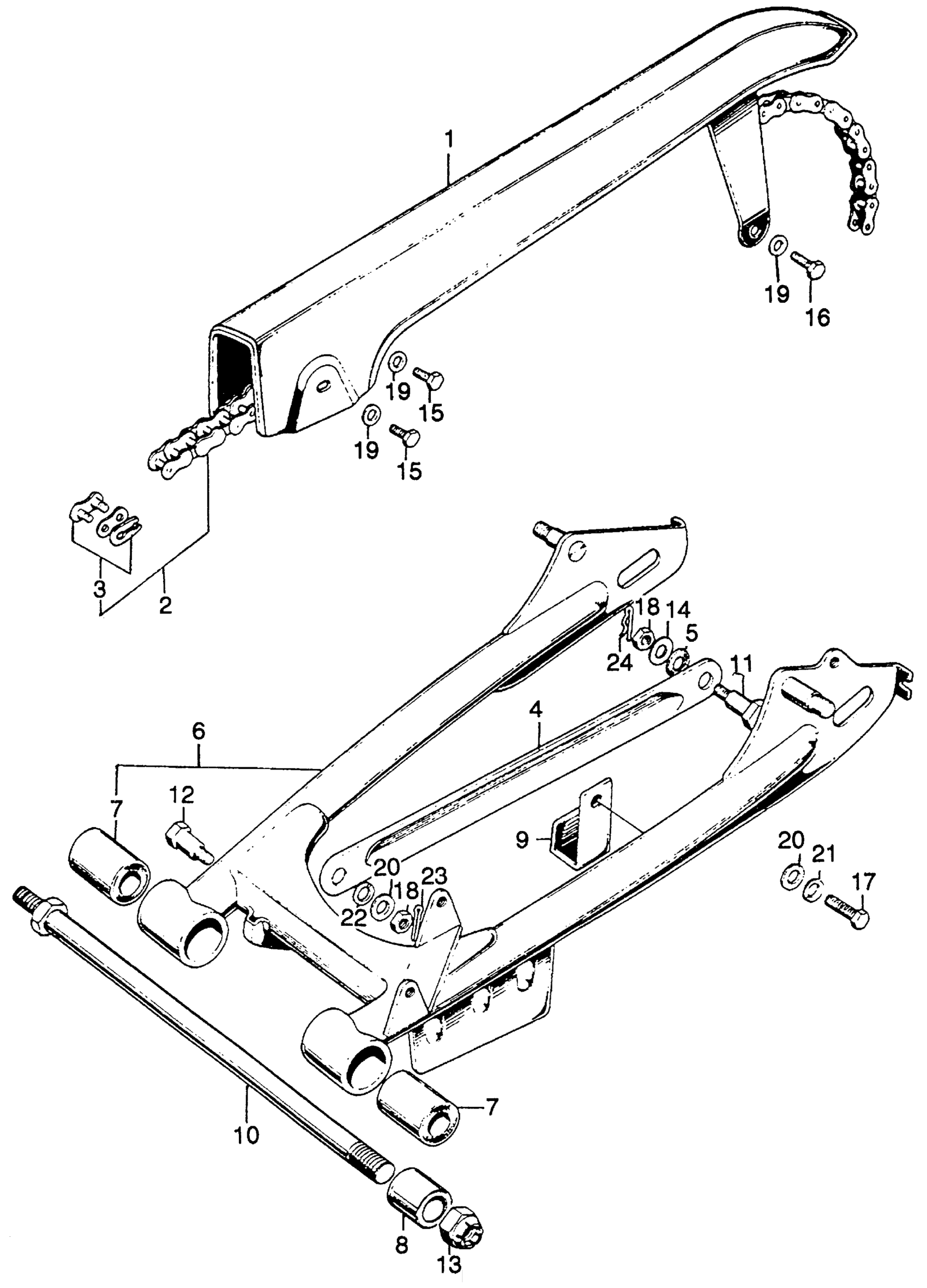

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *MRCR2* (CHROME PLATING)

40510-331-671XW

Unavailable

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 405W3-427-505.

40530-KC2-961

$58.78

2

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-331-671.

40530-KC2-961

$58.78

3

MASTER LINK

40531-237-680

$4.15

3

MASTER LINK (DAIDO) This part replaces 40531-355-003.

40531-355-013

$4.15

3

MASTER LINK (DAIDO)

40531-355-013

$4.15

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-331-670

Unavailable

5

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

6

SWINGARM *NH35* (CLOUD SILVER) (NOT AVAILABLE)

52100-331-671AU

Unavailable

7

BUSH, SWINGARM PIVOT This part replaces 52108-028-000.

52147-028-300

$17.90

7

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

8

COLLAR, RR. SWINGARM PIVOT BOLT DISTANCE (NOT AVAILABLE)

52145-331-000

Unavailable

9

GUARD, DRIVE CHAIN (NOT AVAILABLE)

52156-074-000

Unavailable

10

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-331-000

Unavailable

11

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

11

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

12

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

13

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

15

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

15

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

15

BOLT, HEX. (6X6)

92101-06006-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

17

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49

23

PIN, COTTER (2.0X15)

94201-20150

$1.49

24

PIN, LOCK (8MM)

94251-08000

$1.49
