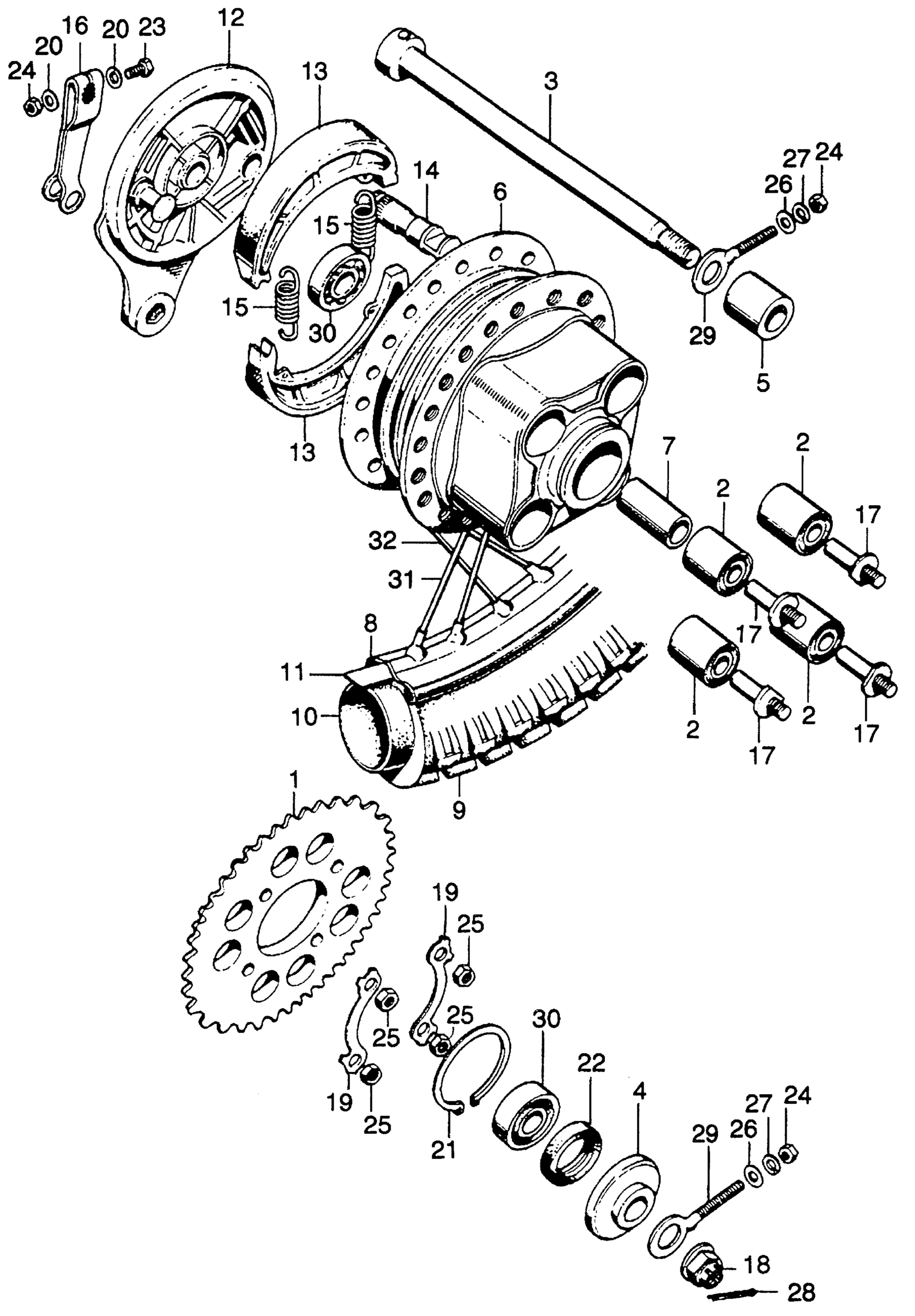

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE)

41201-331-670

Unavailable

2

BUSH, RR. WHEEL DAMPER

41241-222-000

$16.64

2

BUSH, RR. WHEEL DAMPER This part replaces 41241-307-000.

41241-222-000

$16.64

3

AXLE, RR. WHEEL (USED AS FR. FOR THIS BLOCK) This part replaces 42301-107-020.

42301-401-680

Unavailable

3

AXLE, RR. WHEEL

42301-401-680

Unavailable

4

COLLAR, RR. WHEEL SIDE

42304-107-000

Unavailable

5

COLLAR, RR. BRAKE PANEL SIDE

42313-074-010

Unavailable

6

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-110-770.

42610-110-790

Unavailable

6

HUB, RR. WHEEL (NOT AVAILABLE)

42610-110-790

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

8

RIM, RR. WHEEL

42701-314-405

Unavailable

8

RIM, RR. WHEEL This part replaces 42701-331-671.

42701-314-405

Unavailable

8

RIM, RR. WHEEL This part replaces 42701-382-791.

42701-314-405

Unavailable

8

RIM, RR. WHEEL This part replaces 42701-437-003.

42701-314-405

Unavailable

9

TIRE, RR. (3.25-18) (NITTO) (NOT AVAILABLE)

42711-331-671

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

10

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

10

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

11

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-000.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-003.

42713-304-003

$6.69

11

FLAP, TIRE (1.40/1.60-18) (BS)

42713-304-003

$6.69

12

PANEL, RR. BRAKE

43100-110-000

Unavailable

13

SHOE SET, BRAKE (ASK) This part replaces 43120-331-670.

06430-GBJ-J10

$29.23

13

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

13

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

14

CAM, RR. BRAKE

43141-107-010

Unavailable

15

SPRING, BRAKE SHOE

43151-110-000

$2.92

16

ARM, RR. BRAKE This part replaces 43410-028-030.

43410-041-020

Unavailable

16

ARM, RR. BRAKE

43410-041-020

Unavailable

17

BOLT, DRIVEN SPROCKET FIXING

90128-216-000

$5.66

18

NUT, AXLE (14MM) This part replaces 90305-107-010.

90305-401-680

$11.65

18

NUT, AXLE (14MM)

90305-401-680

$11.65

19

WASHER A3, TONGUED This part replaces 90522-222-000.

94108-13000

$1.49

19

WASHER A3, TONGUED This part replaces 90523-222-000.

94108-13000

$1.49

19

WASHER A3, TONGUED

94108-13000

$1.49

20

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

21

CIRCLIP (58MM)

90664-216-000

$5.55

22

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

22

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

23

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

23

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

23

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (8MM)

94031-08000

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

28

PIN, COTTER (3.0X45)

94201-30450

$1.49

29

ADJUSTER C, R. CHAIN

95014-12100

$5.54

30

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99

31

SPOKE B (9X171.5)

97337-52183-10

$4.16

32

SPOKE B (9X171)

97547-52182-10

Unavailable
