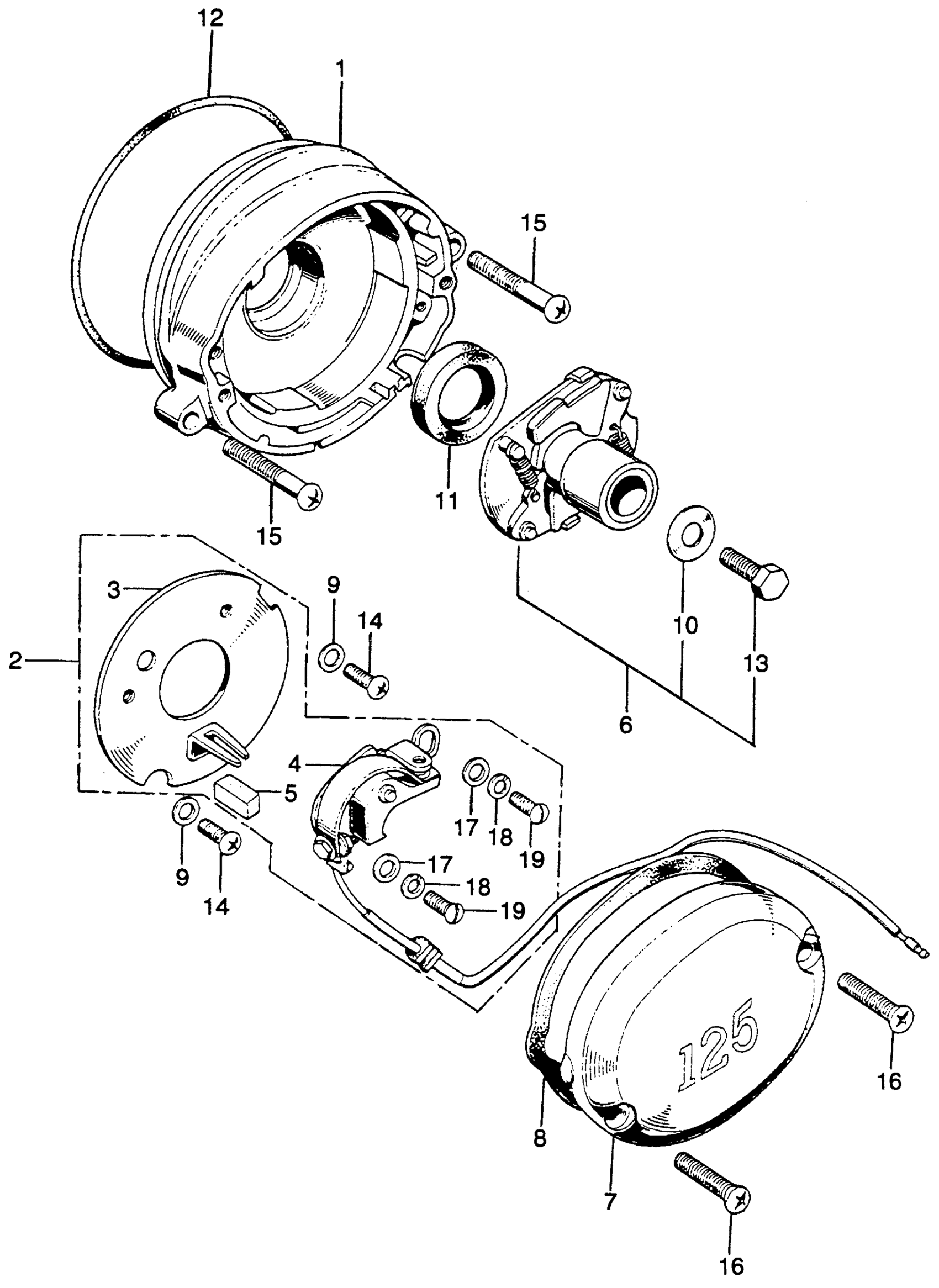

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 POINTS + SPARK ADVANCER Diagram

#

Description
Price

1

BASE, POINTS

12332-324-000

Unavailable

2

POINTS ASSY. (DENSO)

30200-107-014

$58.62

3

PLATE, POINTS BASE (DENSO)

30201-107-004

Unavailable

4

POINTS (DENSO)

30202-107-004

$43.04

4

POINTS (TOYO)

30202-107-154

$27.89

5

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

6

ADVANCER ASSY., SPARK (DENSO)

30220-107-004

Unavailable

7

COVER, POINTS

30370-107-000

Unavailable

8

GASKET, POINTS COVER This part replaces 30372-107-000.

30372-107-307

Unavailable

8

GASKET, POINTS COVER

30372-107-307

Unavailable

9

WASHER (5MM)

90482-028-000

$2.09

10

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

11

OIL SEAL (15X25X7) This part replaces 91202-107-000.

91203-965-003

$6.41

11

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

11

OIL SEAL (15X25X7)

91203-965-003

$6.41

12

O-RING (75X2.5)

91301-107-000

$4.87

13

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

13

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

14

SCREW, PAN (5X12)

93500-05012-0A

$1.49

15

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

16

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

17

WASHER, PLAIN (4MM)

94101-04000

$1.49

18

WASHER, SPRING (4MM)

94111-04000

$1.49

19

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$1.49

19

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$1.49
