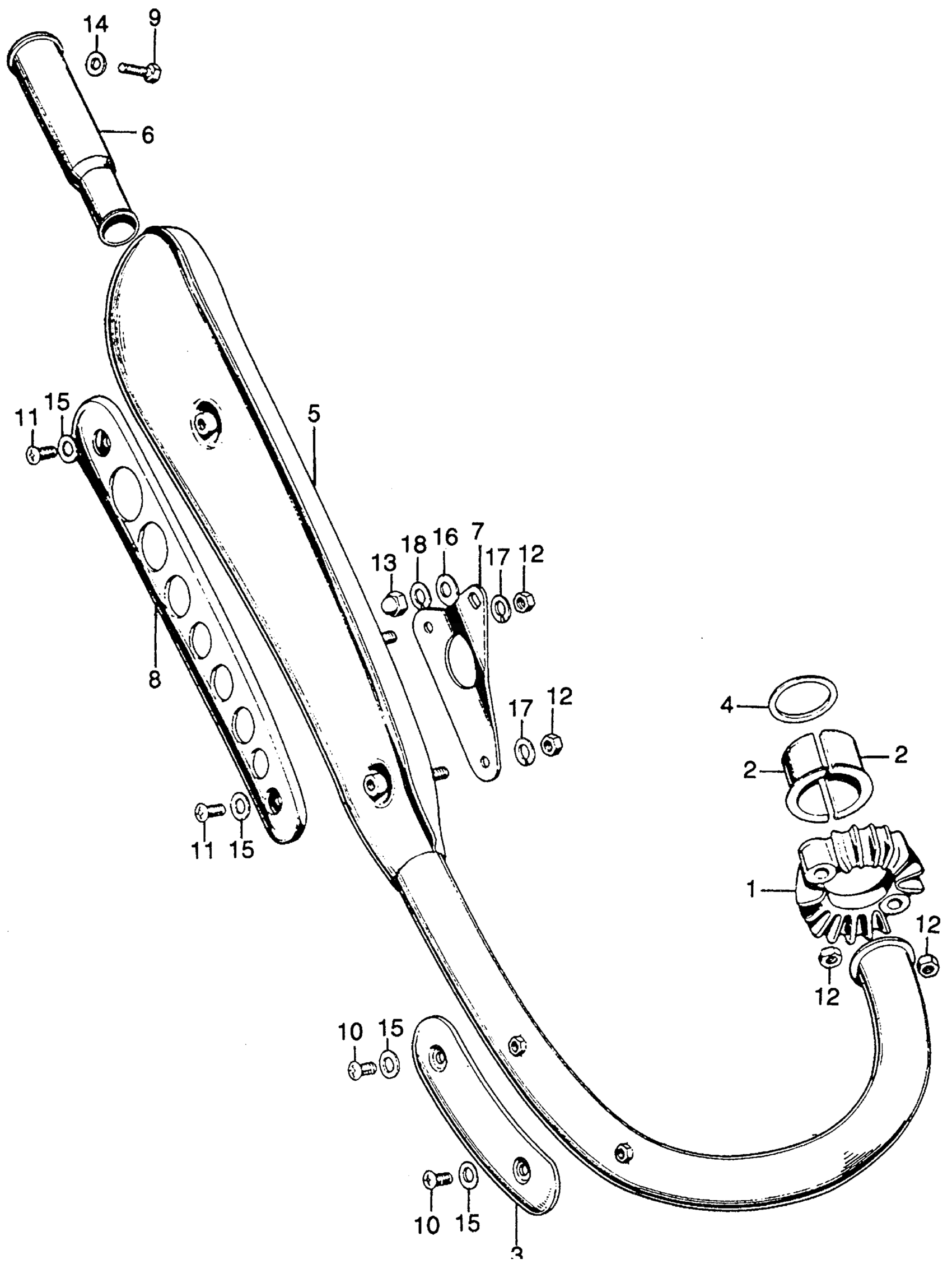

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE This part replaces 18231-303-000.

18231-333-010

Unavailable

1

JOINT, EX. PIPE

18231-333-010

Unavailable

2

COLLAR, EX. JOINT

18233-107-000

$6.36

3

PROTECTOR, EX. PIPE

18240-110-671

Unavailable

4

GASKET, EX. PIPE

18291-MN5-650

$3.77

4

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

5

MUFFLER, EX. (NOT AVAILABLE)

183A0-331-671

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-331-671.

183A0-331-671

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-331-677.

183A0-331-671

Unavailable

6

PIPE, EX. DIFFUSER

18311-077-020

$26.81

7

BRACKET, MUFFLER *A1* (SEMI GLAZED BLACK) This part replaces 18353-110-671B.

18353-331-770SG

Unavailable

7

BRACKET, MUFFLER *A1* (SEMI GLAZED BLACK)

18353-331-770SG

Unavailable

8

PROTECTOR, MUFFLER (NOT AVAILABLE) This part replaces 18361-110-671.

18361-331-771

Unavailable

8

PROTECTOR, MUFFLER (NOT AVAILABLE) This part replaces 18361-331-770.

18361-331-771

Unavailable

8

PROTECTOR, MUFFLER (NOT AVAILABLE)

18361-331-771

Unavailable

9

BOLT, HEX. (5X20) (NOT AVAILABLE)

92000-05020-4J

Unavailable

10

SCREW, PAN (6X5) (SOURCE: VINTAGE PARTS INC.)

93500-06005

Unavailable

11

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

11

SCREW, PAN (6X8)

93500-06008

$1.49

11

SCREW, PAN (6X8)

93500-06008-0A

$1.49

11

SCREW, PAN (6X8)

93500-06008-0H

$1.49

11

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

NUT, CAP (8MM)

94021-08000-0S

$1.55

14

WASHER, PLAIN (5MM)

94101-05000

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
