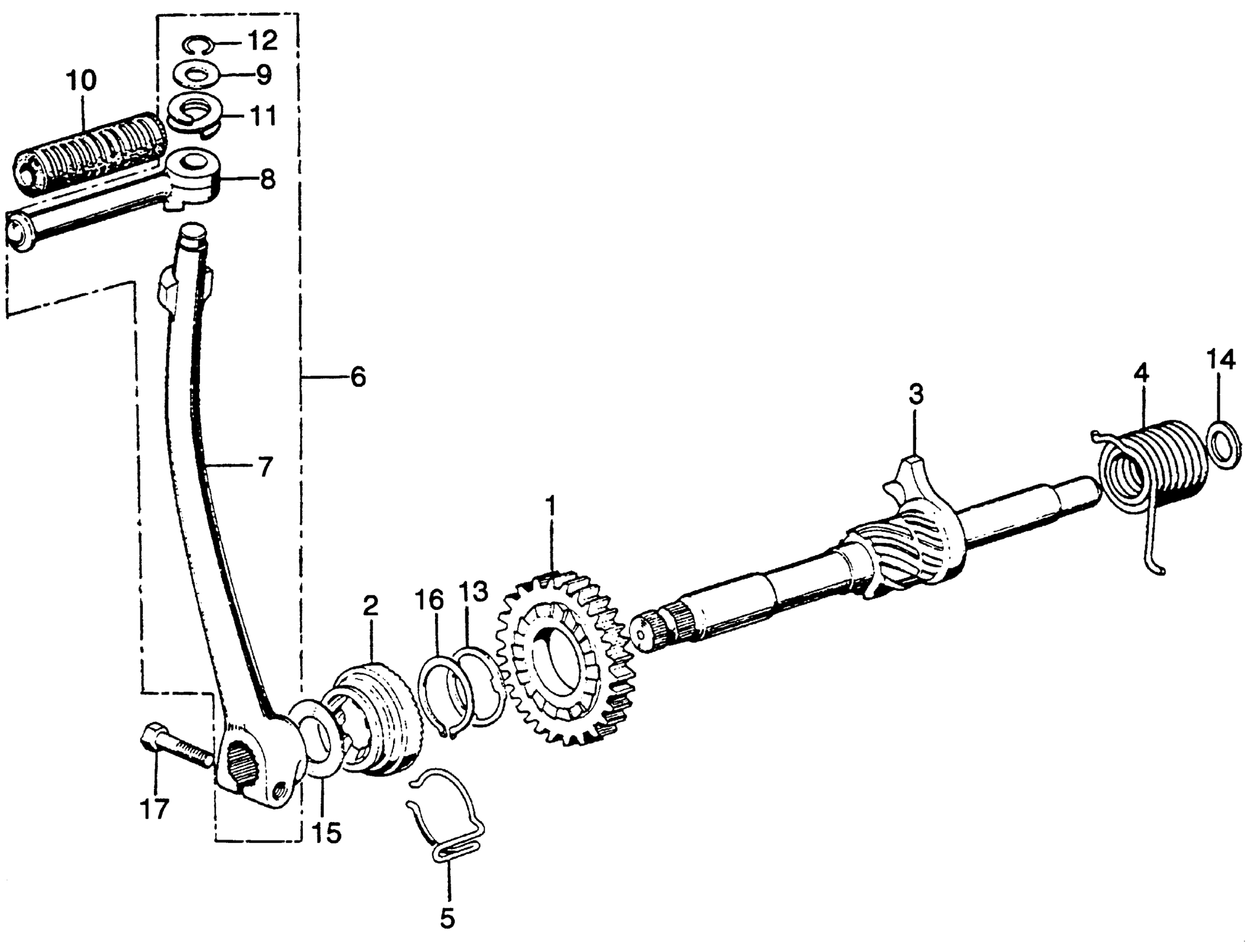

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 KICK STARTER Diagram

PINION, KICK STARTER (30T)

28211-107-000

Unavailable

PINION, KICK STARTER (29T)

28211-383-000

Unavailable

RATCHET, KICK STARTER DRIVE

28221-107-010

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-107-010.

28250-107-303

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use from Engine SN 1018052 This part replaces 28250-107-020.

28250-365-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-107-303

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use from Engine SN 1018052 This part replaces 28250-355-000.

28250-365-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use from Engine SN 1018052

28250-365-000

Unavailable

SPRING, KICK STARTER

28261-107-000

Unavailable

SPRING, STARTER PINION FRICTION (NOT AVAILABLE)

28271-107-000

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1018051

28300-331-670

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE) | Use from Engine SN 1018052

28300-331-671

Unavailable

ARM, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1018051

28301-331-670

Unavailable

ARM, KICK STARTER | Use from Engine SN 1018052

28301-331-671

Unavailable

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

PEDAL, KICK STARTER

28302-126-770

Unavailable

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

RUBBER A, KICK STARTER This part replaces 28311-001-000.

95011-51000

$3.69

RUBBER A, KICK STARTER

95011-51000

$3.69

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

WASHER, THRUST (25MM) (NOT AVAILABLE)

90458-107-000

Unavailable

WASHER, THRUST (12MM)

90459-107-000

$1.49

WASHER, THRUST (16MM)

90462-107-000

$2.11

CIRCLIP (25MM)

90601-107-000

$3.74

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49
