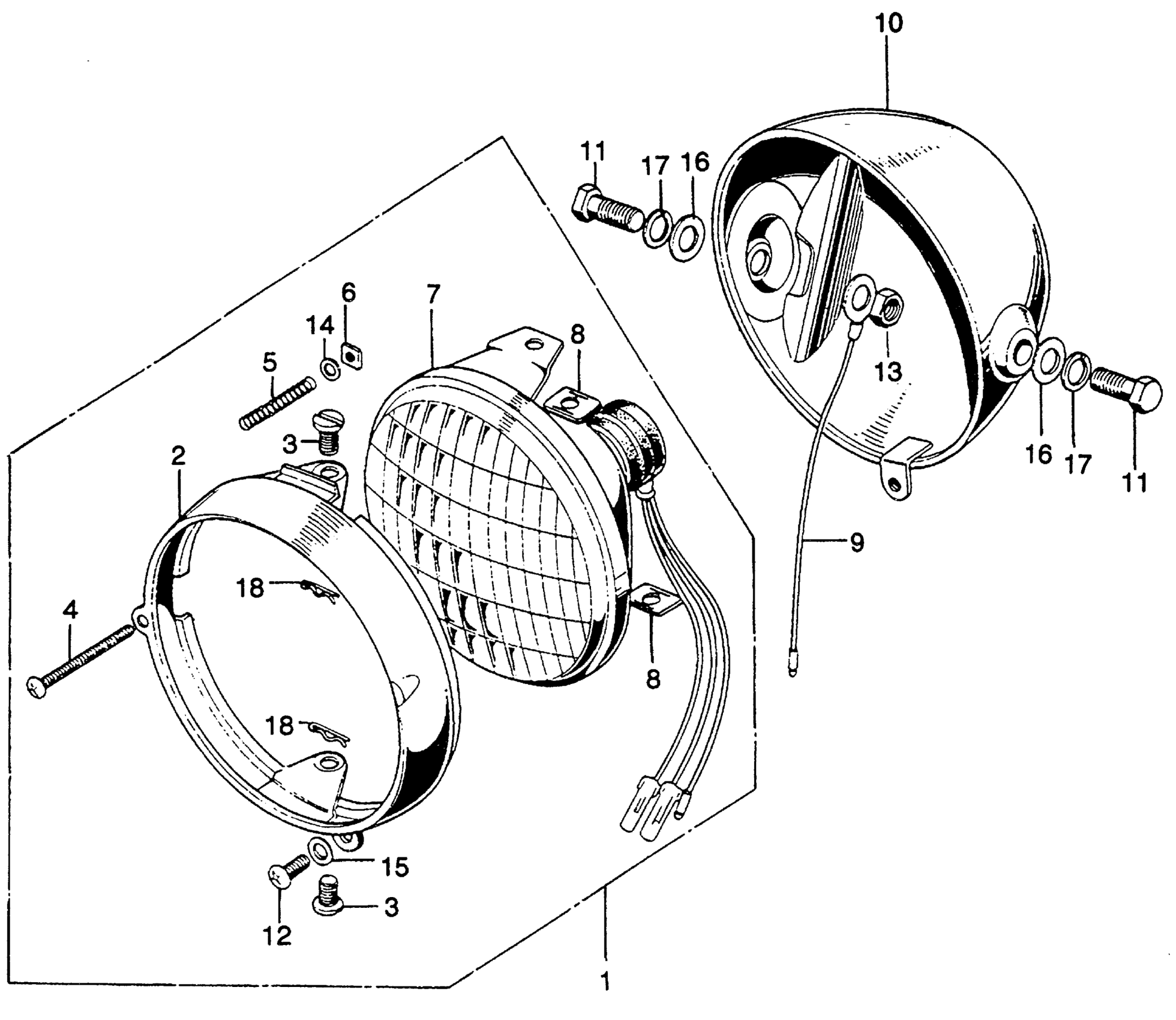

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 HEADLIGHT + HEADLIGHT CASE Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33100-243-670.

33100-243-672

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-243-672

Unavailable

2

RIM, HEADLIGHT

33101-243-670

$33.52

3

SCREW, UNIT HOLDER (NOT AVAILABLE)

33102-283-000

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ.

33103-200-020

Unavailable

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

6

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

7

HEADLIGHT UNIT (6V35/25W) This part replaces 33120-243-670.

33120-243-672

$62.34

7

HEADLIGHT UNIT (6V35/25W)

33120-243-672

$62.34

8

NUT, UNIT HOLDER

33128-200-033

Unavailable

9

WIRE, TURN SIGNAL GROUND (NOT AVAILABLE)

33710-331-000

Unavailable

10

CASE, HEADLIGHT *G2C* (CANDY EMERALD GREEN) (NOT AVAILABLE)

61301-331-010DF

Unavailable

10

CASE, HEADLIGHT *PB12M* (STRATO BLUE METALLIC) (NOT AVAILABLE)

61301-331-010FB

Unavailable

10

CASE, HEADLIGHT *Y2M* (POPPY YELLOW METALLIC) (NOT AVAILABLE)

61301-331-010FS

Unavailable

10

CASE, HEADLIGHT

61301-331-010Z

Unavailable

11

BOLT, HEX. (8X16) This part replaces 92000-08016-0B.

92101-08016-0B

$2.11

11

BOLT, HEX. (8X16)

92101-08016-0B

$2.11

12

SCREW, PAN (5X12)

93500-05012-0A

$1.49

13

NUT, HEX. (8MM)

94030-08000

$1.49

14

WASHER, PLAIN (4MM)

94101-04000

$1.49

15

WASHER, PLAIN (5MM)

94101-05000

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

PIN, LOCK (5MM)

94251-05000

$1.49
