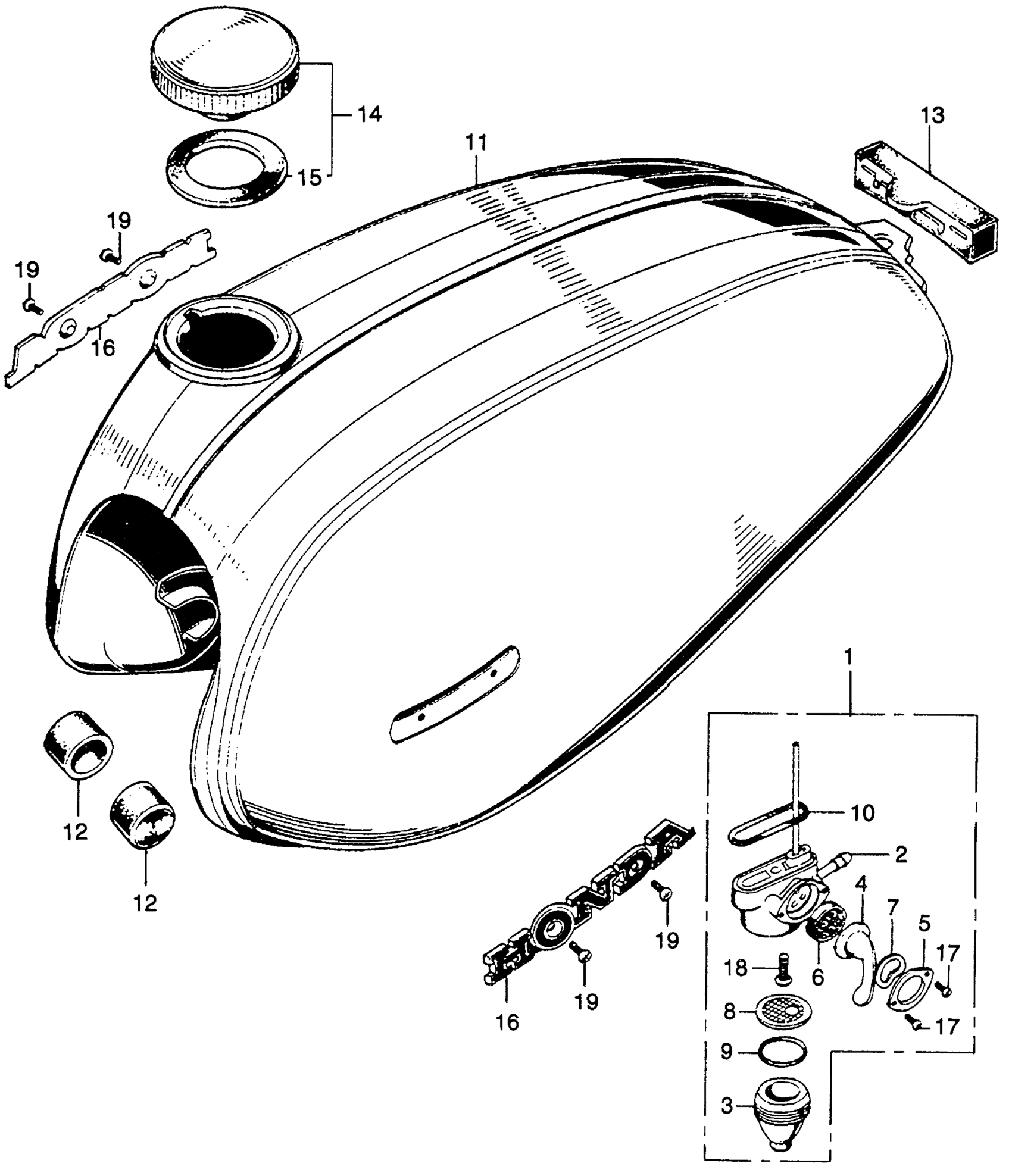

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-107-005

$51.34

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-107-000

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

LEVER, PETCOCK

16953-028-004

Unavailable

5

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$2.93

6

GASKET, VALVE

16957-ZE1-812

$2.93

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.06

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.06

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.06

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.06

8

SCREEN, FUEL STRAINER

16957-028-000

$14.91

9

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

9

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.47

9

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.47

9

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.47

10

GASKET, PETCOCK BODY

16997-273-006

Unavailable

11

TANK, FUEL *G2C/NH1* (CANDY EMERALD GREEN & BLACK) (NOT AVAILABLE)

17500-110-700JF

Unavailable

11

TANK, FUEL *PB12M/NH1* (STRATO BLUE METALLIC/BLACK) (NOT AVAILABLE)

17500-110-700JG

Unavailable

11

TANK, FUEL *Y2M/NH1* (POPPY YELLOW METALLIC &BLACK) (NOT AVAILABLE)

17500-110-700JH

Unavailable

12

RUBBER, FR. FUEL TANK

17611-331-000

$3.76

13

RUBBER, RR. FUEL TANK

17613-051-010

$9.00

14

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

Unavailable

15

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

Unavailable

15

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

Unavailable

15

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

Unavailable

16

EMBLEM B, FUEL TANK (NOT AVAILABLE)

87123-331-670

Unavailable

17

SCREW, PAN (3X6)

93500-03006-0A

$0.84

18

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.06

18

SCREW, PAN (6X16)

93500-06016-0A

$1.06

19

SCREW, OVAL (3X6)

93700-03006-0B

$1.31
