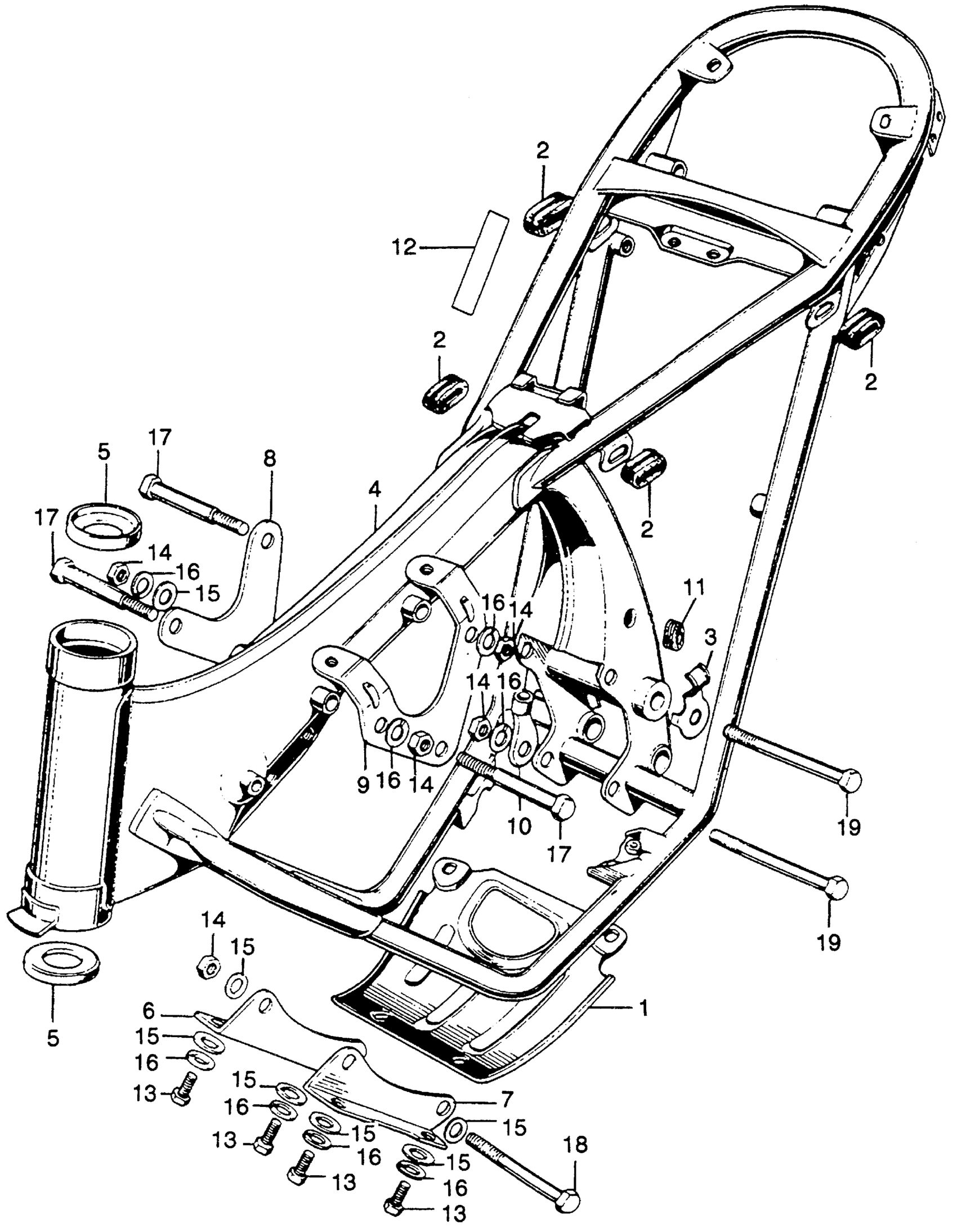

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 FRAME Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-331-670

Unavailable

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

4

FRAME *NH35* (CLOUD SILVER) | Use up to Frame SN 1037302 This part replaces 50100-331-671AU.

50100-331-771AU

Unavailable

4

FRAME *NH35* (CLOUD SILVER) | Use up to Frame SN 1037302

50100-331-771AU

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING TOP BALL

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

6

PLATE, R. ENGINE HANGER *NH35* (CLOUD SILVER)

50351-110-030AU

Unavailable

6

PLATE, L. ENGINE HANGER (NOT AVAILABLE)

50351-110-030Z

Unavailable

7

PLATE, L. ENGINE HANGER *NH35* (CLOUD SILVER)

50352-110-030AU

Unavailable

7

PLATE, R. ENGINE HANGER (NOT AVAILABLE)

50352-110-030Z

Unavailable

8

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

9

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE) This part replaces 50354-107-010.

50354-330-000

Unavailable

9

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-330-000

Unavailable

10

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-107-000

Unavailable

11

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

12

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

12

LABEL, MUFFLER CAUTION This part replaces 87506-045-000.

87504-028-670

$2.92

13

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

13

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

14

NUT, HEX. (8MM)

94030-08000

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49

17

BOLT, HEX. (8X70) This part replaces 95300-08070.

95301-08070-00

$2.47

17

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

18

BOLT, HEX. (8X90) (NOT AVAILABLE) This part replaces 95300-08090.

95300-08090-00

Unavailable

18

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

19

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

19

BOLT, HEX. (8X111)

95300-08111-00

$2.92
